April 2026 New Product Lineup

Turning Milling Drilling

May 28, 2026

PVD Coated Carbide Grade for Milling
MP1200 Series Multi-Function Shoulder Milling Cutter
RS0112 Screw-on Insert Type Milling Cutter
ASX300 More New Products

PVD Coated Carbide Grade for Milling
MP1200 Series

Simplify Tool Selection.
A Series of Trusted All-Rounder Grades for a Wide Range of Materials

New multilayer PVD coating improves wear resistance, heat resistance, and adhesion resistance.
High bonding strength with the carbide substrate provides excellent fracture resistance and stable machining.
Suitable for a wide range of materials, including steel, cast iron/ductile cast iron, stainless steel, titanium alloys, and Heat-resistant super alloys.

Features Product Brochure (1.54 MB) New Products Information

Multi-Function Shoulder Milling Cutter
RS0112

Uninterrupted Machining for High Efficiency and Stable Performance

The proprietary V-shaped insert design delivers an exceptional balance between sharpness and edge strength, enabling stable machining over long periods.
A low cutting resistance design contributes to improved machining efficiency.
A high-precision large-radius cutting edge combined with an optimized edge geometry ensures high-quality surface finishes while improving fracture resistance.
A high-rigidity cutter body and a highly reliable clamping system provide stable cutting performance.
Excellent versatility allows for a wide range of applications, including shoulder milling, face milling, and ramping.
The low cutting resistance design and superior fracture resistance enable machining of a wide variety of materials, including alloy steel, stainless steel, cast iron, and titanium alloys.

Features Product Brochure (2.38 MB) New Products Information

Screw-on Insert Type Milling Cutter
ASX300

Stable milling under high-load conditions

Multi-tooth design improves table feed and reduces machining time.
Improved cutting edge design provides high-quality surface finish on walls and faces.
Optimised cutting edge geometry enhances chip evacuation and edge strength.
Controlled load per tooth extends tool life.
Environmentally friendly design reduces environmental impact.

Features Product Brochure (2.90 MB) New Products Information

More New Products

Solid Carbide
TRISTAR Drill Series DVAS

Product Lineup Expansion

Expanded shank diameter variations to match a wider range of machines.
Includes sizes for pilot holes for roll taps.
Provides high precision, long tool life, and process reduction.

Product Brochure (2.61 MB)

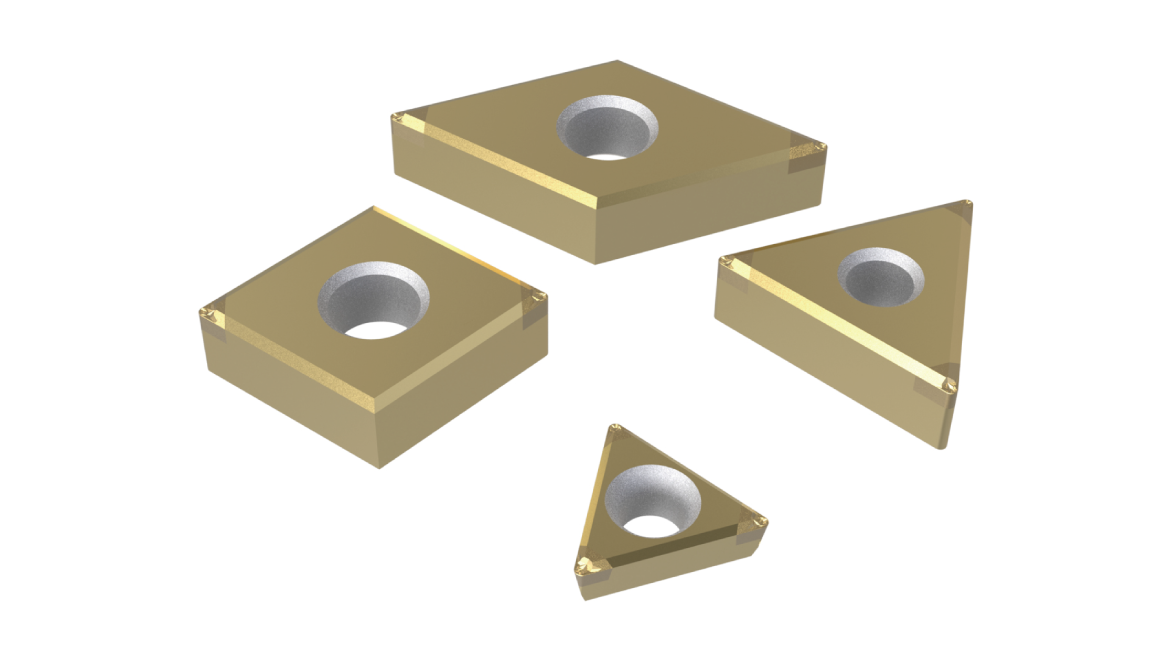

CBN Grade for Turning Hardened Steel
BC8200 Series

Addition of BP chipbreaker

Improves chip control at depths of cut below 0.3 mm.
Enhances stability and productivity when machining hardened materials.

Product Brochure (3.31 MB)

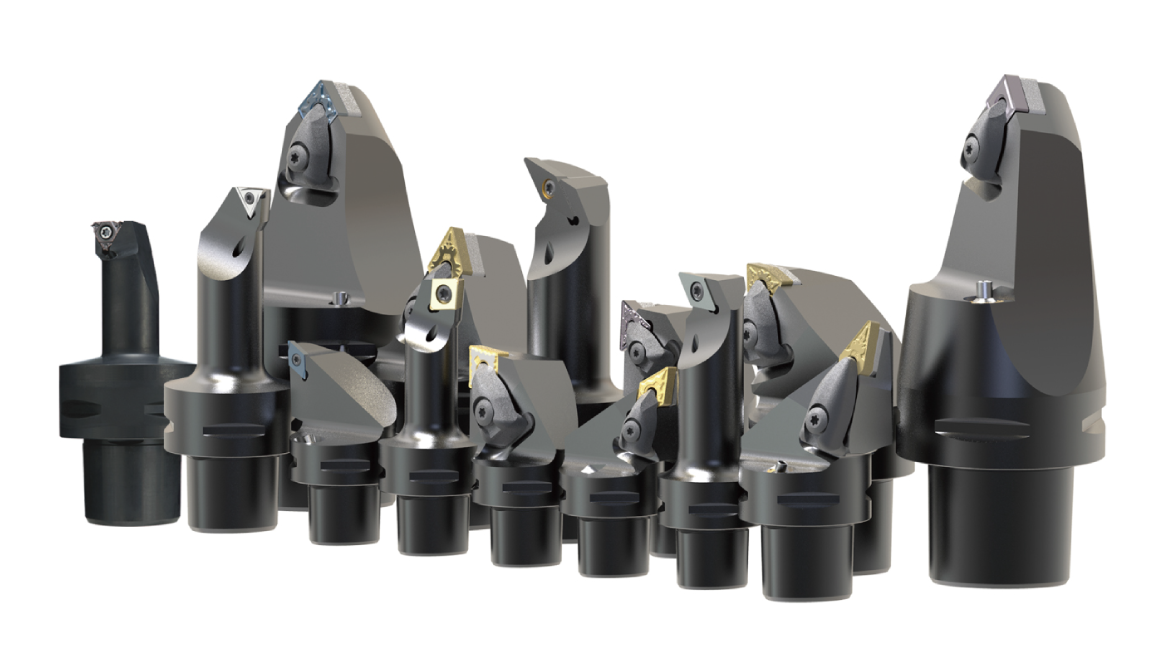

For Multi-Tasking Machines and CNC Lathes
PSC Holders

Expansion to include ISO and MMT threading holders

Achieves high clamping rigidity and repeatability through PSC interface.
Improves setup efficiency by unifying operations under PSC standard.

Product Brochure (1.62 MB)

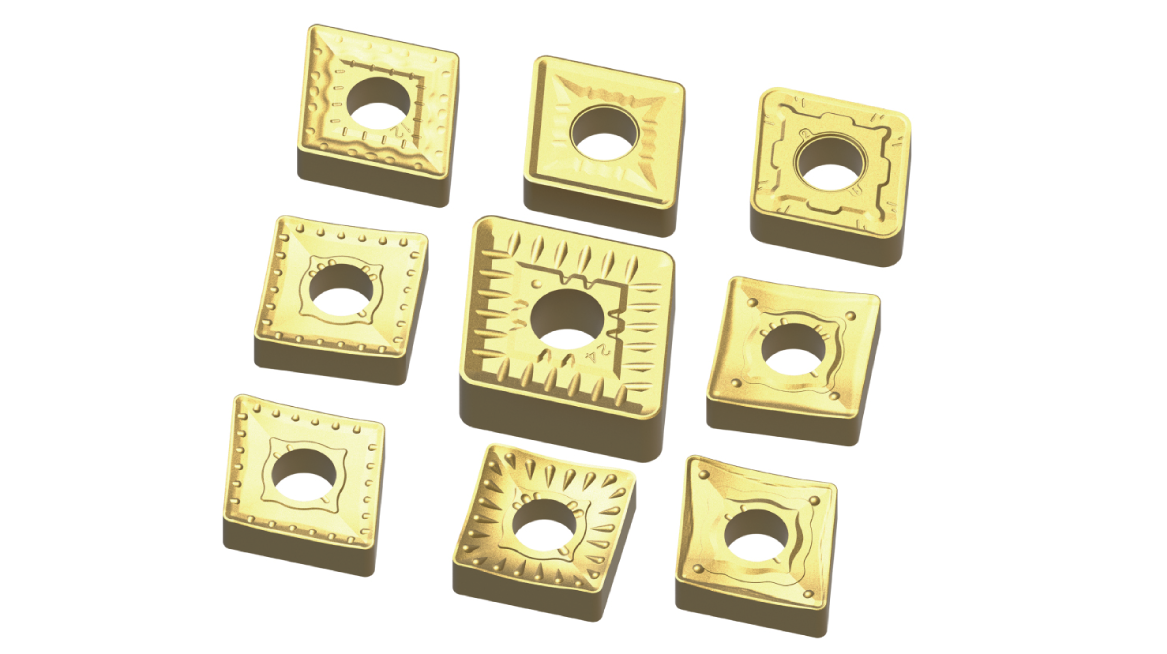

CVD Coated Grade for Steel Turning
MC6100 Series

Expansion of insert lineup

Super Nano Texture and Super TOUGH-Grip technologies enhance wear resistance and coating adhesion.
Improves performance in heavy cutting applications.

Product Brochure (3.42 MB)
