ASX300

Feature

Eco-Friendly Downsized Model

The downsized model features a multi-tooth design that improves table feed, resulting in shorter machining time and reduced power consumption - ultimately helping to lower CO₂ emissions.
In addition, by keeping the cutting load per tooth at an optimal level, tool life can be extended, reducing the overall number of inserts required.

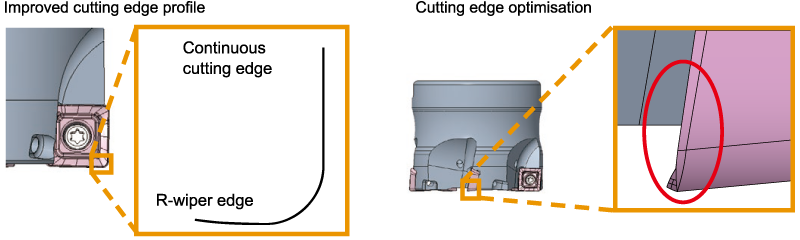

Improved Cutting Edge Ridge

ASX300 inserts have a smooth continuous cutting edge that improves the component surface finish and dimensional accuracy.

Optimised Cutting Edge Geometry

The geometry of the ASX300 optimises the contact with the workpiece. This provides edge strength and improves chip evacuation. The extra edge strength resists damage even under high cutting loads.

Cutting Performance

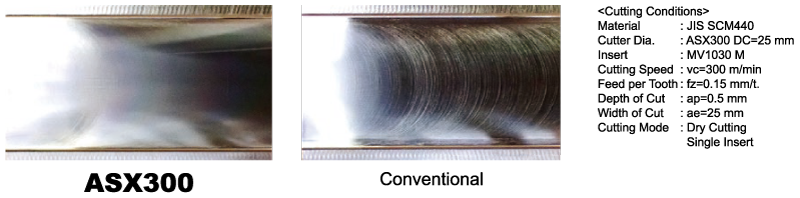

SCM440 finished surface comparison

Achieves a glossy finish without cloudiness.

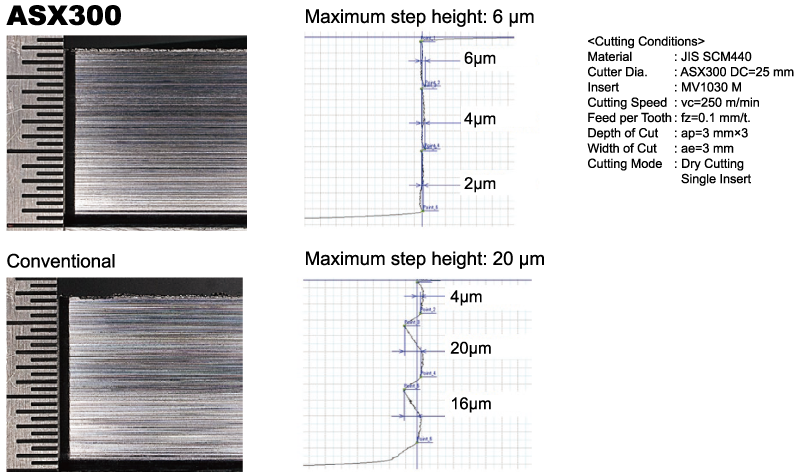

SCM440 : Comparison of wall surface accuracy after shoulder milling

The improved cutting edge ridge reduces cutting steps.

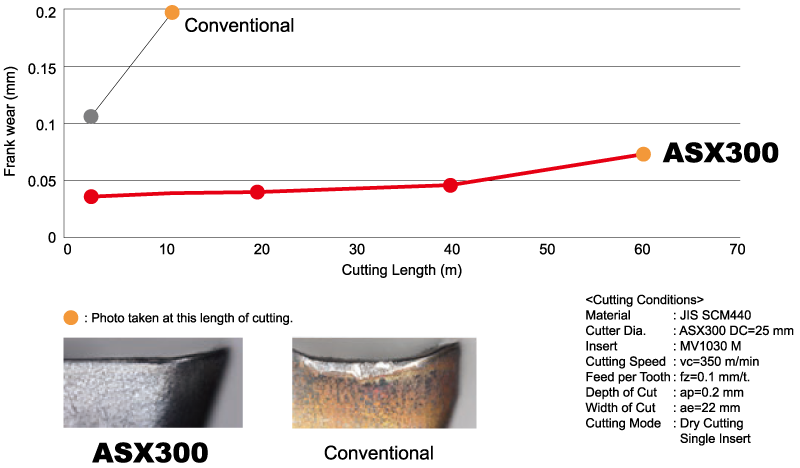

Wear resistance comparison of SCM440

The synergistic effect with grade MV1030 dramatically extends tool life under high-speed cutting conditions.

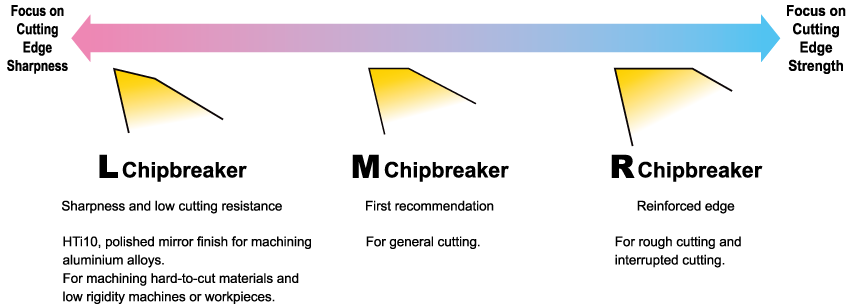

Chipbreaker System
