Rotating Tools
Indexable Milling
Face Milling
AHX640W_INCH
AHX640W_Arbor_II （High Feed Cutting for Cast Iron）
-
-
Type1
-
Type2
-
Type3
-
Type4
AHX640W_Arbor_II
- General Purpose Multi Corner Insert Type Face Milling Cutter
- Heptagonal double-sided insert.
- Economical 14 cutting edge inserts.
- Multi insert design for high feed machining.
※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.
| EDP | Order Number | Type | Stock | qty. | Price | cart | HAND | DC | DCX | LF | DCONMS | CBDP | DAH | DAH1 | DAH2 | DCCB | KWW | L8 | DHUB | KAPR | APMX | DBC | DBC1 | DBC2 | RPMX | CSP | CICT | ZEFP | GAMP | GAMF | WT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 504461 | AHX640WR0308D | Type 1 |
|
8 | $1182.31 | Right Hand | 76.2 | 88.76 | 63.5 | 31.75 | 32 | 17 | - | - | 26 | 12.7 | 7.14 | 73 | 50 ° | 6 | - | - | - | 9200 | - | 8 | 8 | -6 ° | -4 ° | 4.2 kg | ||
| 504997 | AHX640WR0310D | Type 1 |
|
5 | $1479.61 | Right Hand | 76.2 | 88.76 | 63.5 | 31.75 | 32 | 17 | - | - | 26 | 12.7 | 7.14 | 73 | 50 ° | 6 | - | - | - | 9200 | - | 10 | 10 | -6 ° | -4 ° | 4.2 kg | ||
| 504938 | AHX640WR0410E | Type 1 |
|
14 | $1479.61 | Right Hand | 101.6 | 114.16 | 63.5 | 38.1 | 30 | 20 | - | - | 30 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 7700 | - | 10 | 10 | -6 ° | -4 ° | 7.3 kg | ||
| 505009 | AHX640WR0414E | Type 1 |
|
40 | $2067.31 | Right Hand | 101.6 | 114.16 | 63.5 | 38.1 | 30 | 20 | - | - | 30 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 7700 | - | 14 | 14 | -6 ° | -4 ° | 7.3 kg | ||
| 504946 | AHX640WR0512E | Type 2 |
|
17 | $1773.48 | Right Hand | 127 | 139.56 | 63.5 | 38.1 | 35 | - | - | - | 60 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 6500 | - | 12 | 12 | -6 ° | -4 ° | 8.8 kg | ||
| 505017 | AHX640WR0518E | Type 2 |
|
3 | $2655.07 | Right Hand | 127 | 139.56 | 63.5 | 38.1 | 35 | - | - | - | 60 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 6500 | - | 18 | 18 | -6 ° | -4 ° | 8.8 kg | ||
| 504954 | AHX640WR0614F | Type 2 |
|
15 | $2364.63 | Right Hand | 152.4 | 164.96 | 63.5 | 50.8 | 38 | - | - | - | 80 | 19.05 | 11.11 | 120 | 50 ° | 6 | - | - | - | 5500 | - | 14 | 14 | -6 ° | -4 ° | 12.6 kg | ||
| 505025 | AHX640WR0620F | Type 2 |
|
Out of Stock | $3249.68 | Right Hand | 152.4 | 164.96 | 63.5 | 50.8 | 38 | - | - | - | 80 | 19.05 | 11.11 | 120 | 50 ° | 6 | - | - | - | 5500 | - | 20 | 20 | -6 ° | -4 ° | 12.6 kg | ||
| 504962 | AHX640WR0820M | Type 3 |
|
3 | $2955.77 | Right Hand | 203.2 | 215.76 | 63.5 | 63.5 | 35 | 18 | - | - | 140 | 25.4 | 14.22 | 175 | 50 ° | 6 | 101.6 | - | - | 4000 | - | 20 | 20 | -6 ° | -4 ° | 19.6 kg | ||
| 505033 | AHX640WR0828M | Type 3 |
|
12 | $4138.1 | Right Hand | 203.2 | 215.76 | 63.5 | 63.5 | 35 | 18 | - | - | 140 | 25.4 | 14.22 | 175 | 50 ° | 6 | 101.6 | - | - | 4000 | - | 28 | 28 | -6 ° | -4 ° | 19.6 kg | ||
| 504971 | AHX640WR1024M | Type 3 |
|
3 | $3546.92 | Right Hand | 254 | 266.56 | 63.5 | 63.5 | 35 | 18 | - | - | 180 | 25.4 | 14.22 | 220 | 50 ° | 6 | 101.6 | - | - | 2800 | - | 24 | 24 | -6 ° | -4 ° | 32 kg | ||
| 505041 | AHX640WR1036M | Type 3 |
|
4 | $5317 | Right Hand | 254 | 266.56 | 63.5 | 63.5 | 35 | 18 | - | - | 180 | 25.4 | 14.22 | 220 | 50 ° | 6 | 101.6 | - | - | 2800 | - | 36 | 36 | -6 ° | -4 ° | 32 kg | ||
| 504989 | AHX640WR1228M | Type 4 |
|
Out of Stock | $4138.1 | Right Hand | 304.8 | 317.36 | 63.5 | 63.5 | 40 | - | 18 | 22 | 245 | 25.4 | 14.22 | 285 | 50 ° | 6 | - | 101.6 | 177.8 | 1900 | - | 28 | 28 | -6 ° | -4 ° | 49.2 kg | ||
| 505050 | AHX640WR1242M | Type 4 |
|
3 | $6499.32 | Right Hand | 304.8 | 317.36 | 63.5 | 63.5 | 40 | - | 18 | 22 | 245 | 25.4 | 14.22 | 285 | 50 ° | 6 | - | 101.6 | 177.8 | 1900 | - | 42 | 42 | -6 ° | -4 ° | 49.2 kg | ||

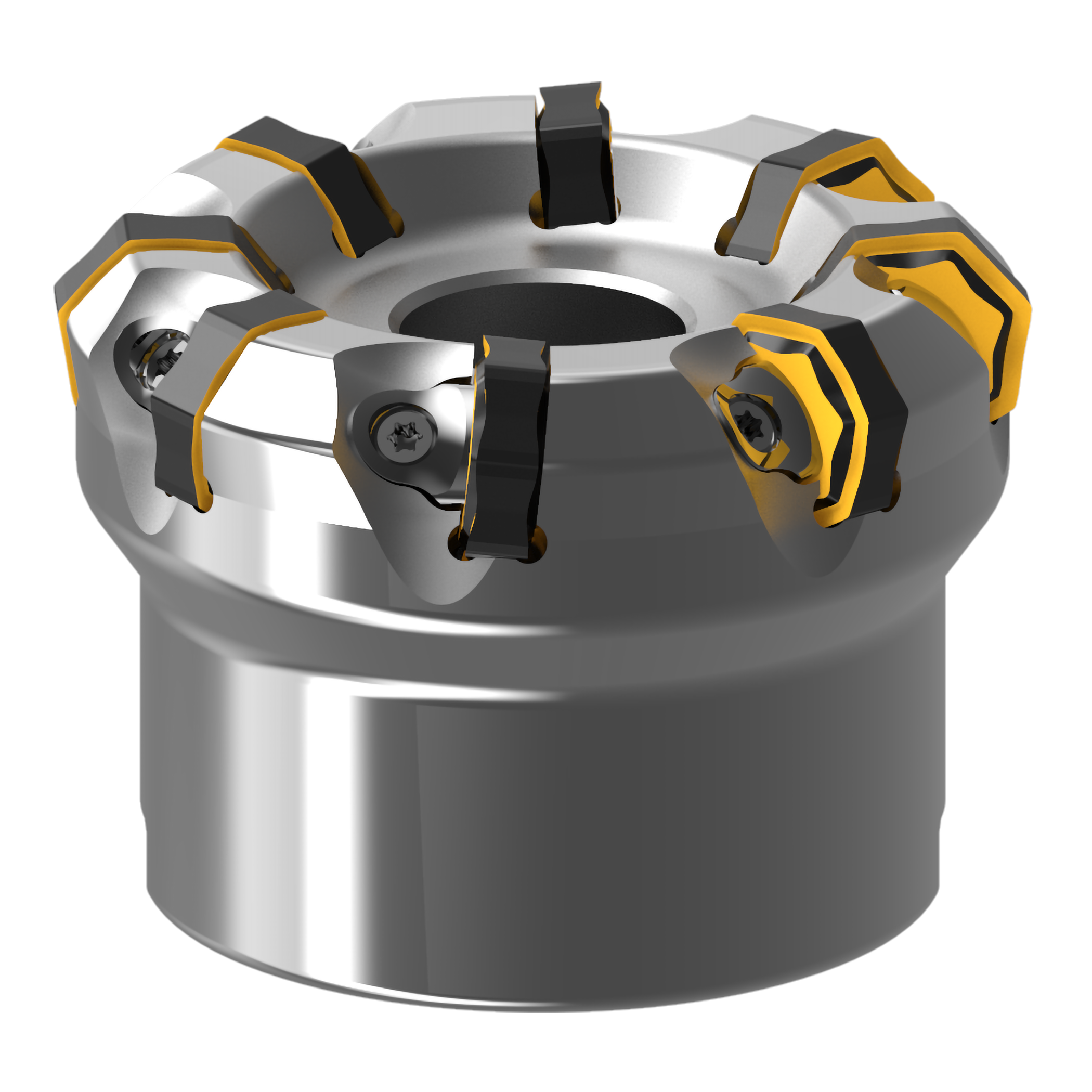

| 504479 | AHX640WL0308D | Type 1 |
|
Out of Stock | Left Hand | 76.2 | 88.76 | 63.5 | 31.75 | 32 | 17 | - | - | 26 | 12.7 | 7.14 | 73 | 50 ° | 6 | - | - | - | 9200 | - | 8 | 8 | -6 ° | -4 ° | 4.2 kg | |||
| 505121 | AHX640WL0310D | Type 1 |
|
Out of Stock | Left Hand | 76.2 | 88.76 | 63.5 | 31.75 | 32 | 17 | - | - | 26 | 12.7 | 7.14 | 73 | 50 ° | 6 | - | - | - | 9200 | - | 10 | 10 | -6 ° | -4 ° | 4.2 kg | |||
| 505068 | AHX640WL0410E | Type 1 |
|
Out of Stock | Left Hand | 101.6 | 114.16 | 63.5 | 38.1 | 30 | 20 | - | - | 30 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 7700 | - | 10 | 10 | -6 ° | -4 ° | 7.3 kg | |||
| 505130 | AHX640WL0414E | Type 1 |
|
Out of Stock | Left Hand | 101.6 | 114.16 | 63.5 | 38.1 | 30 | 20 | - | - | 30 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 7700 | - | 14 | 14 | -6 ° | -4 ° | 7.3 kg | |||
| 505076 | AHX640WL0512E | Type 2 |
|
Out of Stock | Left Hand | 127 | 139.56 | 63.5 | 38.1 | 35 | - | - | - | 60 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 6500 | - | 12 | 12 | -6 ° | -4 ° | 8.8 kg | |||
| 505148 | AHX640WL0518E | Type 2 |
|
Out of Stock | Left Hand | 127 | 139.56 | 63.5 | 38.1 | 35 | - | - | - | 60 | 15.875 | 9.525 | 96.5 | 50 ° | 6 | - | - | - | 6500 | - | 18 | 18 | -6 ° | -4 ° | 8.8 kg |
