AHX640W_INCH

AHX640W_Arbor_II （High Feed Cutting for Cast Iron）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_50_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_1_Milling_Accuracy_finishing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg
K

AHX640WL0310D

AHX640WL0310D

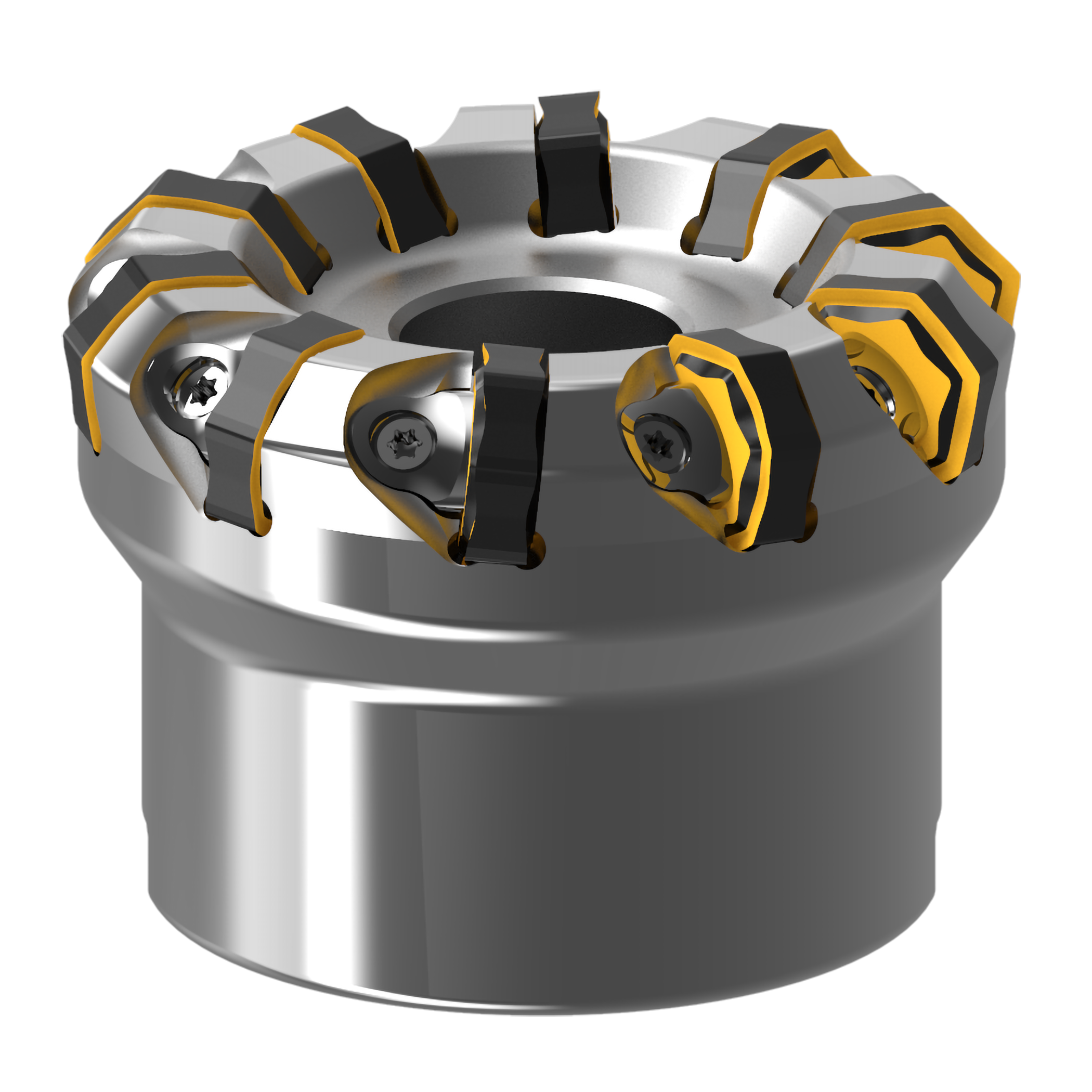

  • General Purpose Multi Corner Insert Type Face Milling Cutter
  • Heptagonal double-sided insert.
  • Economical 14 cutting edge inserts.
  • Multi insert design for high feed machining.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：505121

EAN Code： 4994196540128

ANSI：AHX640WL0310D

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Left Hand
DC
76.2
DCX
88.76
LF
63.5
DCONMS
31.75
CBDP
32
DAH
17
DCCB
26
KWW
12.7
L8
7.14
DHUB
73
KAPR
50°
APMX
6
RPMX
9200
CSP
-
CICT
10
ZEFP
10
GAMP
-6°
GAMF
-4°
WT
4.2 kg
