AHX640W_INCH

AHX640W_Arbor_II （High Feed Cutting for Cast Iron）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_50_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_1_Milling_Accuracy_finishing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg
K

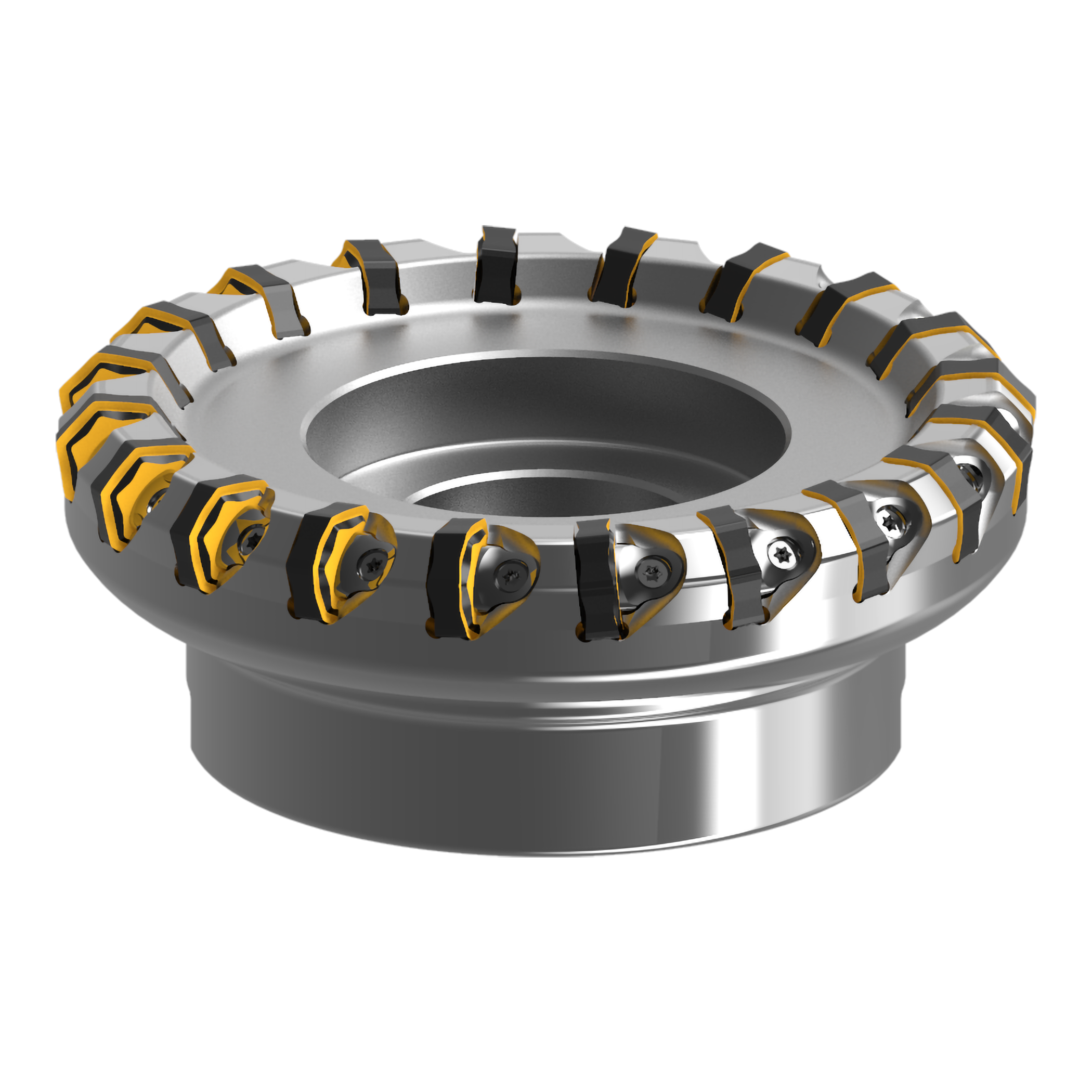

AHX640WR0620F

AHX640WR0620F

  • General Purpose Multi Corner Insert Type Face Milling Cutter
  • Heptagonal double-sided insert.
  • Economical 14 cutting edge inserts.
  • Multi insert design for high feed machining.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：505025

EAN Code： 4994196540609

ANSI：AHX640WR0620F

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
152.4
DCX
164.96
LF
63.5
DCONMS
50.8
CBDP
38
DCCB
80
KWW
19.05
L8
11.11
DHUB
120
KAPR
50°
APMX
6
RPMX
5500
CSP
-
CICT
20
ZEFP
20
GAMP
-6°
GAMF
-4°
WT
12.6 kg
