AHX640WR1024M

AHX640WR1024M

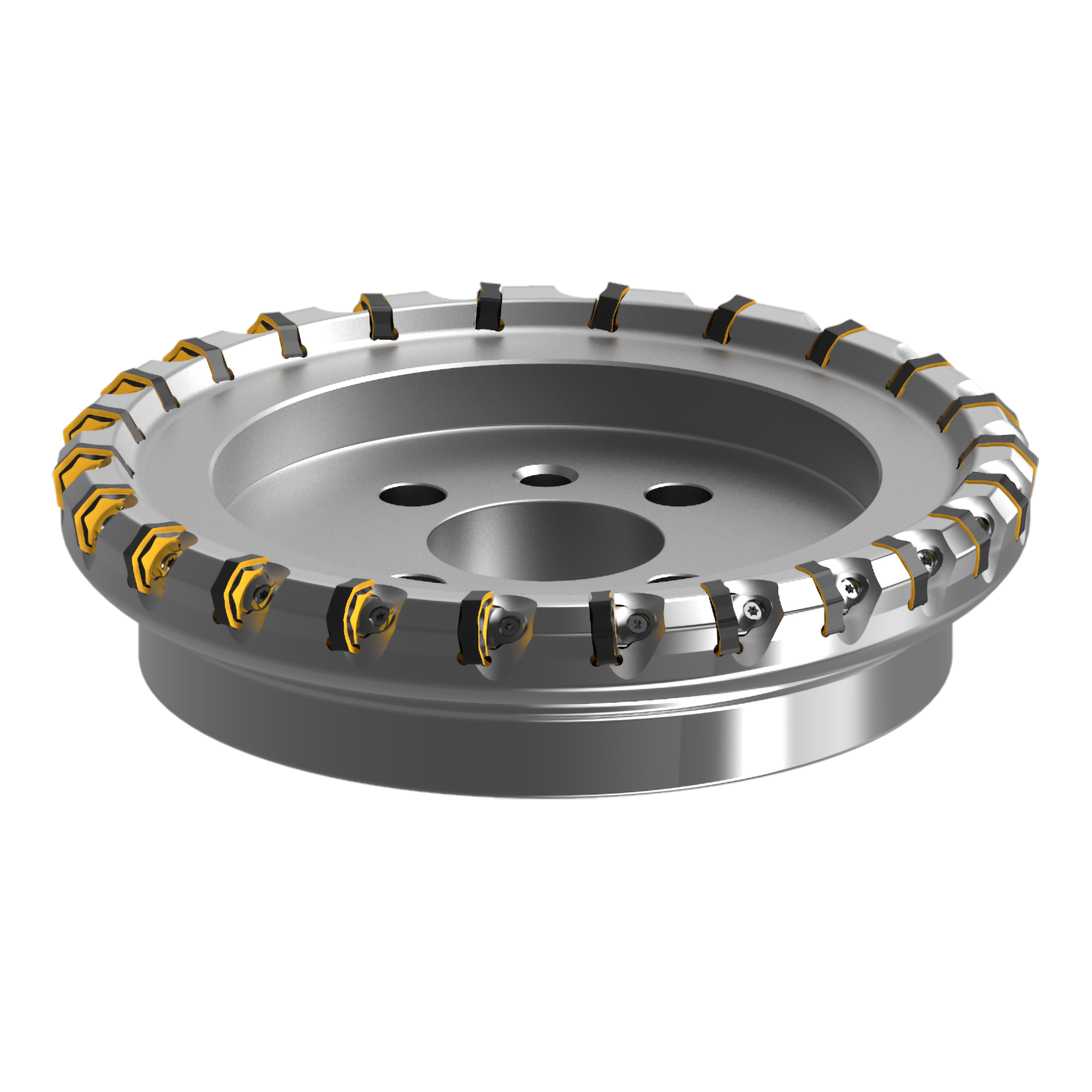

  • General Purpose Multi Corner Insert Type Face Milling Cutter
  • Heptagonal double-sided insert.
  • Economical 14 cutting edge inserts.
  • Multi insert design for high feed machining.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：504971

EAN Code： 4994196541019

ANSI：AHX640WR1024M

Stock：3 pcs

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
254
DCX
266.56
LF
63.5
DCONMS
63.5
CBDP
35
DAH
18
DCCB
180
KWW
25.4
L8
14.22
DHUB
220
KAPR
50°
APMX
6
DBC
101.6
RPMX
2800
CSP
-
CICT
24
ZEFP
24
GAMP
-6°
GAMF
-4°
WT
32 kg
