AHX640WR1228M

AHX640WR1228M

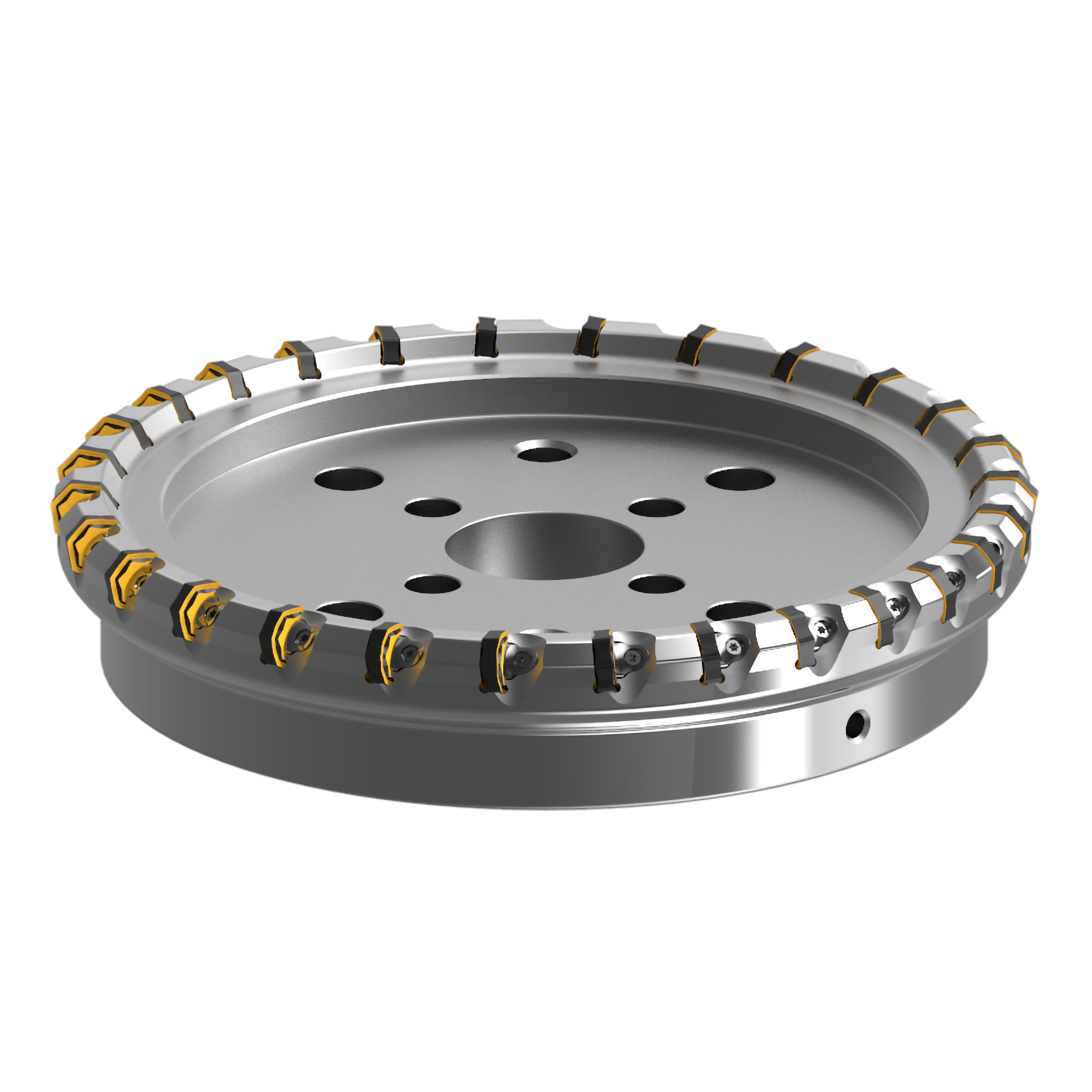

  • General Purpose Multi Corner Insert Type Face Milling Cutter
  • Heptagonal double-sided insert.
  • Economical 14 cutting edge inserts.
  • Multi insert design for high feed machining.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：504989

EAN Code： 4994196541224

ANSI：AHX640WR1228M

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
304.8
DCX
317.36
LF
63.5
DCONMS
63.5
CBDP
40
DAH1
18
DAH2
22
DCCB
245
KWW
25.4
L8
14.22
DHUB
285
KAPR
50°
APMX
6
DBC1
101.6
DBC2
177.8
RPMX
1900
CSP
-
CICT
28
ZEFP
28
GAMP
-6°
GAMF
-4°
WT
49.2 kg
