AHX640W_INCH

AHX640W_Arbor_II （High Feed Cutting for Cast Iron）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_50_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_1_Milling_Accuracy_finishing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg
K

AHX640WL0414E

AHX640WL0414E

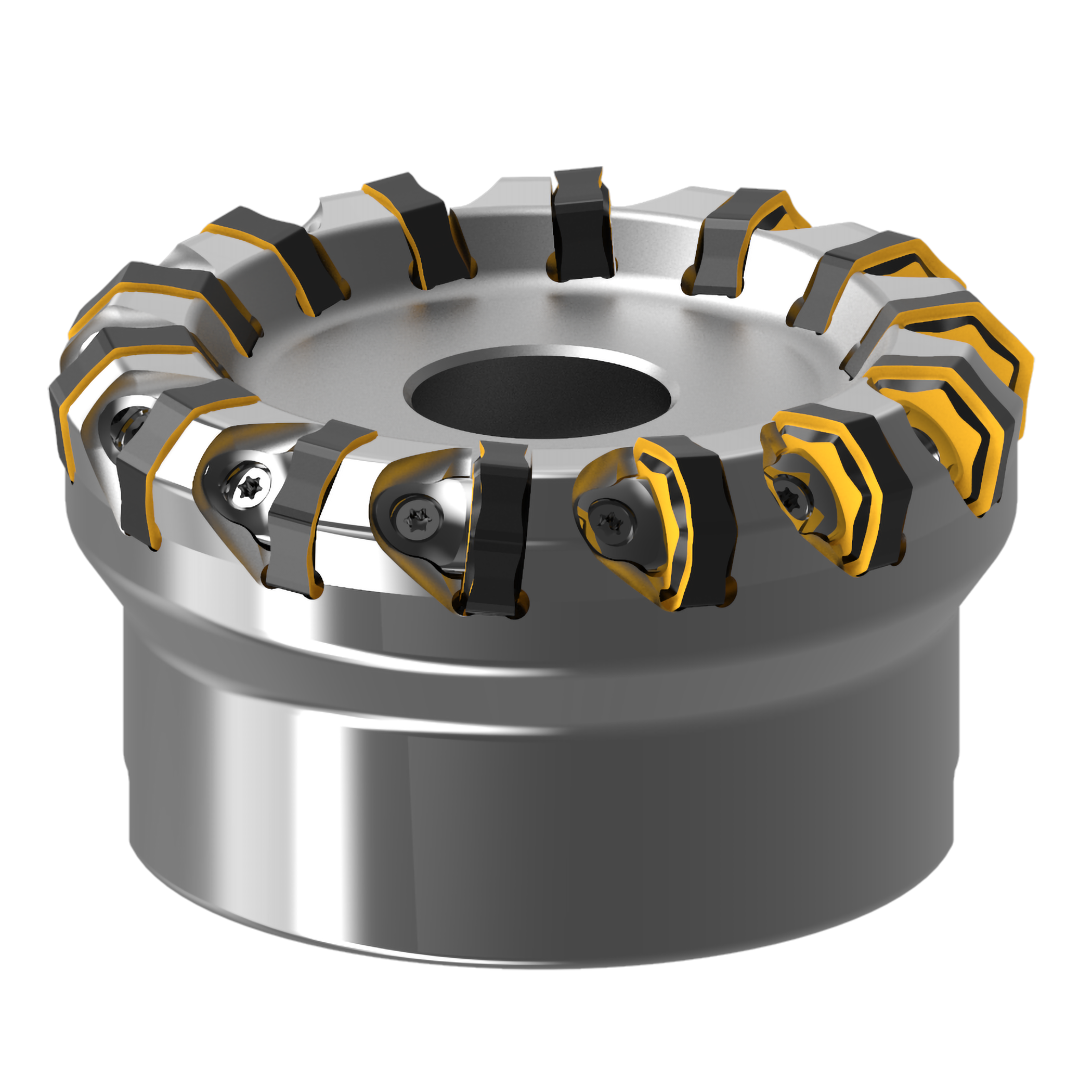

  • General Purpose Multi Corner Insert Type Face Milling Cutter
  • Heptagonal double-sided insert.
  • Economical 14 cutting edge inserts.
  • Multi insert design for high feed machining.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：505130

EAN Code： 4994196540272

ANSI：AHX640WL0414E

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Left Hand
DC
101.6
DCX
114.16
LF
63.5
DCONMS
38.1
CBDP
30
DAH
20
DCCB
30
KWW
15.875
L8
9.525
DHUB
96.5
KAPR
50°
APMX
6
RPMX
7700
CSP
-
CICT
14
ZEFP
14
GAMP
-6°
GAMF
-4°
WT
7.3 kg
