Rotating Tools
Indexable Milling
Face Milling

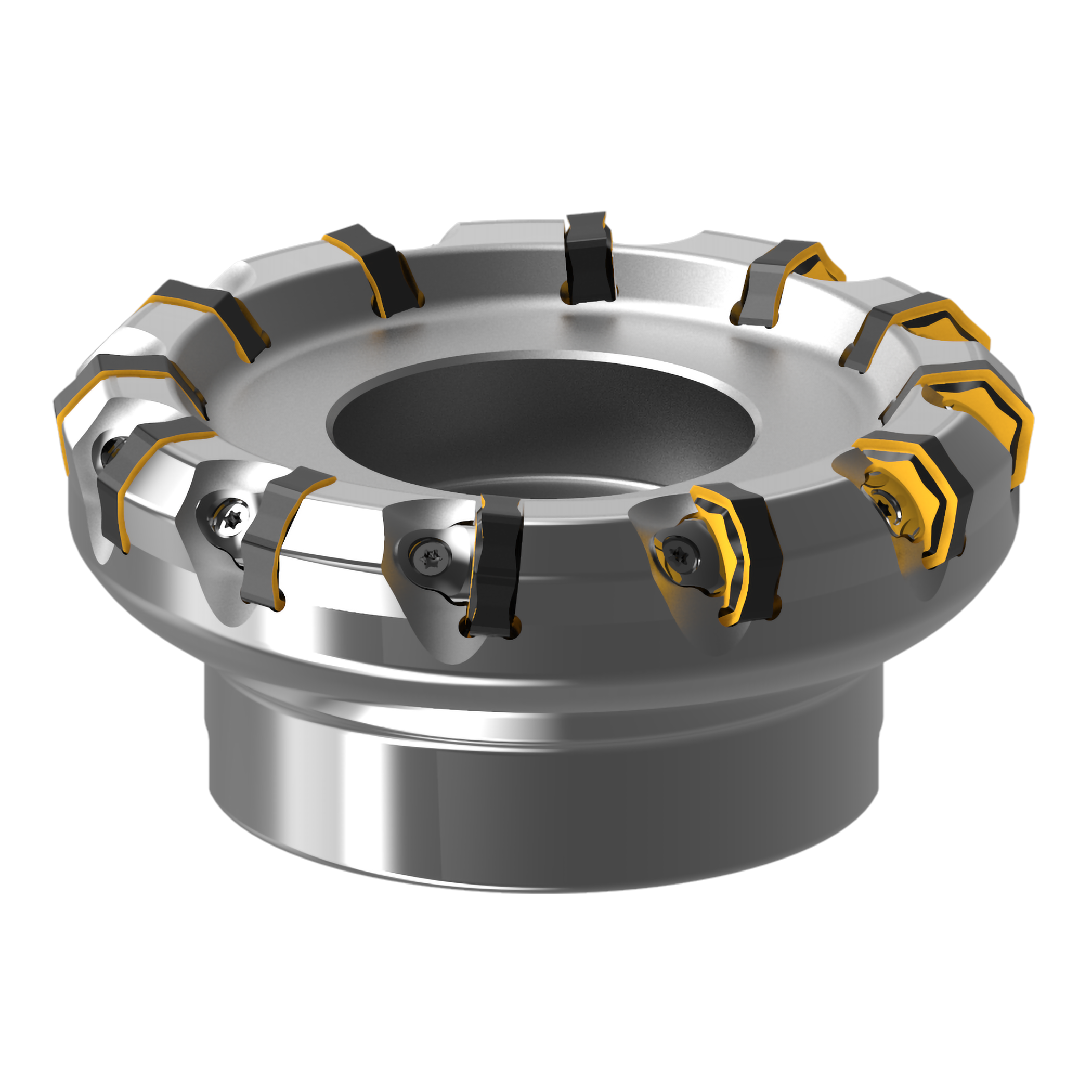

AHX640W_INCH
AHX640WL0512E
- General Purpose Multi Corner Insert Type Face Milling Cutter
- Heptagonal double-sided insert.
- Economical 14 cutting edge inserts.
- Multi insert design for high feed machining.
※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.
EDP No：505076
EAN Code： 4994196540432
ANSI：AHX640WL0512E
Stock：Out of Stock
- Stock
-
Inventory maintained. - HAND
- Left Hand
- DC
- 127
- DCX
- 139.56
- LF
- 63.5
- DCONMS
- 38.1
- CBDP
- 35
- DCCB
- 60
- KWW
- 15.875
- L8
- 9.525
- DHUB
- 96.5
- KAPR
- 50°
- APMX
- 6
- RPMX
- 6500
- CSP
- -
- CICT
- 12
- ZEFP
- 12
- GAMP
- -6°
- GAMF
- -4°
- WT
- 8.8 kg
| Shape | EDP | Order Number | Stock | Category | Bundled quantity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For finish cutting
For medium cutting
For rough cutting
