AJX_Screw-in_MM （Multi Functional Milling）

P M K S H
  • Type1
  • Type2

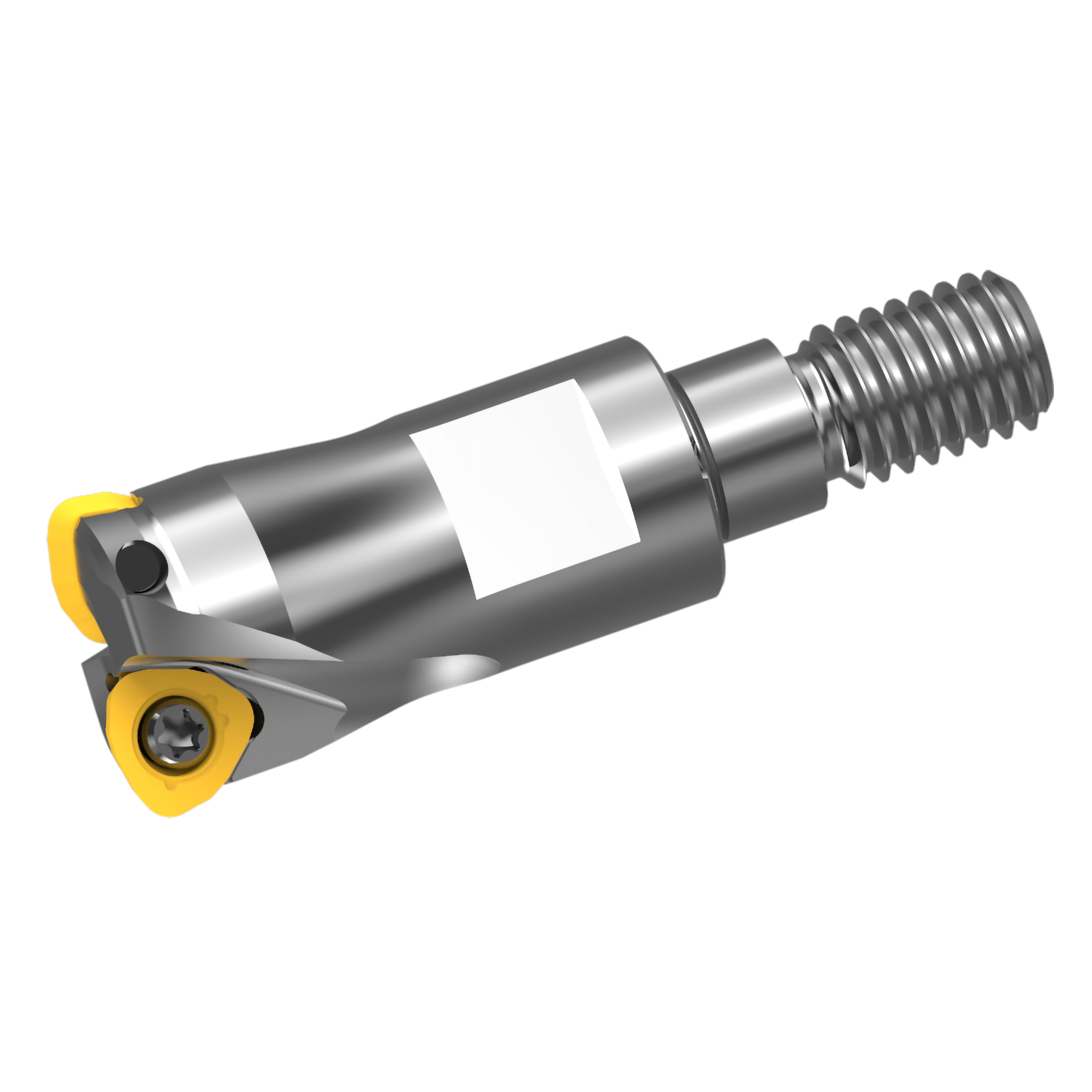

AJX_Screw-in_MM

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure
EDP Order Number Type Stock qty. Price cart HAND DC DCX LF OAL DCONMS S10 DHUB CRKS APMX AZ RPMX CSP CICT ZEFP GAMP GAMF WT
453481 AJX06R162AM0830 Type 1 Out of Stock Right Hand 8.9 16 30 48 8.5 10 13 M8 1 0.3 - ◯ 2 2 4 ° -5 ° 0.1 kg
453499 AJX06R172AM0830 Type 1 Out of Stock Right Hand 9.9 17 30 48 8.5 10 13 M8 1 0.3 - ◯ 2 2 4 ° -5 ° 0.1 kg
453501 AJX08R202AM1030 Type 1 Out of Stock Right Hand 11.4 20 30 49 10.5 14 18 M10 1.5 0.5 - ◯ 2 2 4 ° -5 ° 0.1 kg
434124 AJX06R203AM1030 Type 1 Out of Stock Right Hand 12.9 20 30 49 10.5 14 18 M10 1 0.3 - ◯ 3 3 4 ° -6 ° 0.1 kg
453510 AJX08R222AM1030 Type 1 Out of Stock Right Hand 13.4 22 30 49 10.5 14 18 M10 1.5 0.5 - ◯ 2 2 4 ° -5 ° 0.1 kg
434132 AJX06R223AM1030 Type 1 Out of Stock Right Hand 14.9 22 30 49 10.5 14 18 M10 1 0.3 - ◯ 3 3 4 ° -6 ° 0.1 kg
453528 AJX09R252AM1235 Type 2 Out of Stock Right Hand 14.9 25 35 57 12.5 19 21 M12 2 1 - ◯ 2 2 5 ° -5 ° 0.2 kg
434159 AJX08R253AM1235 Type 1 Out of Stock Right Hand 16.4 25 35 57 12.5 19 21 M12 1.5 0.5 - ◯ 3 3 4 ° -6 ° 0.1 kg
10654217 AJX06R254AM1235 Type 1 Out of Stock Right Hand 17.9 25 35 57 12.5 19 23.5 M12 1 0.3 - ◯ 4 4 4 ° -6 ° 0.1 kg
453536 AJX09R282AM1235 Type 2 Out of Stock Right Hand 17.9 28 35 57 12.5 19 21 M12 2 1 - ◯ 2 2 5 ° -5 ° 0.2 kg
453544 AJX12R302AM1645 Type 2 Out of Stock Right Hand 18.3 30 45 68 17 24 29 M16 2 1.5 - ◯ 2 2 5.5 ° -4 ° 0.3 kg
434167 AJX08R283AM1235 Type 1 Out of Stock Right Hand 19.4 28 35 57 12.5 19 21 M12 1.5 0.5 - ◯ 3 3 4 ° -5 ° 0.1 kg
434183 AJX09R303AM1645 Type 2 Out of Stock Right Hand 20 30 45 68 17 24 29 M16 2 1 - ◯ 3 3 5 ° -7 ° 0.2 kg
453552 AJX12R322AM1645 Type 2 Out of Stock Right Hand 20.3 32 45 68 17 24 29 M16 2 1.5 - ◯ 2 2 7 ° -4 ° 0.3 kg
10654231 AJX06R284AM1235 Type 1 Out of Stock Right Hand 20.9 28 35 57 12.5 19 23.5 M12 1 0.3 - ◯ 4 4 4 ° -6 ° 0.1 kg
475639 AJX09R323AM16 Type 2 Out of Stock Right Hand 21.9 32 47 70 17 22 29 M16 2 1 - ◯ 3 3 5 ° -5 ° 0.2 kg
434191 AJX09R323AM1645 Type 2 Out of Stock Right Hand 21.9 32 45 68 17 24 29 M16 2 1 - ◯ 3 3 5 ° -5 ° 0.2 kg
453561 AJX12R352AM1645 Type 2 Out of Stock Right Hand 23.3 35 45 68 17 24 29 M16 2 1.5 - ◯ 2 2 8 ° -4 ° 0.3 kg
10654248 AJX08R324AM1645 Type 1 Out of Stock Right Hand 23.4 32 45 68 17 24 29 M16 1.5 0.5 - ◯ 4 4 5 ° -6 ° 0.2 kg
434204 AJX09R353AM1645 Type 2 Out of Stock Right Hand 24.9 35 45 68 17 24 29 M16 2 1 - ◯ 3 3 5 ° -5 ° 0.2 kg

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.

Tool Material

Ultra Micro Grain Carbide
Ultra micro grain carbide is used as the substrate material
Cubic Boron Nitride
Mitsubishi’s original CBN is used.
Ceramic
Ceramic is used as the substrate material.
High Hardness Powder Metallurgy HSS
High hardness powder metallurgy HSS is used as the substrate material.
Ultra Micro Grain HSS
Cobalt high speed steel is used as the substrate material.
High Speed Steel
High speed steel is used as the substrate material.
