AJX08R324AM1645

AJX08R324AM1645

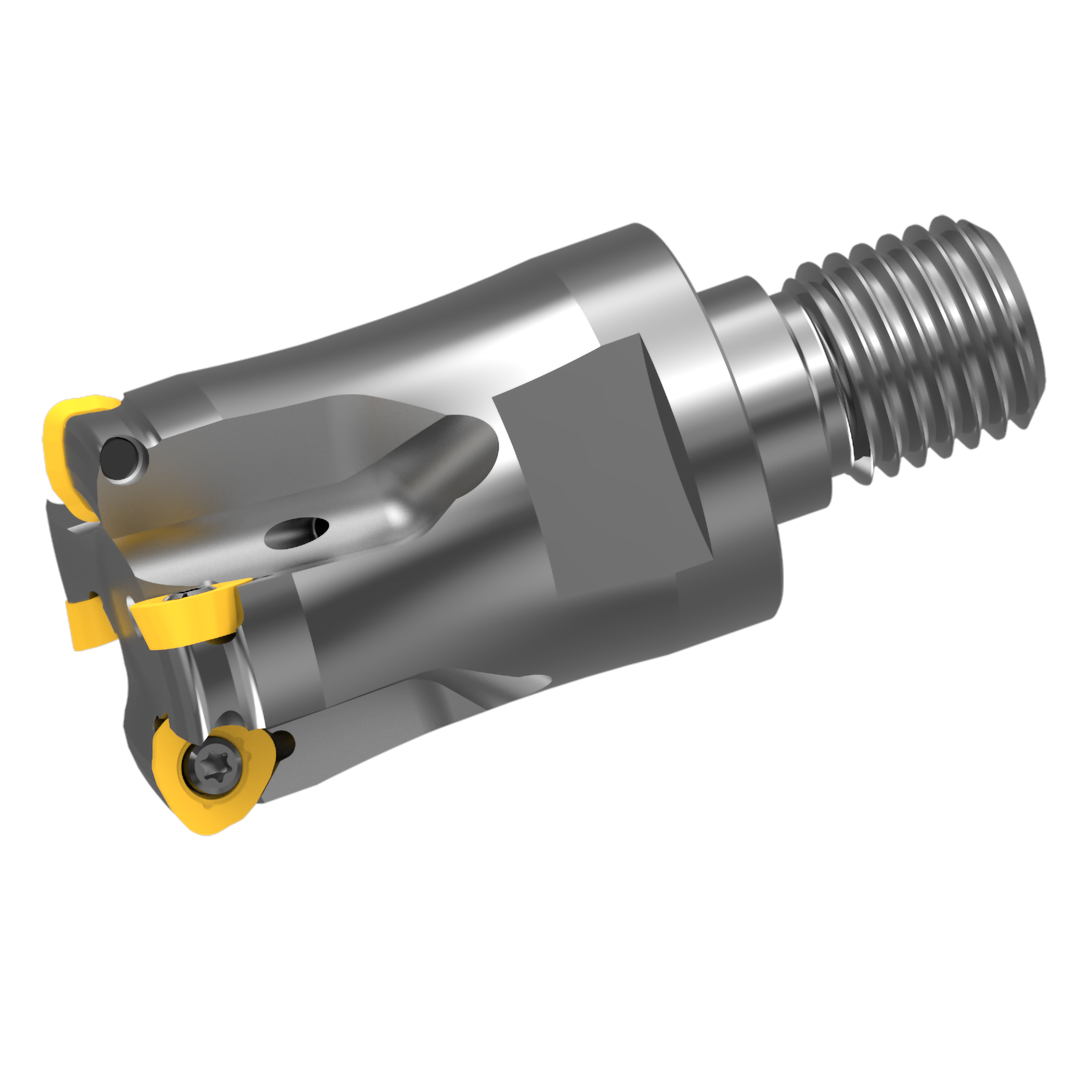

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：10654248

EAN Code： 4994196801557

ANSI：AJX08R324AM1645

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
23.4
DCX
32
LF
45
OAL
68
DCONMS
17
S10
24
DHUB
29
CRKS
M16
APMX
1.5
AZ
0.5
CSP
◯
CICT
4
ZEFP
4
GAMP
5°
GAMF
-6°
WT
0.2 kg
