AJX08R253AM1235

AJX08R253AM1235

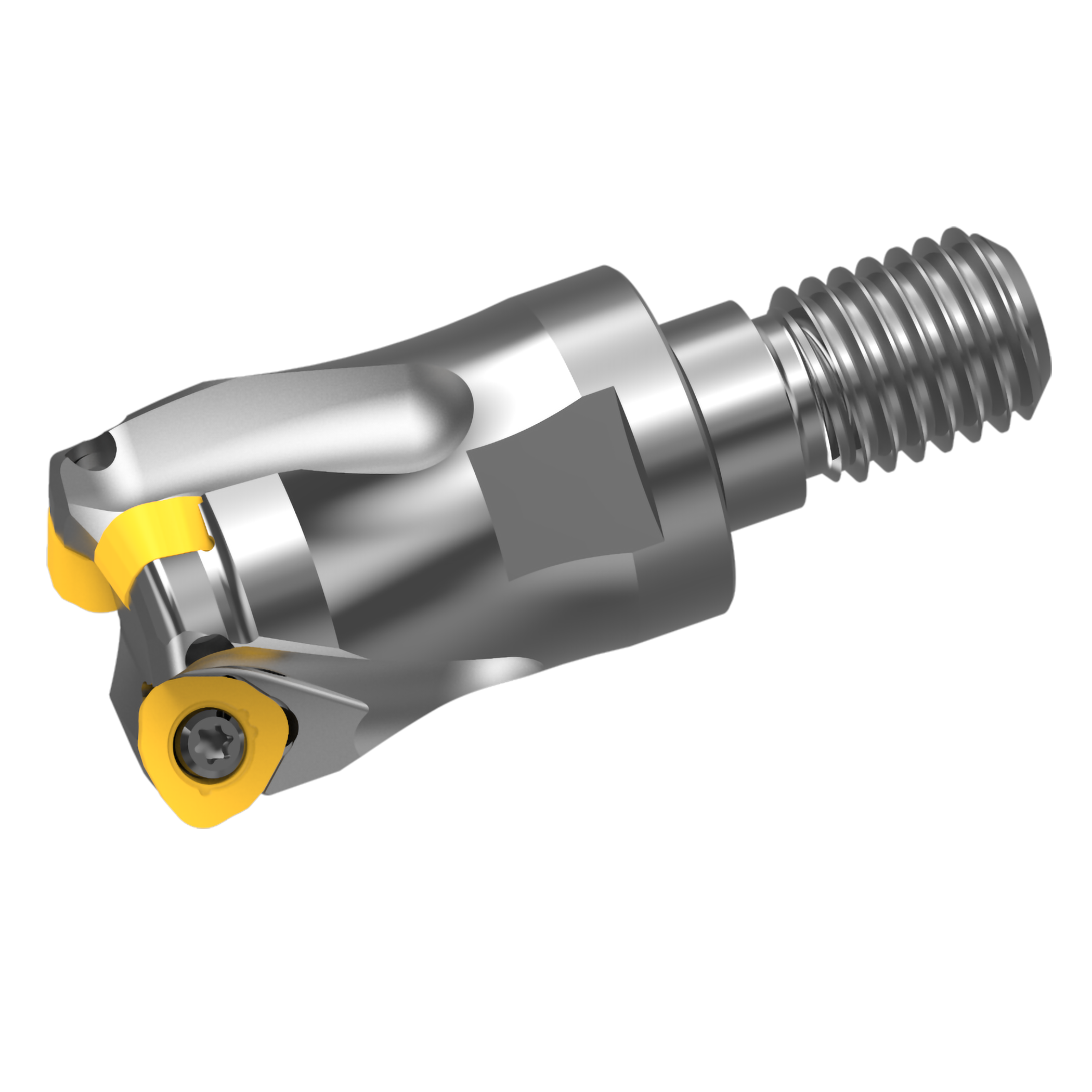

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：434159

EAN Code： 4994196468705

ANSI：AJX08R253AM1235

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
16.4
DCX
25
LF
35
OAL
57
DCONMS
12.5
S10
19
DHUB
21
CRKS
M12
APMX
1.5
AZ
0.5
CSP
◯
CICT
3
ZEFP
3
GAMP
4°
GAMF
-6°
WT
0.1 kg
