AJX08R222AM1030

AJX08R222AM1030

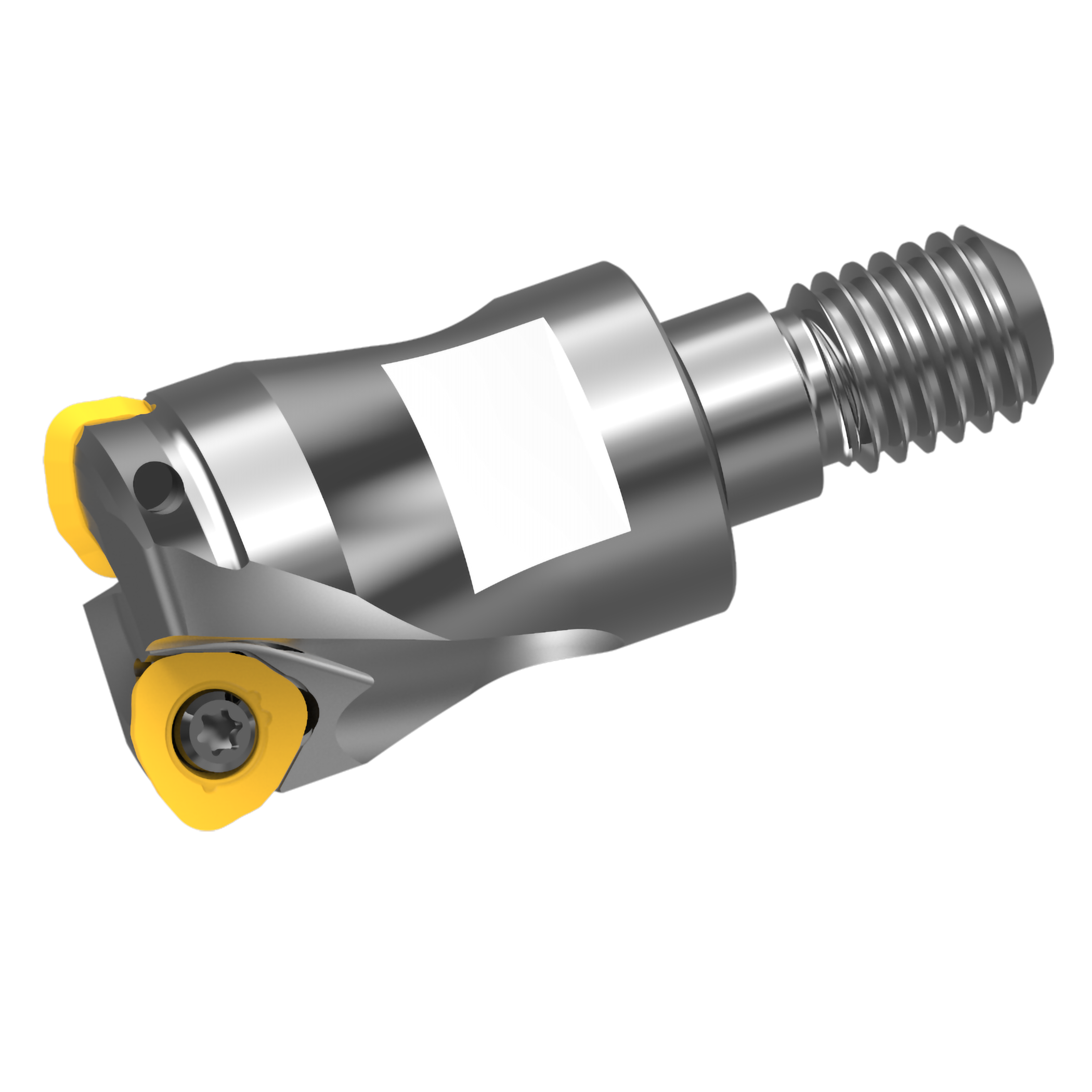

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：453510

EAN Code： 4994196468699

ANSI：AJX08R222AM1030

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
13.4
DCX
22
LF
30
OAL
49
DCONMS
10.5
S10
14
DHUB
18
CRKS
M10
APMX
1.5
AZ
0.5
CSP
◯
CICT
2
ZEFP
2
GAMP
4°
GAMF
-5°
WT
0.1 kg
