P M K S H

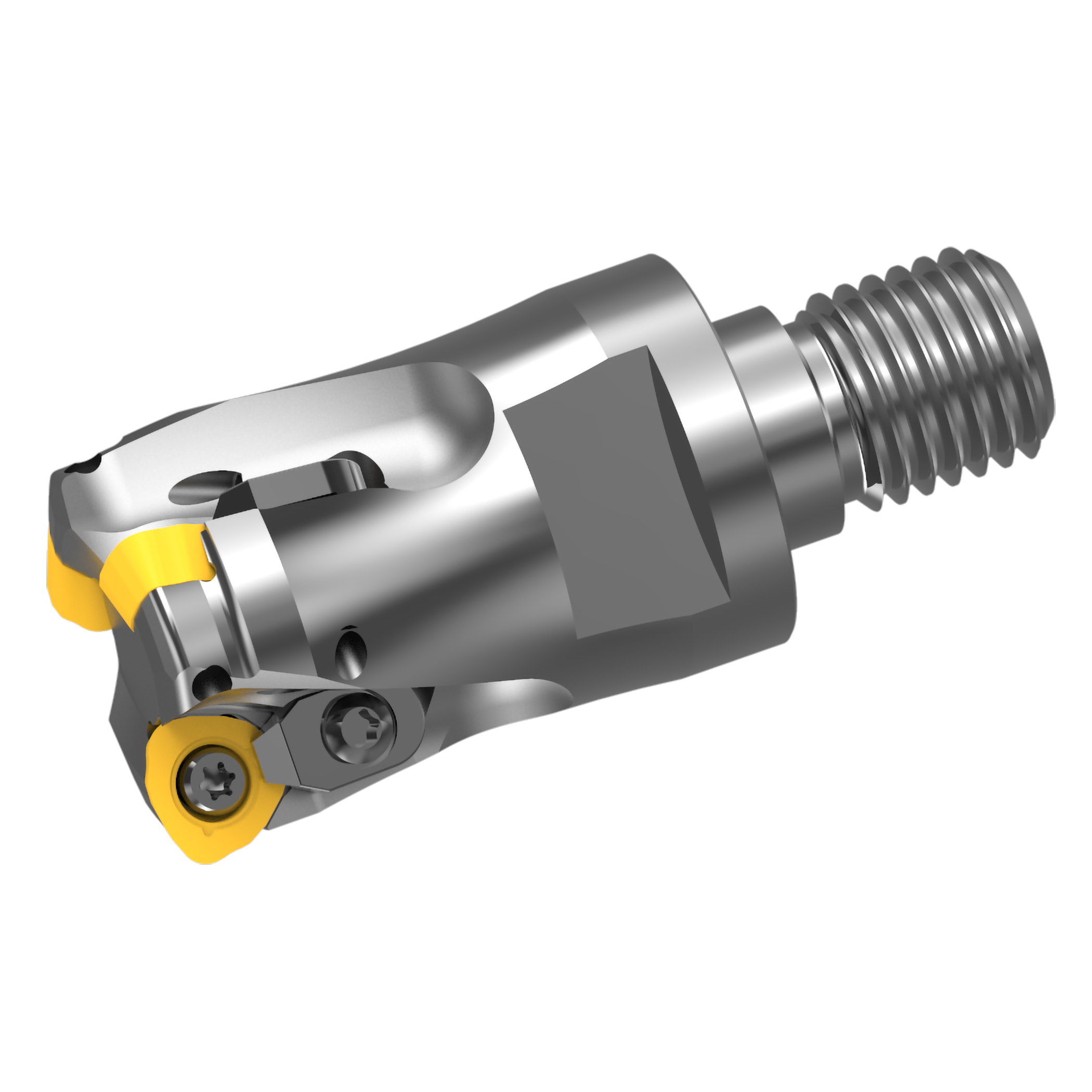

AJX09R323AM16

AJX09R323AM16

  • High Feed Radius Milling Cutter
  • 15° positive insert.
  • High rigidity double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with 3 cutting edges.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：475639

EAN Code： 4994196443429

ANSI：AJX09R323AM16

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
21.9
DCX
32
LF
47
OAL
70
DCONMS
17
S10
22
DHUB
29
CRKS
M16
APMX
2
AZ
1
CSP
◯
CICT
3
ZEFP
3
GAMP
5°
GAMF
-5°
WT
0.2 kg
