NEW

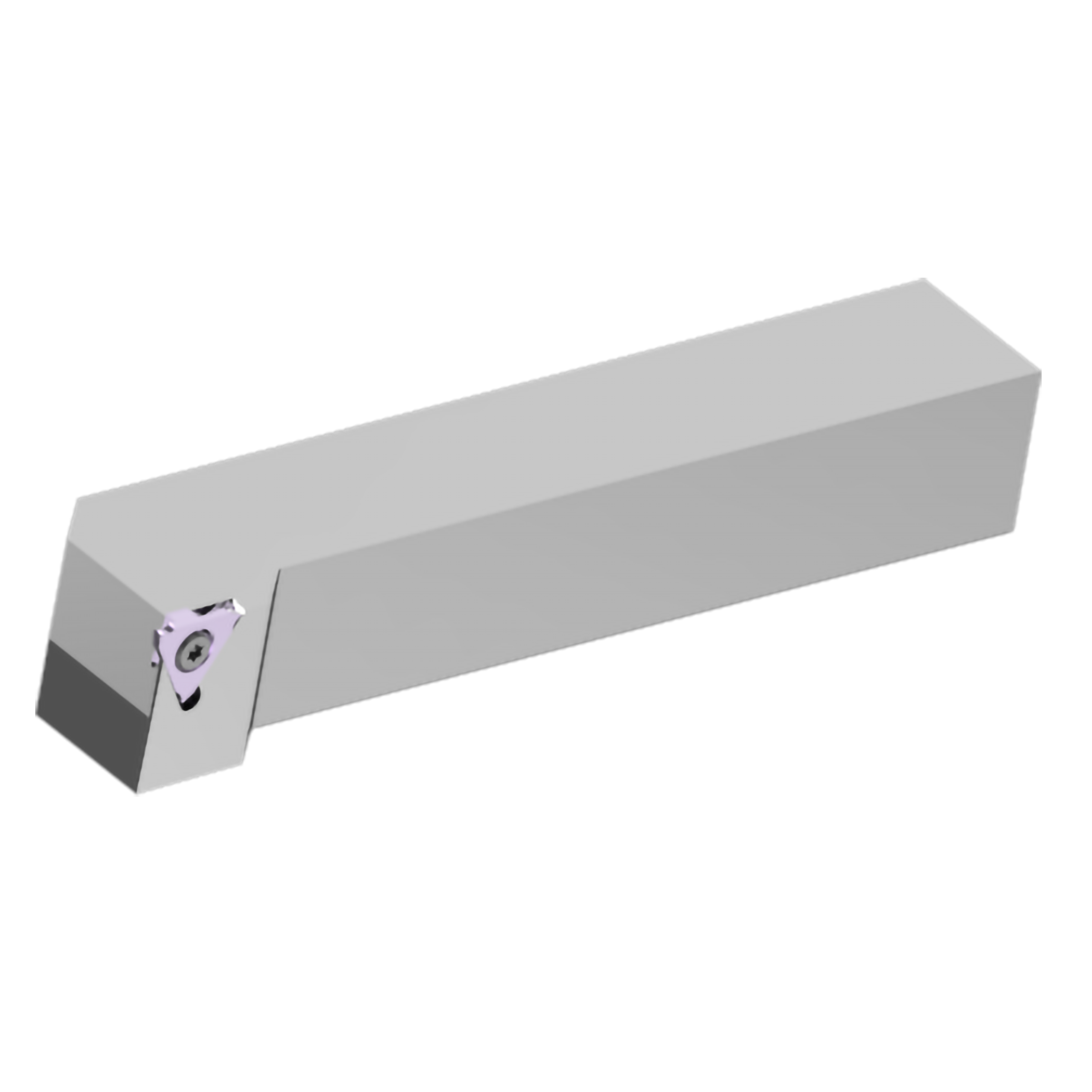

GTBHR2525-30

  • Small Tools
  • Holder shape that can be mounted on gang turrets tool post
  • 8-20 mm wide range of shank sizes
  • High rigidity due to desigh of vertical insert
  • Economical due to the design of three-corner inserts

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：24091749

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified

Product Details
Stock
Inventory maintained.
UST
M
HAND
Right Hand
H
25
B
25
LF
150
HF
25
LH
25
CDX
3
WF
32
CWN
1.45
CWX
3
B2
2°
ALP
-6°
CICT
1
Applicable_Inserts
GTBT〇〇〇〇,GTCT〇〇〇〇
