Notes When Selecting the Tool Body

Holder

When the overhang is the same, select a holder with the largest possible shank size to ensure sufficient clamping rigidity.

Modular Blade (1)

Modular Blade (1)

For a ø1.5" & ø40mm shank holder, if there is no restriction for use, select a holder suitable for GYM25 blade.

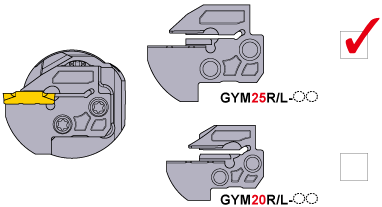

Modular Blade (2)

Modular Blade (2)

For an internal holder, select a modular blade listed above.

Notes When Setting the Tool

Overhang

The maximum groove depth is limited to the dimension LDRED. When machining with longer overhangs, refer to the dimension F2 of the tool used.
