GT Holder 00°

GT Holder 00°

NEW

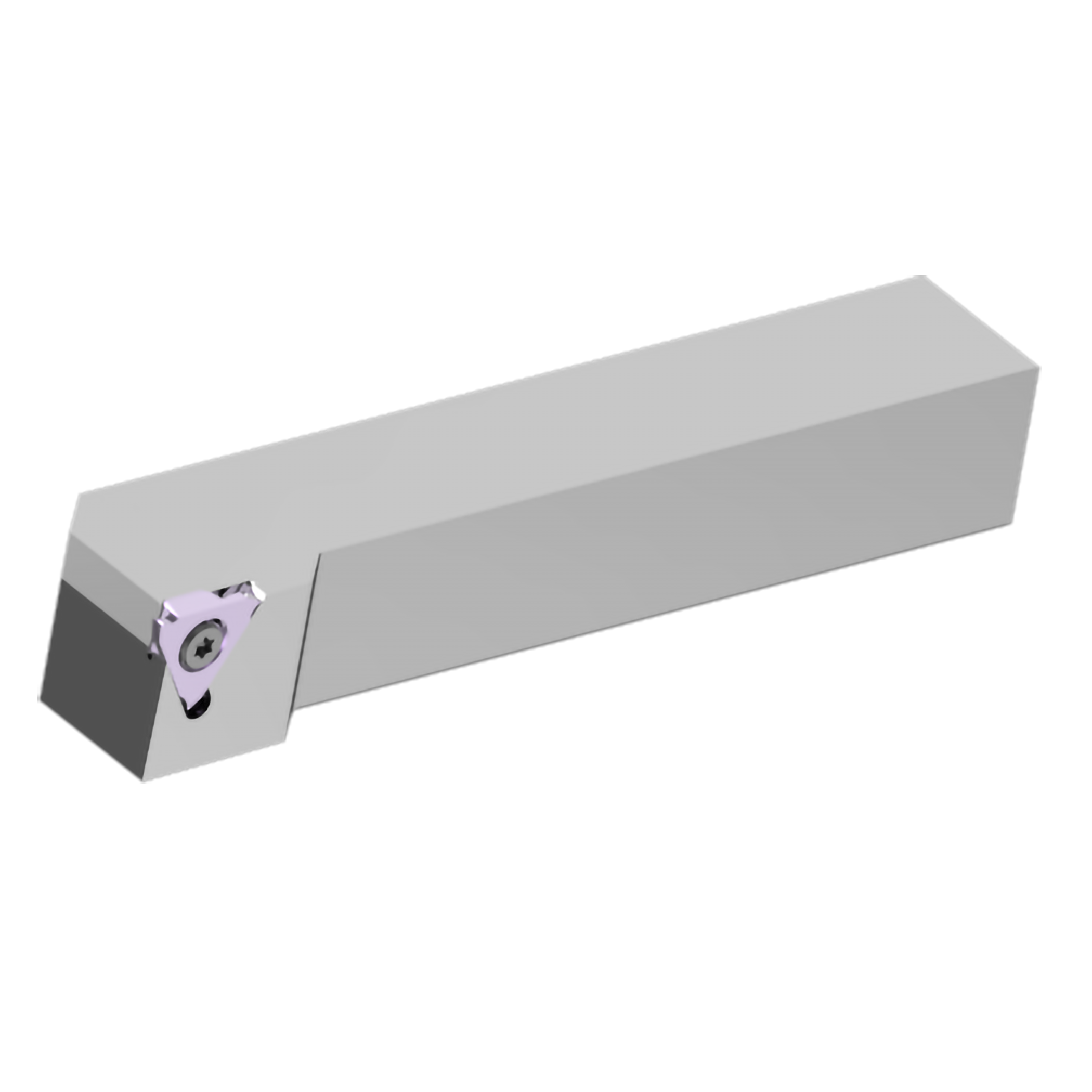

GTAHR2020-20

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：24091497

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified

Product Details
Stock
Inventory maintained.
UST
M
HAND
Right Hand
H
20
B
20
LF
120
HF
20
LH
25
CDX
2
WF
25
CWN
0.25
CWX
3
B2
2°
ALP
-6°
CICT
1
Applicable_Inserts
GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
Shape EDP Order Number Stock Category Bundled quantity

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
