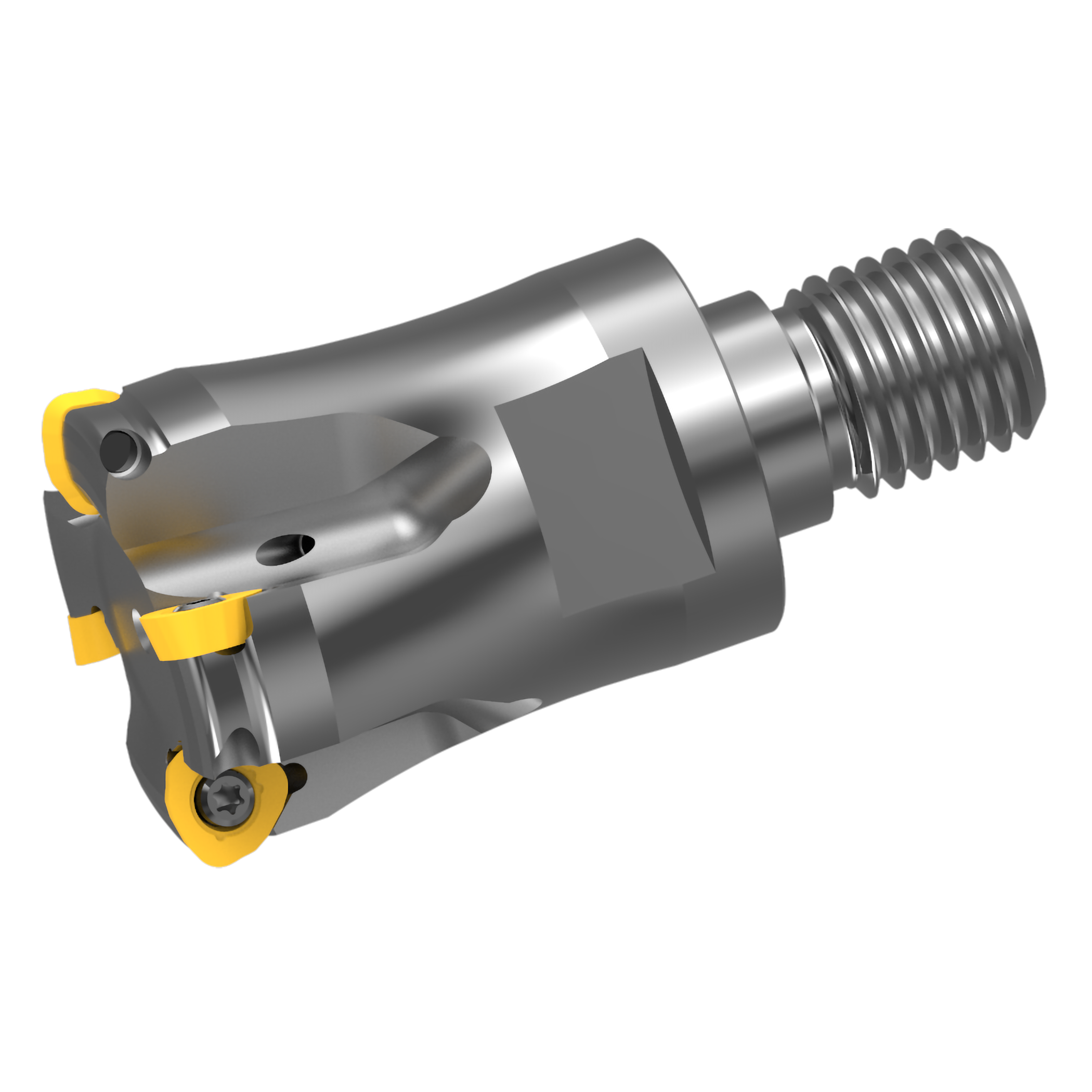

AJX

AJX_Screw-in_MM （Multi Functional Milling）

High Feed Radius Milling Cutter
Screw-in Type
DCONMS=Metric

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：10654255

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Details

Stock: Inventory maintained.
UST: M
HAND: Right Hand
DC: 26.4
DCX: 35
LF: 45
OAL: 68
DCONMS: 17
S10: 24
DHUB: 29
CRKS: M16
APMX: 1.5
AZ: 0.5
CSP: ◯
CICT: 4
ZEFP: 4
GAMP: 5°
GAMF: -6°
WT: 0.2 kg
