SRM2500WNLM - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

Rotating Tools

Indexable Milling

Ball Nose and Radius End Mill

SRM2_40-50

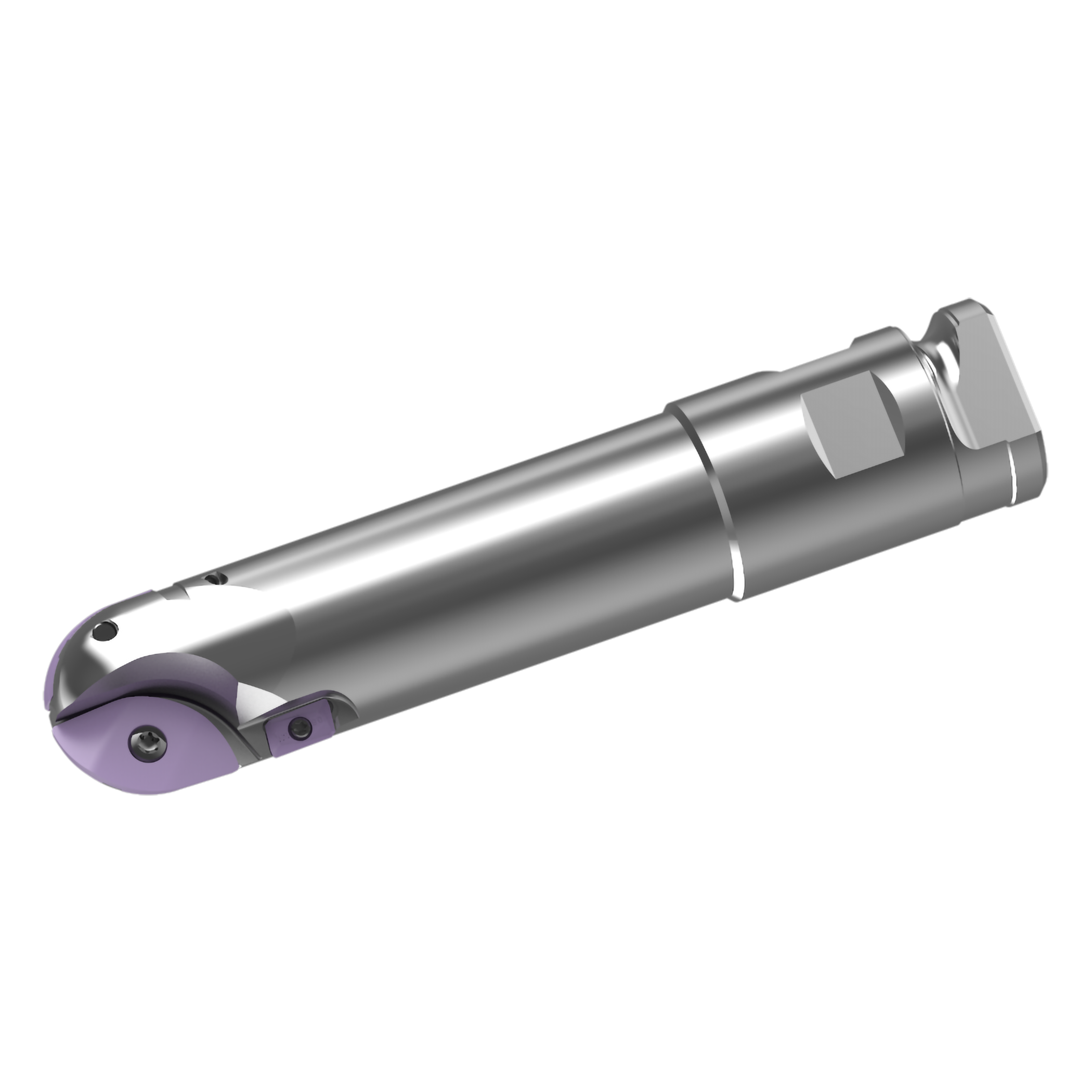

SRM2_50-40_Shank_MM （Ball Nose End Milling）

Indexable Insert Ball Nose End Mill
Shank Type
DCONMS=Metric

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：329228

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Cutting Condition Details

Stock: Inventory maintained.
UST: M
HAND: Right Hand
DC: 50
LF: 206.34
DCONMS: 50.8
LH: 170
APMX: 63
CSP: -
CICT: 4
ZEFP: 1
ZEFF: 2

Shape	EDP	Order Number	Stock	Category	Bundled quantity

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
