AJX14-063A03R - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

Rotating Tools

Indexable Milling

Multi functional Milling

AJX

AJX_Arbor_MM （Multi Functional Milling）

High Feed Radius Milling Cutter
Arbor Type
Right Hand
DCONMS=Metric

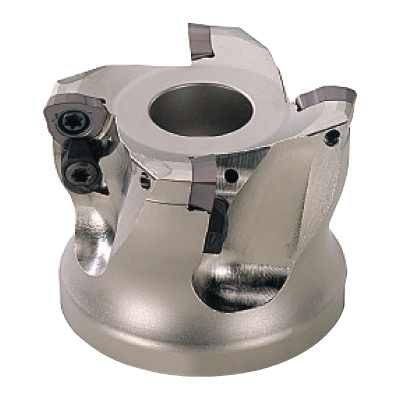

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：229147

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Recommended cutting conditions

Product Details

Stock: Inventory maintained.
UST: M
HAND: Right Hand
DC: 51.1
DCX: 63
LF: 50
DCONMS: 22
CBDP: 20
DAH: 11
DCCB: 17
KWW: 10.4
L8: 6.3
DHUB: 60
APMX: 2
AZ: 2
CSP: ◯
CICT: 3
ZEFP: 3
GAMP: 8°
GAMF: -3°
WT: 0.7 kg
