FSWL1 - Series - Web Catalog | MITSUBISHI MATERIALS U.S.A

Type1
Type2

Boring Bars
7°positive insert.
Screw-on type and Clamp-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

	EDP	Order Number	Type	Stock	qty.	Price	cart	Hand	KAPR	DMIN	DCONMS	H	LF	LDRED	WF	H	GAMF	CSP	MIID	CICT	Applicable_Inserts
	102229	FSWL108RS	Type 2		Out of Stock			Right Hand	95 °	5.8	8	7	100	19	2.9	7	17 °	-	WCMT020104	1	WCMT0201〇〇,WCGT0201〇〇

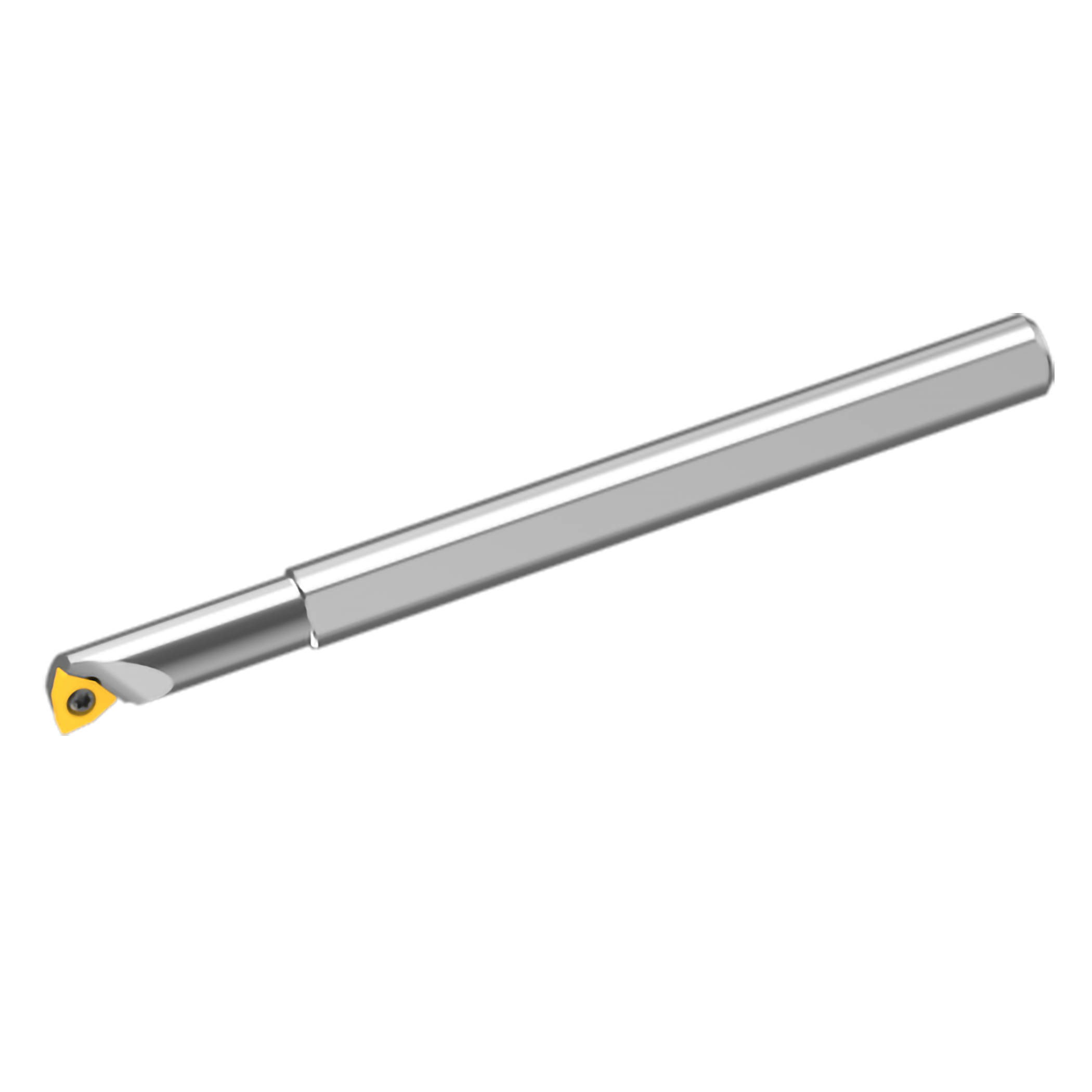

	806995	FSWL108RM	Type 2		Out of Stock			Right Hand	95 °	8	8	7	100	25	4	7	15 °	-	WCMTL30204	1	WCMTL302〇〇,WCGTL302〇〇,WCMWL302〇〇
	122753	FSWL108R	Type 1		Out of Stock			Right Hand	95 °	10	8	7	125	10	5	7	15 °	-	WCMT040204	1	WCMT0402〇〇,WCMW0402〇〇
	229956	FSWL110R	Type 1		Out of Stock			Right Hand	95 °	12	10	9	150	12	6	9	13 °	-	WCMT040204	1	WCMT0402〇〇,WCMW0402〇〇
	115902	FSWL112R	Type 1		Out of Stock			Right Hand	95 °	16	12	11	180	15	8	11	13 °	-	WCMT06T308	1	WCMT06T3〇〇,WCMW06T3〇〇

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
