FSWL108R - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

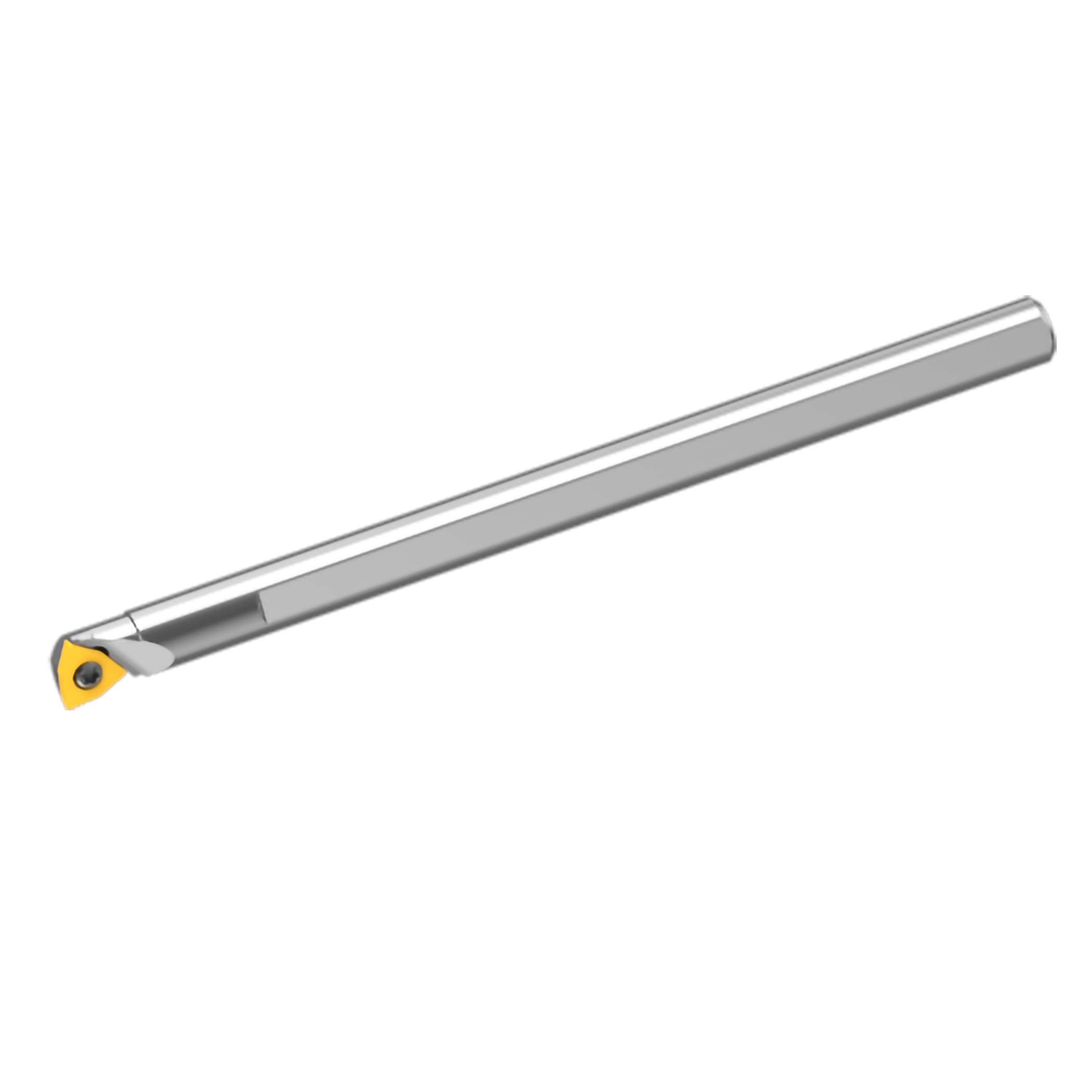

Boring Bars
7°positive insert.
Screw-on type and Clamp-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：122753

EAN Code： 4994196215248

ANSI：FSWL108R

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained in Japan.
Hand: Right Hand
KAPR: 95°
DMIN: 10
DCONMS: 8
H: 7
LF: 125
LDRED: 10
WF: 5
H: 7
GAMF: 15°
CSP: -
MIID: WCMT040204
CICT: 1
Applicable_Inserts: WCMT0402〇〇,WCMW0402〇〇
