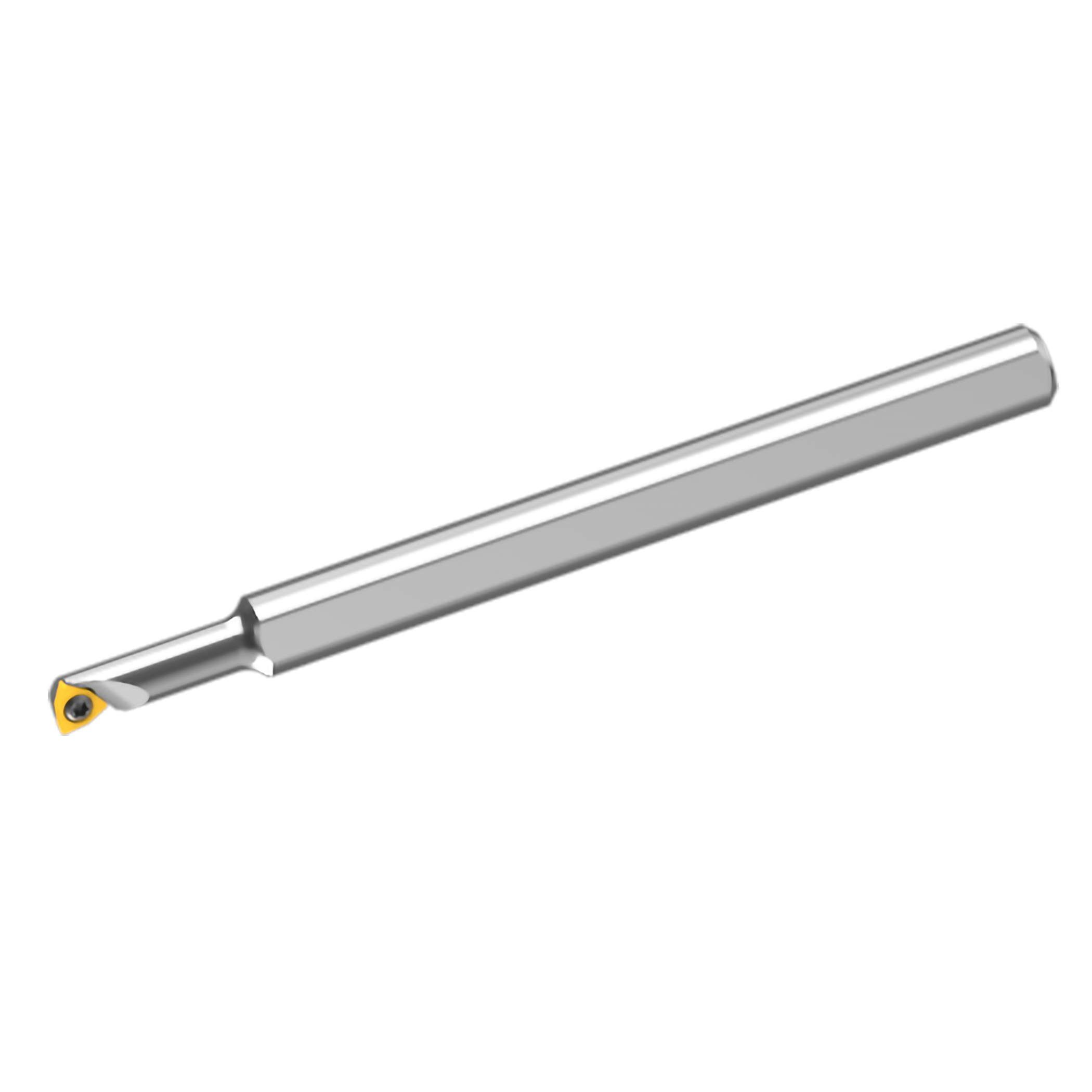

FSWL108RS - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

Boring Bars
7°positive insert.
Screw-on type and Clamp-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：102229

EAN Code： 4994196203863

ANSI：FSWL108RS

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained in Japan.
Hand: Right Hand
KAPR: 95°
DMIN: 5.8
DCONMS: 8
H: 7
LF: 100
LDRED: 19
WF: 2.9
H: 7
GAMF: 17°
CSP: -
MIID: WCMT020104
CICT: 1
Applicable_Inserts: WCMT0201〇〇,WCGT0201〇〇
