FSWL112R - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

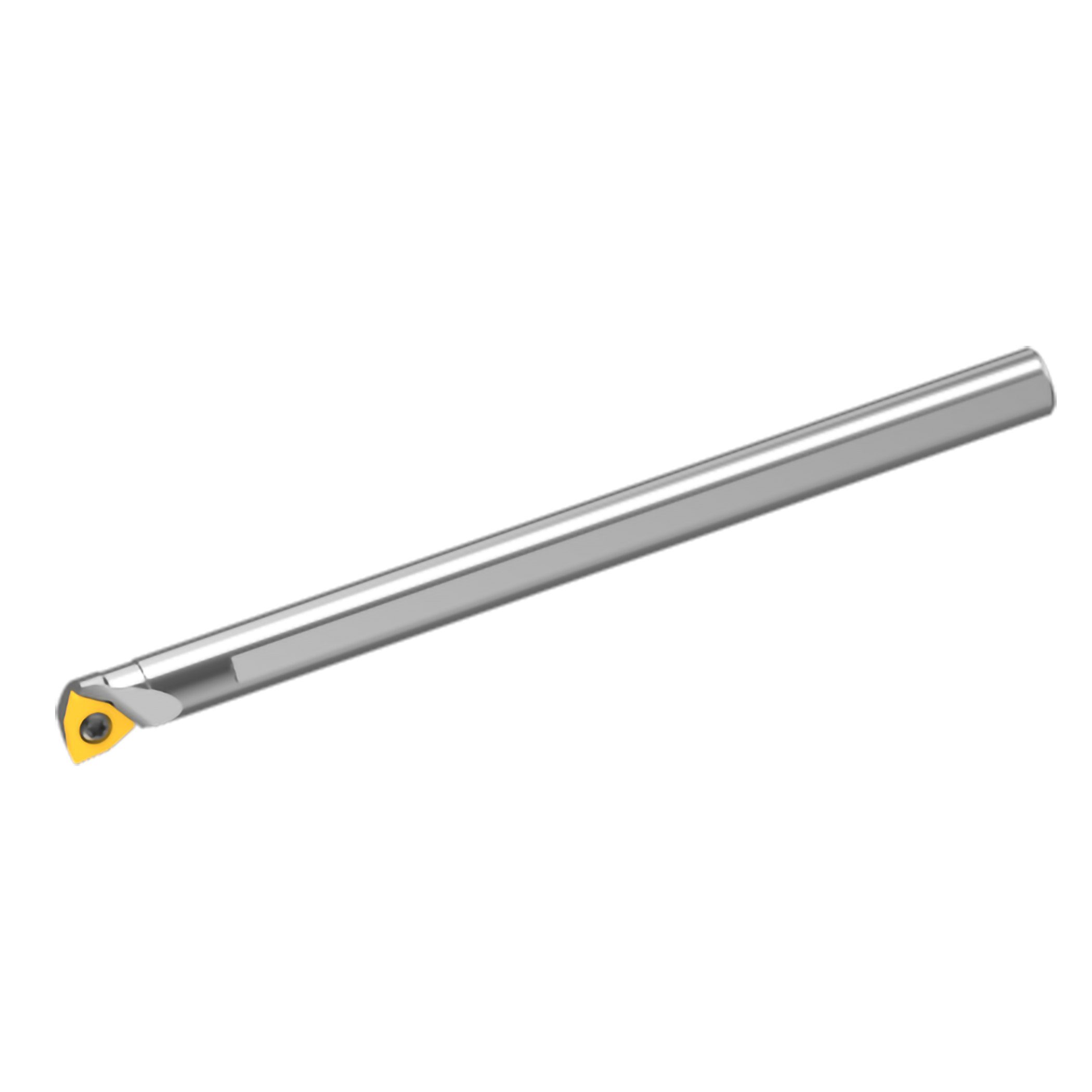

Boring Bars
7°positive insert.
Screw-on type and Clamp-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：115902

EAN Code： 4994196233938

ANSI：FSWL112R

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained in Japan.
Hand: Right Hand
KAPR: 95°
DMIN: 16
DCONMS: 12
H: 11
LF: 180
LDRED: 15
WF: 8
H: 11
GAMF: 13°
CSP: -
MIID: WCMT06T308
CICT: 1
Applicable_Inserts: WCMT06T3〇〇,WCMW06T3〇〇
