AQX_INCH
AQX_SH_Shank_II （Multi Functional Milling）
-
-
Type1
-
Type2
-
Type3

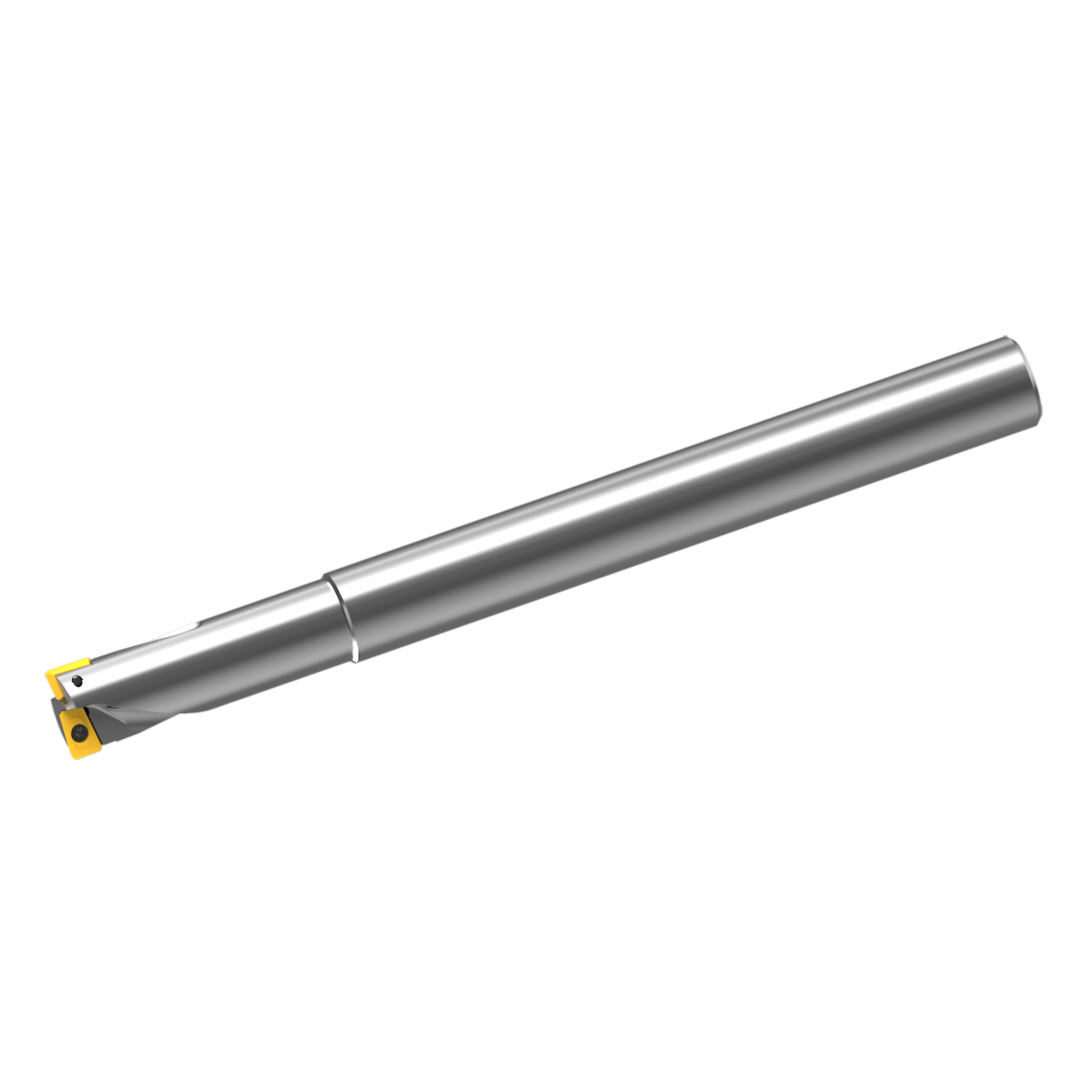

AQX_SH_Shank_II
- Multi-functional Indexable End Mill
- The centre bottom cutting edge enables drilling without previously formed hole.
- With through coolant holes.
※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.
| EDP | Order Number | Type | Stock | qty. | Price | cart | HAND | DC | OAL | DCONMS | LH | B2 | KAPR | APMX | A3 | RPMX | CSP | CICT | ZEFP | ZEFF | GAMP | GAMF | WT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 208805 | AQXUR102SA10L | Type 1 |
|
35 | $362.06 | Right Hand | 15.875 | 174.625 | 15.875 | 50.8 | 3.5 ° | 90 ° | 7.1 | 4.7 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 208792 | AQXUR102WA10S | Type 3 |
|
55 | $319.09 | Right Hand | 15.875 | 93.66 | 15.875 | 28.58 | 3.5 ° | 90 ° | 7.1 | 4.7 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 208813 | AQXUR112SA10L | Type 1 |
|
9 | $362.06 | Right Hand | 17.066 | 174.625 | 15.875 | 28.575 | 3.5 ° | 90 ° | 7.1 | 4.7 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202083 | AQXUR122SA12L | Type 1 |
|
62 | $400.93 | Right Hand | 19.05 | 184.15 | 19.05 | 60.325 | 3.5 ° | 90 ° | 8.7 | 5.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202041 | AQXUR122WA12S | Type 3 |
|
55 | $351.82 | Right Hand | 19.05 | 104.775 | 19.05 | 34.925 | 3.5 ° | 90 ° | 8.7 | 5.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202091 | AQXUR132SA12L | Type 1 |
|
107 | $400.93 | Right Hand | 20.24 | 184.15 | 19.05 | 34.925 | 3.5 ° | 90 ° | 8.7 | 5.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202104 | AQXUR162SA16L | Type 1 |
|
34 | $415.24 | Right Hand | 25.4 | 215.9 | 25.4 | 76.2 | 3.5 ° | 90 ° | 11.9 | 7.1 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202059 | AQXUR162WA16S | Type 2 |
|
77 | $368.18 | Right Hand | 25.4 | 123.825 | 25.4 | 41.275 | 3.5 ° | 90 ° | 11.9 | 7.1 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202112 | AQXUR172SA16L | Type 1 |
|
27 | $415.24 | Right Hand | 26.59 | 215.9 | 25.4 | 41.275 | 3.5 ° | 90 ° | 11.9 | 7.1 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202121 | AQXUR202SA20L | Type 1 |
|
9 | $447.96 | Right Hand | 31.75 | 228.6 | 31.75 | 88.9 | 3.5 ° | 90 ° | 14.3 | 9.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202067 | AQXUR202WA20S | Type 2 |
|
18 | $407.03 | Right Hand | 31.75 | 133.35 | 31.75 | 50.8 | 3.5 ° | 90 ° | 14.3 | 9.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202139 | AQXUR212SA20L | Type 1 |
|
20 | $447.96 | Right Hand | 32.94 | 228.6 | 31.75 | 50.8 | 3.5 ° | 90 ° | 14.3 | 9.5 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202147 | AQXUR242SA20L | Type 1 |
|
15 | $531.82 | Right Hand | 38.1 | 241.3 | 31.75 | 60.325 | 3.5 ° | 90 ° | 17.5 | 11.1 | - | ◯ | 2 | 1 | 1 | - | - | - | ||
| 202075 | AQXUR242WA20S | Type 2 |
|
12 | $490.91 | Right Hand | 38.1 | 142.875 | 31.75 | 60.325 | 3.5 ° | 90 ° | 17.5 | 11.1 | - | ◯ | 2 | 1 | 1 | - | - | - |
