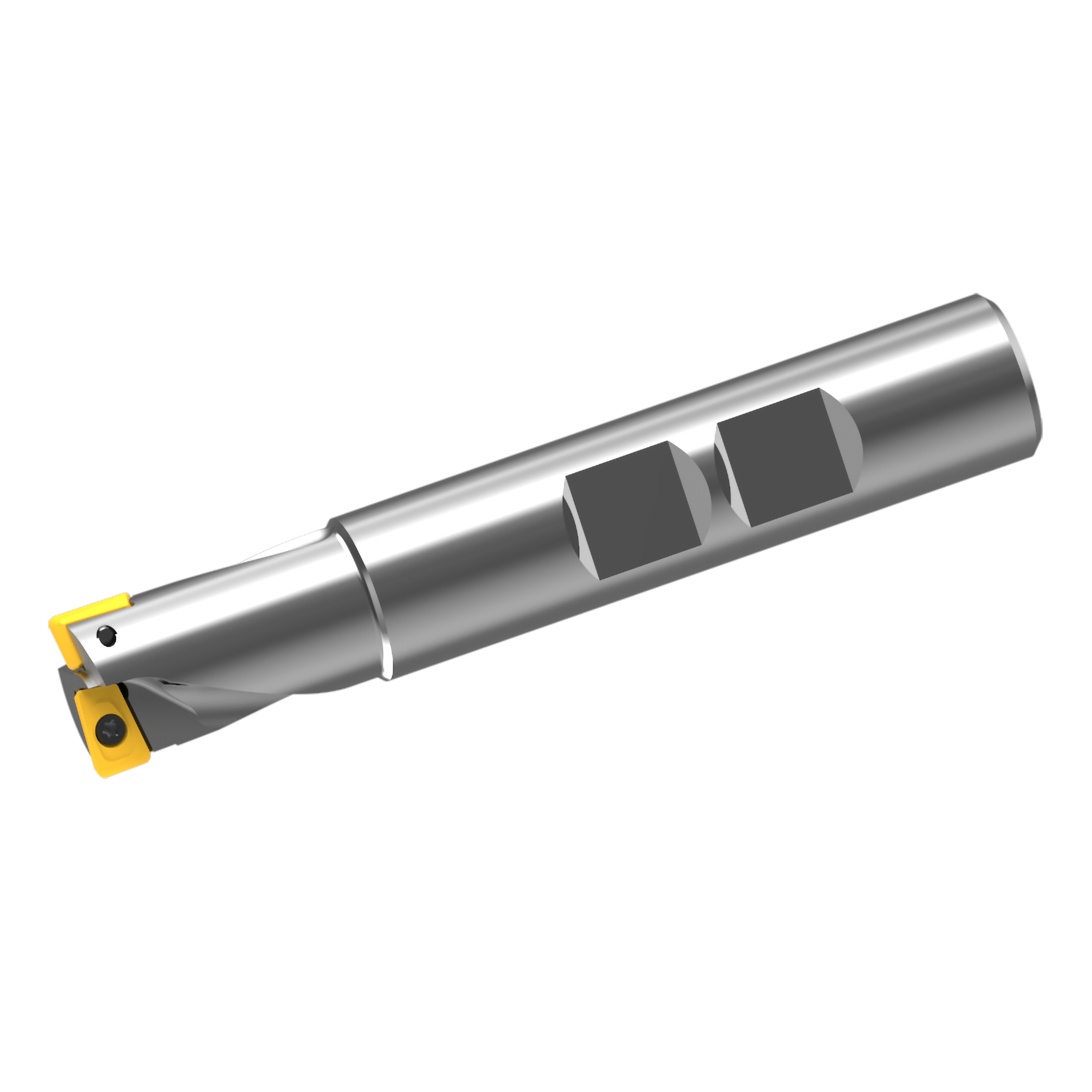

AQXUR102WA10S

AQXUR102WA10S

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

EDP No：208792

EAN Code： 4994196329310

ANSI：AQXUR102WA10S

Stock：55 pcs

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
15.875
OAL
93.66
DCONMS
15.875
LH
28.58
B2
3.5°
KAPR
90°
APMX
7.1
A3
4.7
CSP
◯
CICT
2
ZEFP
1
ZEFF
1
