AQXUR132SA12L

AQXUR132SA12L

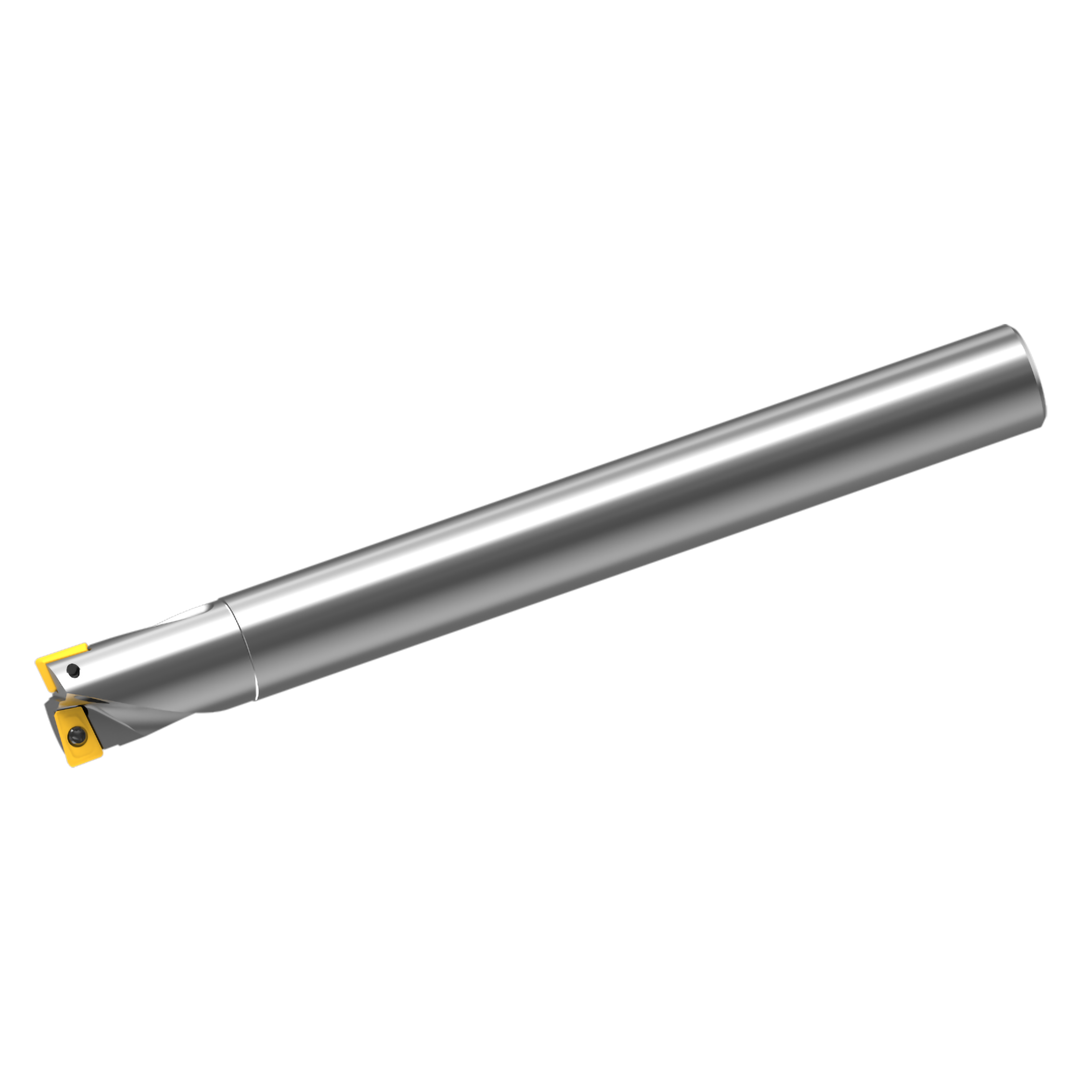

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：202091

EAN Code： 4994196317928

ANSI：AQXUR132SA12L

Stock：107 pcs

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
20.24
OAL
184.15
DCONMS
19.05
LH
34.925
B2
3.5°
KAPR
90°
APMX
8.7
A3
5.5
CSP
◯
CICT
2
ZEFP
1
ZEFF
1
Shape EDP Order Number Stock Category Bundled quantity
