AQXUR202WA20S

AQXUR202WA20S

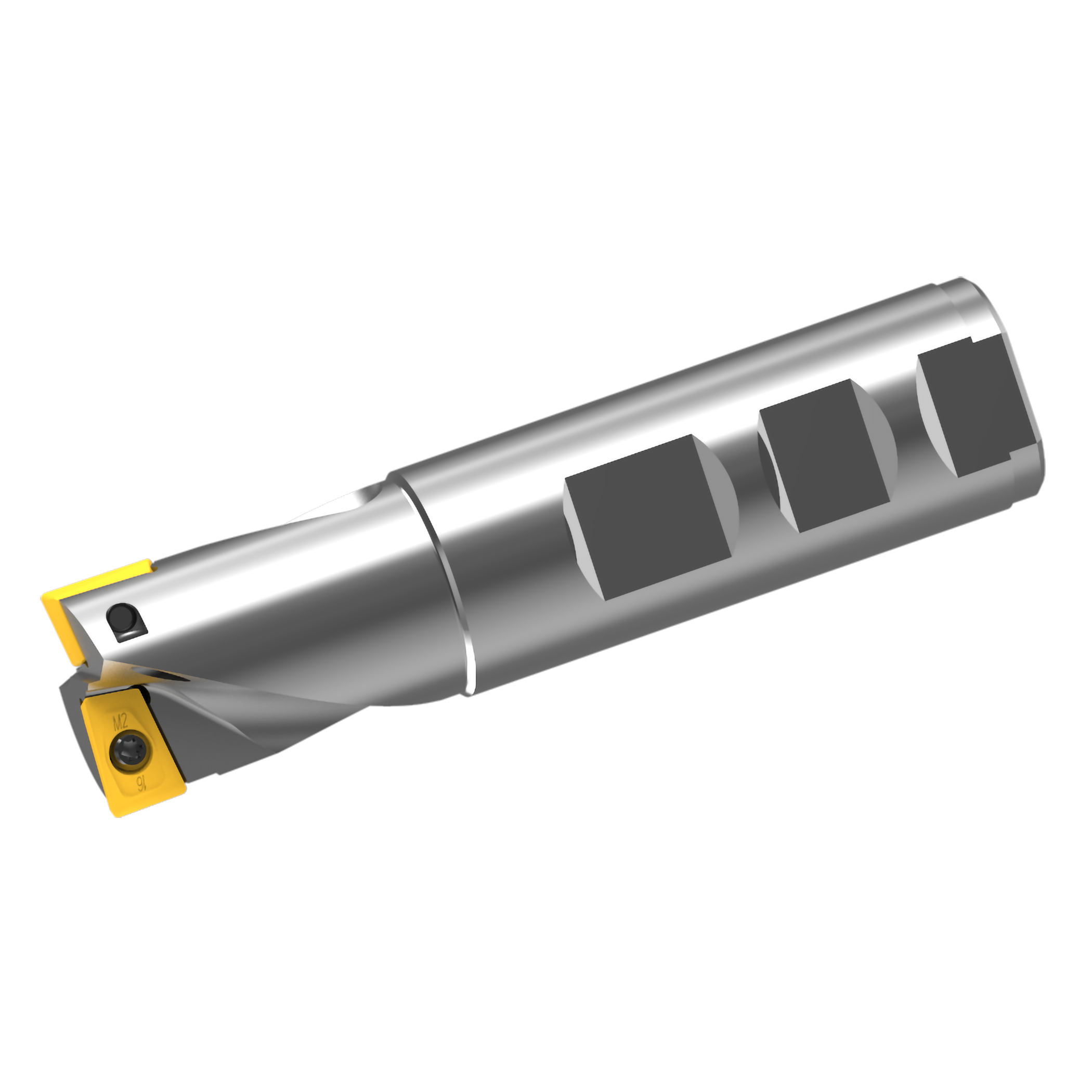

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：202067

EAN Code： 4994196317973

ANSI：AQXUR202WA20S

Stock：18 pcs

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
31.75
OAL
133.35
DCONMS
31.75
LH
50.8
B2
3.5°
KAPR
90°
APMX
14.3
A3
9.5
CSP
◯
CICT
2
ZEFP
1
ZEFF
1
