XBSH_S

XBSH_S （Steel shank without coolant hole）

  • Type1
  • Type2

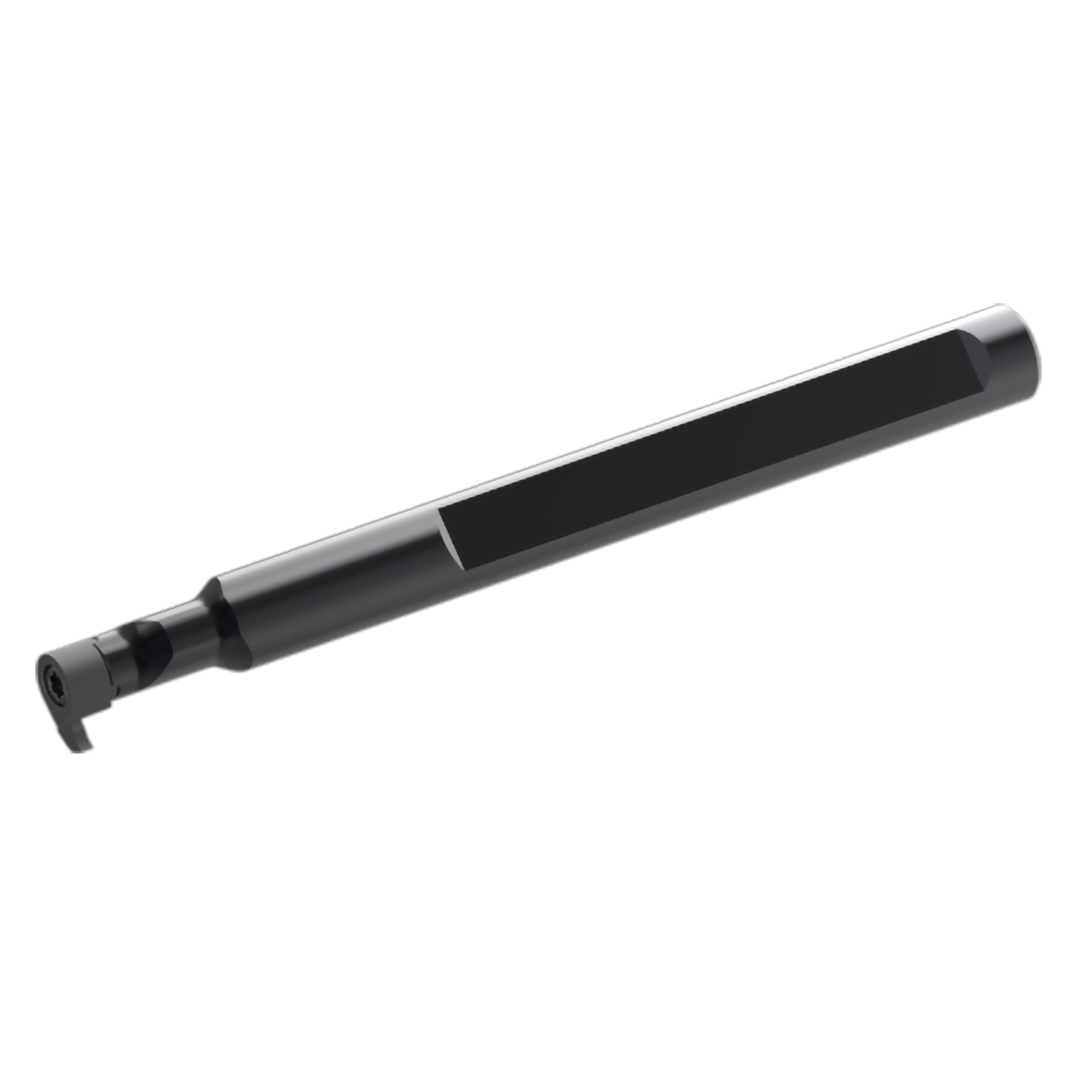

XBSH_S

  • Head-Changeable Turning Tool
  • Versatile Range of Applications with One Holder
  • Machining Threads Instead of Tapping

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock HAND DCONMS D2 D3 LDRED LF MIID CICT Applicable_Inserts
23885073 XBSH070700080S Type 1 Right Hand 7 4.8 6 12 80 XBSG08H07100R005R 1 XB〇〇〇〇H07
23885080 XBSH080700080S Type 2 Right Hand 7 6 - 12 80 XBSG08H08100R005R 1 XB〇〇〇〇08
23885097 XBSH091000080S Type 1 Right Hand 10 6.6 7.4 14 80 XBSG09H09100R005R 1 XB〇〇〇〇H09
23885103 XBSH111000080S Type 2 Right Hand 10 8 - 16 80 XBSG11H11100R005R 1 XB〇〇〇〇H11
23885110 XBSH141200080S Type 1 Right Hand 12 9.5 11 18 80 XBSG14H14100R005R 1 XB〇〇〇〇H14

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
