XBSH_C-C

XBSH_C-C （Carbide shank with coolant hole）

NEW
  • Type1
  • Type2

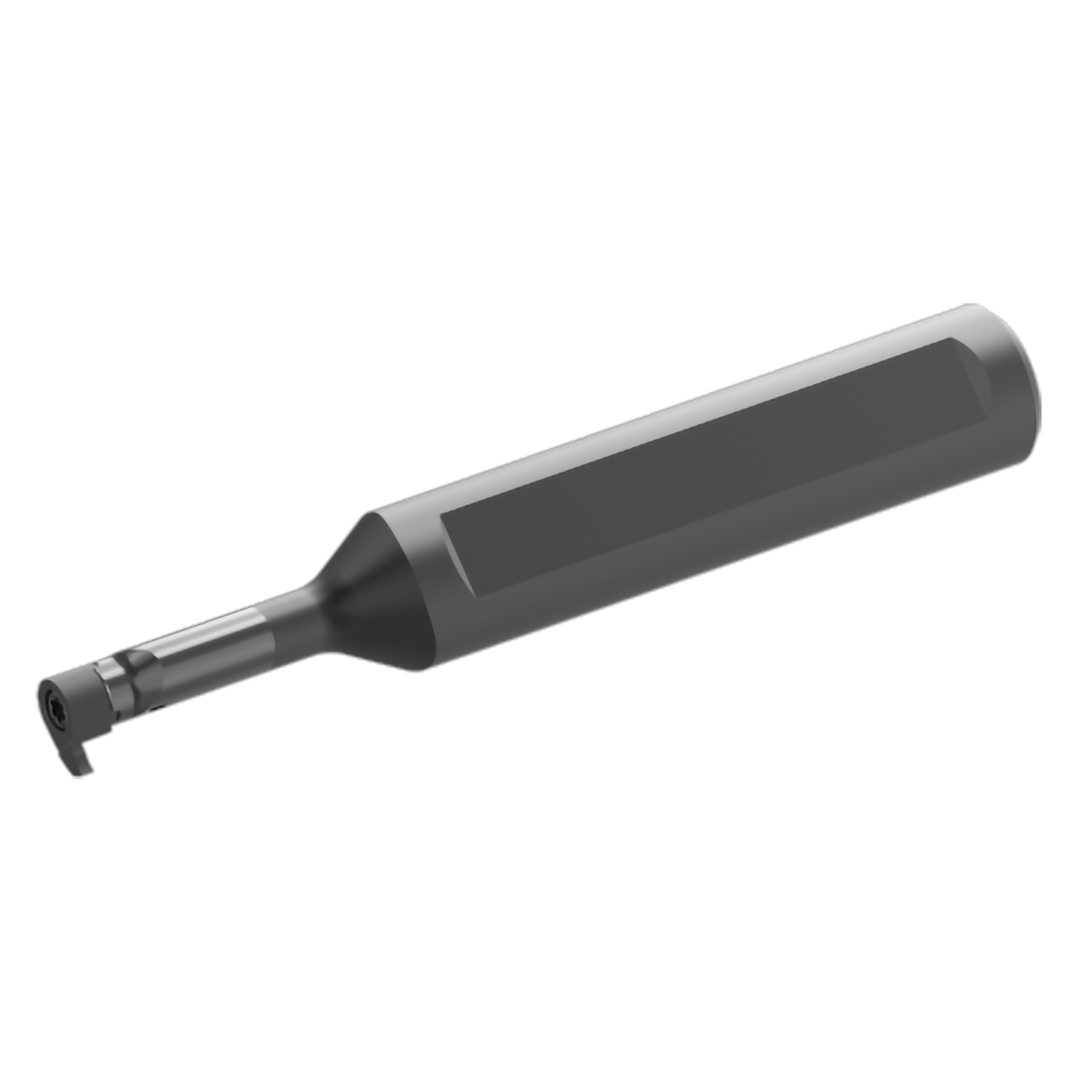

XBSH_C-C

  • Head-Changeable Turning Tool
  • Versatile Range of Applications with One Holder
  • Machining Threads Instead of Tapping

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock HAND DCONMS D2 D3 LDRED LF MIID CICT Applicable_Inserts
23885127 XBSH071200080C-C Type 1 Right Hand 12 4.8 6 21 80 XBSG08H07100R005R 1 XB〇〇〇〇H07
23885134 XBSH081200080C-C Type 2 Right Hand 12 6 - 21 80 XBSG08H08100R005R 1 XB〇〇〇〇H08
23885141 XBSH091200090C-C Type 1 Right Hand 12 6.6 7.4 22 90 XBSG09H09100R005R 1 XB〇〇〇〇H09
23885158 XBSH091200098C-C Type 1 Right Hand 12 6.6 7.4 30 98 XBSG09H09100R005R 1 XB〇〇〇〇H09
23885165 XBSH111200095C-C Type 2 Right Hand 12 8 - 29 95 XBSG11H11100R005R 1 XB〇〇〇〇H11
23885172 XBSH111200110C-C Type 2 Right Hand 12 8 - 42 110 XBSG11H11100R005R 1 XB〇〇〇〇H11
23885189 XBSH141200100C-C Type 1 Right Hand 12 9.5 11 34 100 XBSG14H14100R005R 1 XB〇〇〇〇H14
23885196 XBSH141200110C-C Type 1 Right Hand 12 9.5 11 45 110 XBSG14H14100R005R 1 XB〇〇〇〇H14
24346580 XBSH181600100C-C Type 1 Right Hand 16 11.5 14.3 42 100 XBSG20H18150R020R 1 XB〇〇〇〇H18
24346597 XBSH181600130C-C Type 1 Right Hand 16 11.5 14.3 60 130 XBSG20H18150R020R 1 XB〇〇〇〇H18

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
