Rotating Tools

End mill

Exchangeable Head Type

iMX

iMX_ER Collet

NEW
  • Type1
  • Type2

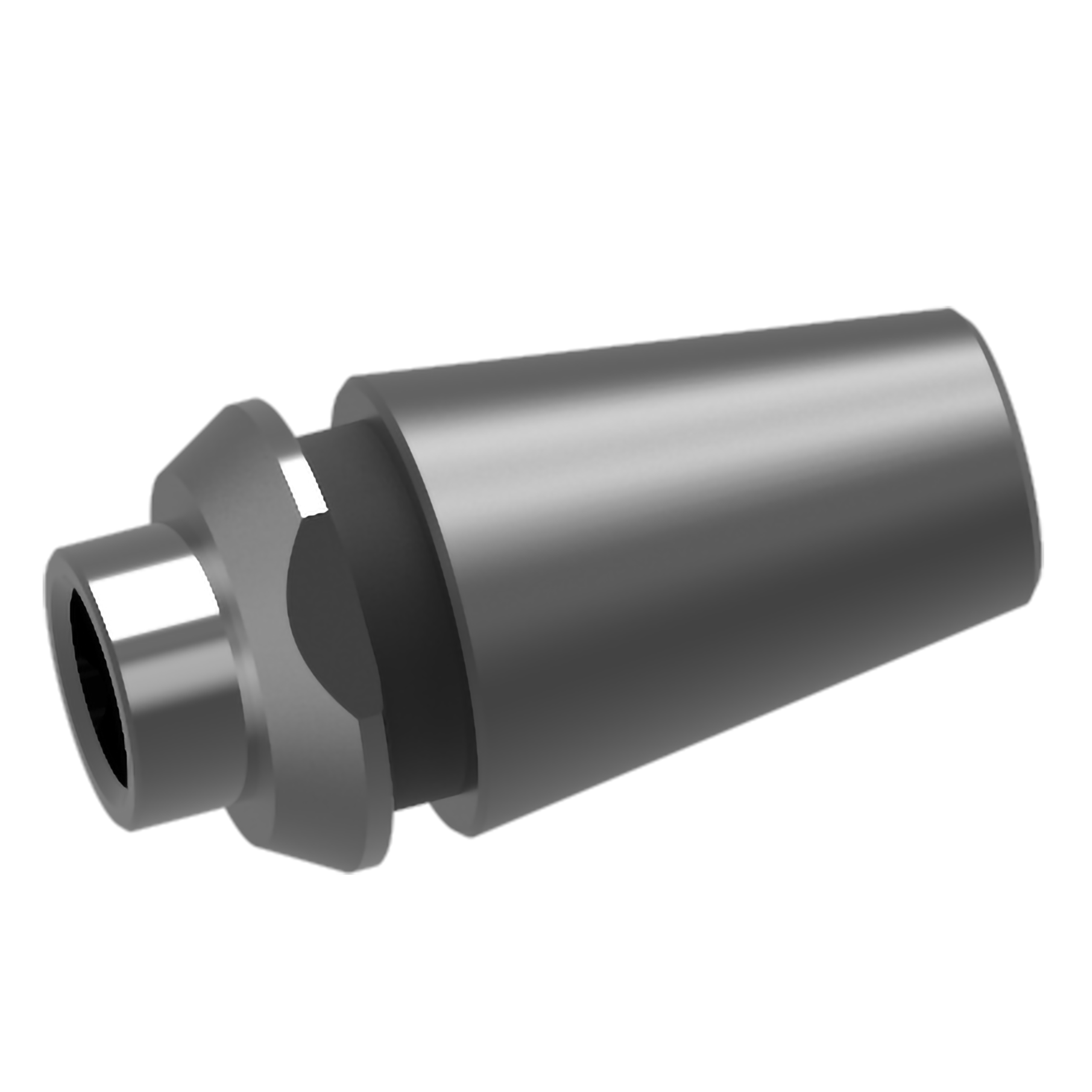

iMX_ER Collet

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Product List(XLSX)
EDP Order Number Type Stock Tool_Material UST DCONWS DFC LF CSP
24013710 IMX10-S04-ER16 Type 1 Steel M 9.7 11 ◯
24013727 IMX10-S04-ER20 Type 2 Steel M 9.7 11.9 ◯
24013734 IMX10-S04-ER25 Type 2 Steel M 9.7 12.4 ◯
24013741 IMX10-S04-ER32 Type 2 Steel M 9.7 13.4 ◯
24013758 IMX12-S05-ER16 Type 1 Steel M 11.7 12 ◯
24013765 IMX12-S05-ER20 Type 2 Steel M 11.7 12.9 ◯
24013772 IMX12-S05-ER25 Type 2 Steel M 11.7 13.4 ◯
24013789 IMX12-S05-ER32 Type 2 Steel M 11.7 14.4 ◯
24013796 IMX16-S08-ER25 Type 2 Steel M 15.5 16.4 ◯
24013802 IMX16-S08-ER32 Type 2 Steel M 15.5 17.4 ◯
24013819 IMX20-S10-ER32 Type 2 Steel M 19.5 19.4 ◯
24013826 IMX25-S12-ER32 Type 1 Steel M 24.5 21.9 ◯

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
