SRF_Steel-Shank_MM （Ball Nose / Radius End Milling）

P K N H
  • Type1
  • Type2
  • Type3
  • Type4
  • Type5
  • Type11

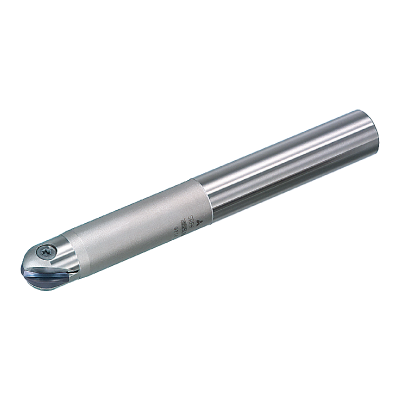

SRF_Steel-Shank_MM

  • Indexable End Mill for Finishing
  • Highly accurate corner radius tolerance allows for high precision finishing.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure
EDP Order Number Type Stock UST HAND DC LF DCONMS LH B2 LU BD B5 RPMX CSP CICT ZEFP GAMP GAMF WT
448315 SRFH10S12L Type 1 | Type 2 M Right Hand 10 150 12 60 1.5 ° 13 9.5 1.5 - 1 2
448294 SRFH10S12M Type 1 | Type 2 M Right Hand 10 110 12 40 1.633 ° 13 9.5 1.5 - 1 2
448323 SRFH12S16L Type 1 | Type 2 M Right Hand 12 160 16 70 1.783 ° 15 11.5 1.5 - 1 2
349456 SRFH12S16M Type 2 | Type 1 M Right Hand 12 120 16 50 2.6 ° 15 11.5 1.5 - 1 2
427936 SRFH16S20L Type 2 | Type 1 M Right Hand 16 160 20 70 1.85 ° 20 15.5 1.5 - 1 2
349114 SRFH16S20M Type 1 | Type 2 M Right Hand 16 130 20 50 2.733 ° 20 15.5 1.5 - 1 2
448374 SRFH20S20E120 Type 3 | Type 4 M Right Hand 20 220 20 120 24 19.5 - 1 2
448340 SRFH20S20L80 Type 4 | Type 3 M Right Hand 20 180 20 80 24 19.5 - 1 2
448366 SRFH20S25E Type 5 | Type 4 M Right Hand 20 220 25 120 1.5 ° 24 19.5 1.5 - 1 2
448331 SRFH20S25L Type 2 | Type 1 M Right Hand 20 180 25 80 2.05 ° 24 19.5 1.5 - 1 2
346714 SRFH20S25M Type 2 | Type 1 M Right Hand 20 150 25 70 2.383 ° 24 19.5 1.5 - 1 2
448391 SRFH25S25E150 Type 4 | Type 3 M Right Hand 25 250 25 150 30 24.5 - 1 2
448358 SRFH25S25L100 Type 3 | Type 4 M Right Hand 25 200 25 100 30 24.5 - 1 2
448382 SRFH25S32E Type 5 | Type 6 M Right Hand 25 250 32 150 1.5 ° 30 24.5 1.5 - 1 2
317788 SRFH25S32L Type 1 | Type 2 M Right Hand 25 200 32 100 2.283 ° 30 24.5 1.5 - 1 2
355135 SRFH25S32M Type 1 | Type 2 M Right Hand 25 180 32 80 2.967 ° 30 24.5 1.5 - 1 2
448403 SRFH30S32E Type 4 | Type 3 M Right Hand 30 300 32 200 35 29.5 - 1 2
418677 SRFH30S32L Type 4 | Type 3 M Right Hand 30 230 32 130 35 29.5 - 1 2
383371 SRFH30S32M Type 3 | Type 4 M Right Hand 30 200 32 100 35 29.5 - 1 2
448307 SRFH32S32M Type 4 | Type 3 M Right Hand 32 200 32 100 35 31.5 - 1 2
