Rotating Tools

Indexable Milling

Chamfer Milling

CESP

CESP_Shank_MM （Chamfer Milling）

P K

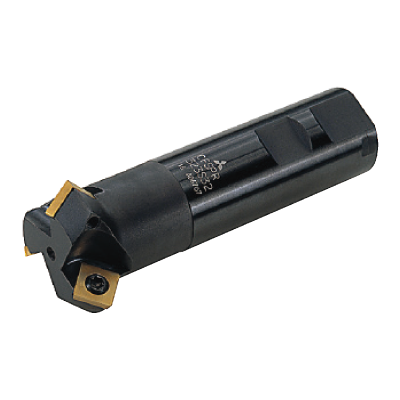

  • Type1
  • Chamfer Milling
  • Covers 5 cutting modes.
  • Excellent sharpness with 11°positive inserts.
  • 30°, 45° and 60° chamfer series.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions
EDP Order Number Type Stock UST HAND KAPR DC DCX LF DN DCONMS LH APMX RPMX CSP CICT ZEFP GAMP GAMF WT

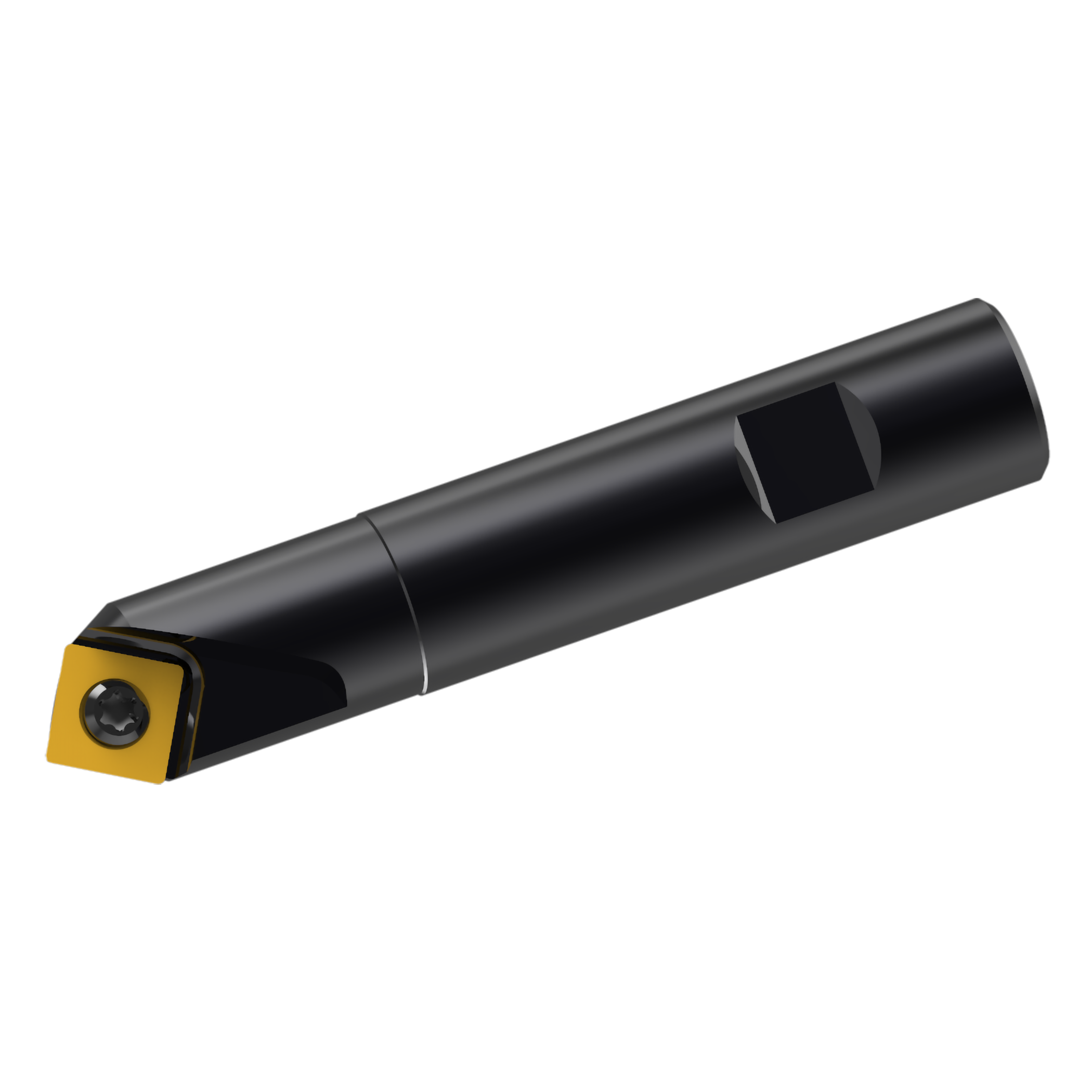

100660 CESPR081S20 Type 1 M Right Hand 60 ° 8 19.73 85 19.5 20 40 10.2 - 1 1
10025888 CESPR161S20 Type 1 M Right Hand 60 ° 16 27.8 85 19.5 20 40 10.2 - 1 1
376737 CESPR323S32 Type 1 M Right Hand 60 ° 32 43.8 89 31.5 32 45 10.2 - 3 3
