CBJP_Shank_MM （Spot Milling）

P M K
  • Type1

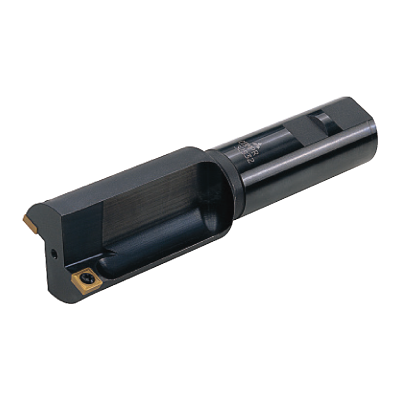

CBJP_Shank_MM

  • Spot Milling
  • Capable of spot facing machining, boring and interpolation.
  • For seat machining of hexagon socket head bolt (M8-M30).
  • 86°rhombic shape 11°positive insert.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock UST HAND DC LF DCONMS LH LU D10 KAPR RPMX CSP CICT ZEFP GAMP GAMF WT
10022276 CBJPR141S25 Type 1 M Right Hand 14 76 25 28 21 3.1 94 ° - 1 1 5 ° -10 °
419426 CBJPR172S25 Type 1 M Right Hand 17.5 83 25 35 26 5.3 94 ° - 2 2 5 ° -2 °
307029 CBJPR202S25 Type 1 M Right Hand 20 88 25 40 30 7.8 94 ° - 2 2 5 ° -2 °
185439 CBJPR232S25 Type 1 M Right Hand 23 94 25 46 34.5 10.8 94 ° - 2 2 5 ° 0

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
