Turning Tools

Grooving GY Series

Modular Holder

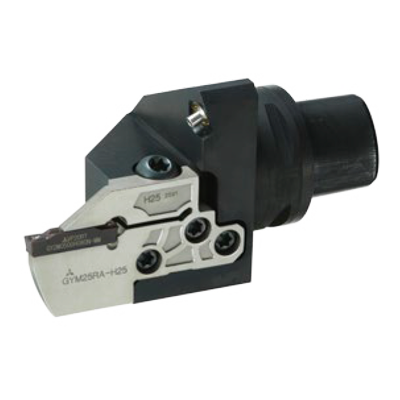

C4-GYHELM00-M25L

C4-GYHELM00-M25L

  • Providing a wide range of machining choices.｜Coolant nozzles with adjustable angles｜PSC system

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：10628317

2D CAD data(DXF) 3D CAD data(STP)Detailed Product Brochure

Product Details
Stock
Inventory maintained.
UST
M
CSP
-
DCON
40
LF
57.5
WF
27
Shape EDP Order Number Stock Category Bundled quantity
