Turning Tools

Grooving GY Series

Modular Holder

GYHR3232P00-M25R

GYHR3232P00-M25R

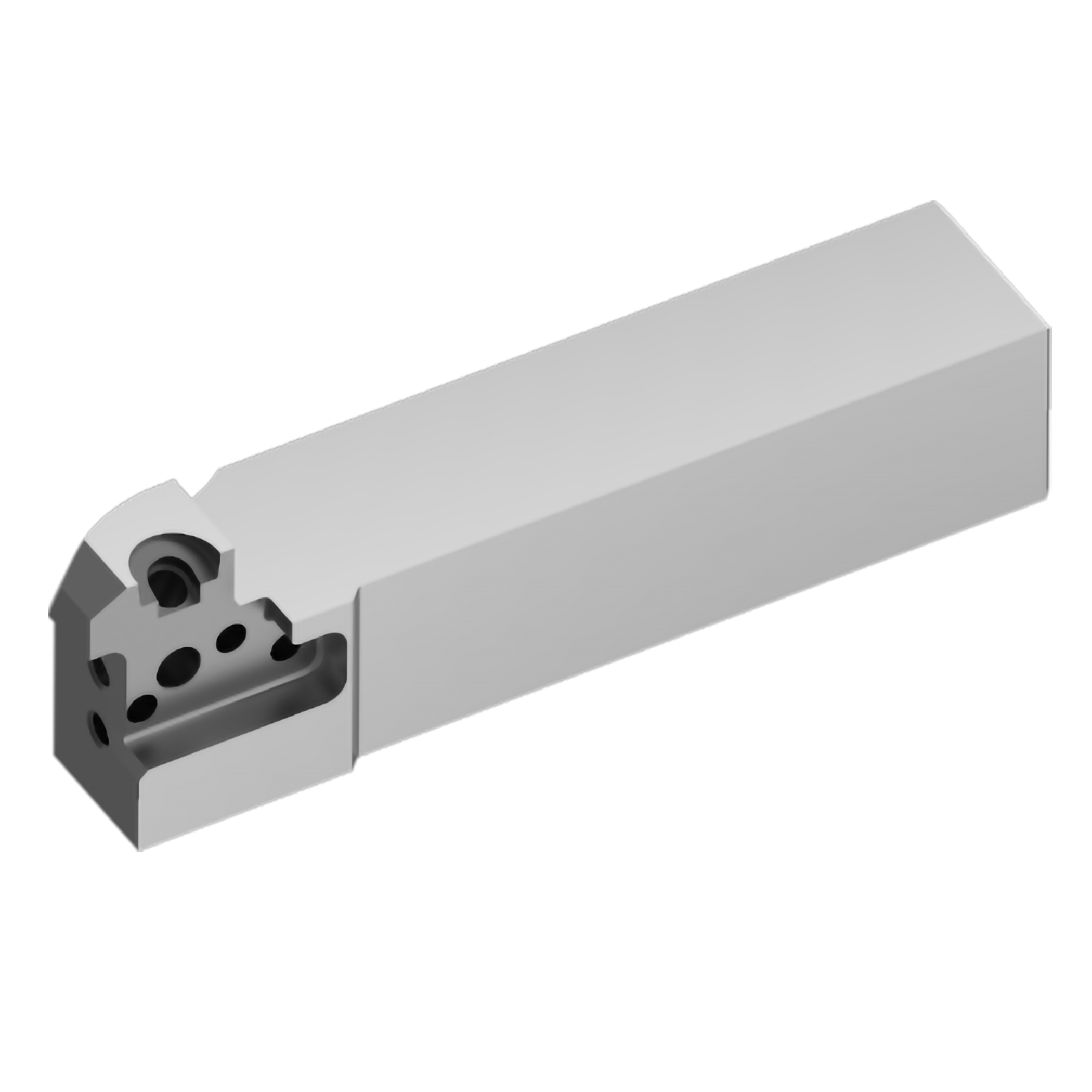

  • Clamp-on type.
  • The modular blade allows for high rigidity and accuracy. (Triforce System)
  • Various insert types.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：540146

JAN Code：4994196561253

2D CAD data(DXF) 3D CAD data(STP)Detailed Product Brochure
