SPX4-063A24A058RA

SPX4-063A24A058RA

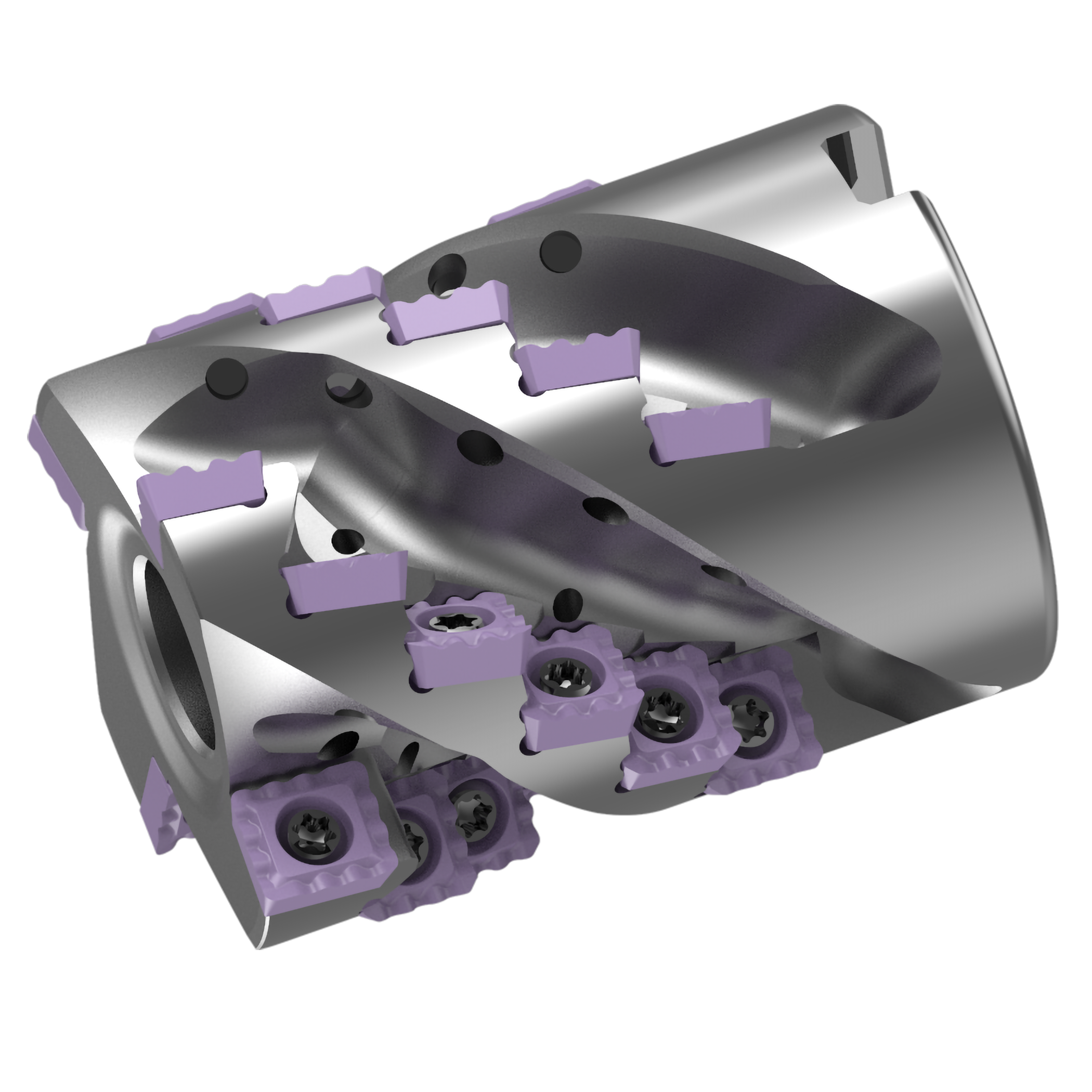

  • Indexable End Mill for Deep Shoulder Milling
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：544593

JAN Code： 4994196569198

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DC
63
LF
85
DCONMS
27
CBDP
28
DAH
13
DCCB
20
KWW
12.4
L8
7
DHUB
60
KAPR
90°
APMX
58
CSP
◯
CICT
24
ZEFP
4
WT
1.61 kg
