Turning Tools

Turning Holder

Internal Turning

RBH

Round Type RBH

RBH2230N

RBH2230N

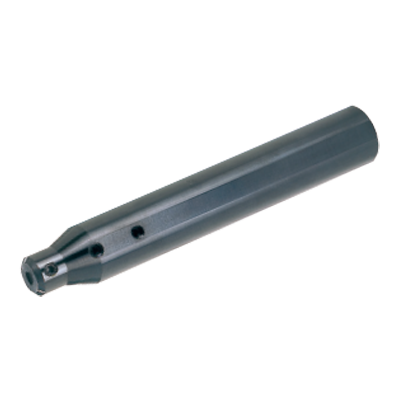

  • Boring Bars
  • Round type holder (For MICRO-DEX/MICROMINI type boring bar)

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：297713

JAN Code： 4994196333225

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)

Product Details
Stock
Inventory maintained.
DCONMS
22
DCONWS
3
LF
125
BD
12
LPR
20
S10
5
S11
10
S12
10
S13
10
