SRFH12S12LW - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

Rotating Tools

Indexable Milling

Ball Nose and Radius End Mill

SRF

SRF_Carbide_Shank_MM （Ball Nose / Radius End Milling）

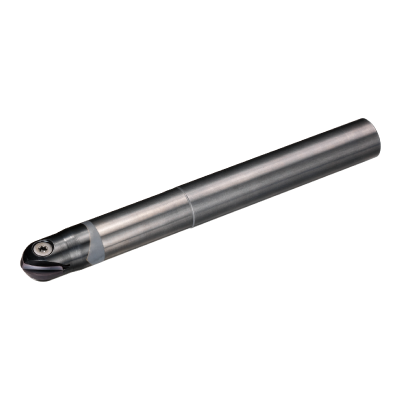

Indexable End Mill for Finishing
Highly accurate corner radius tolerance allows for high precision finishing.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：448497

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product Brochure

Product Details

Stock: Inventory maintained.
UST: M
HAND: Right Hand
DC: 12
LF: 160
DCONMS: 12
LH: 70
LU: 15
BD: 11.5
CSP: -
CICT: 1
ZEFP: 2
