BXD4000

BXD4000_Shank_MM （Aluminium Alloy to Difficult-to-cut Material Cutting）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_90_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_90_Helical%2520Drilling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_30_Milling_Application_Pocket%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_20_Milling_Application_Slot%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_25_Milling_Application_Ramping.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_18_Milling_Application_Face_milling_near_the_Wall.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_10_Milling_Application_Shoulder%2520milling_1.svg
P M N S H

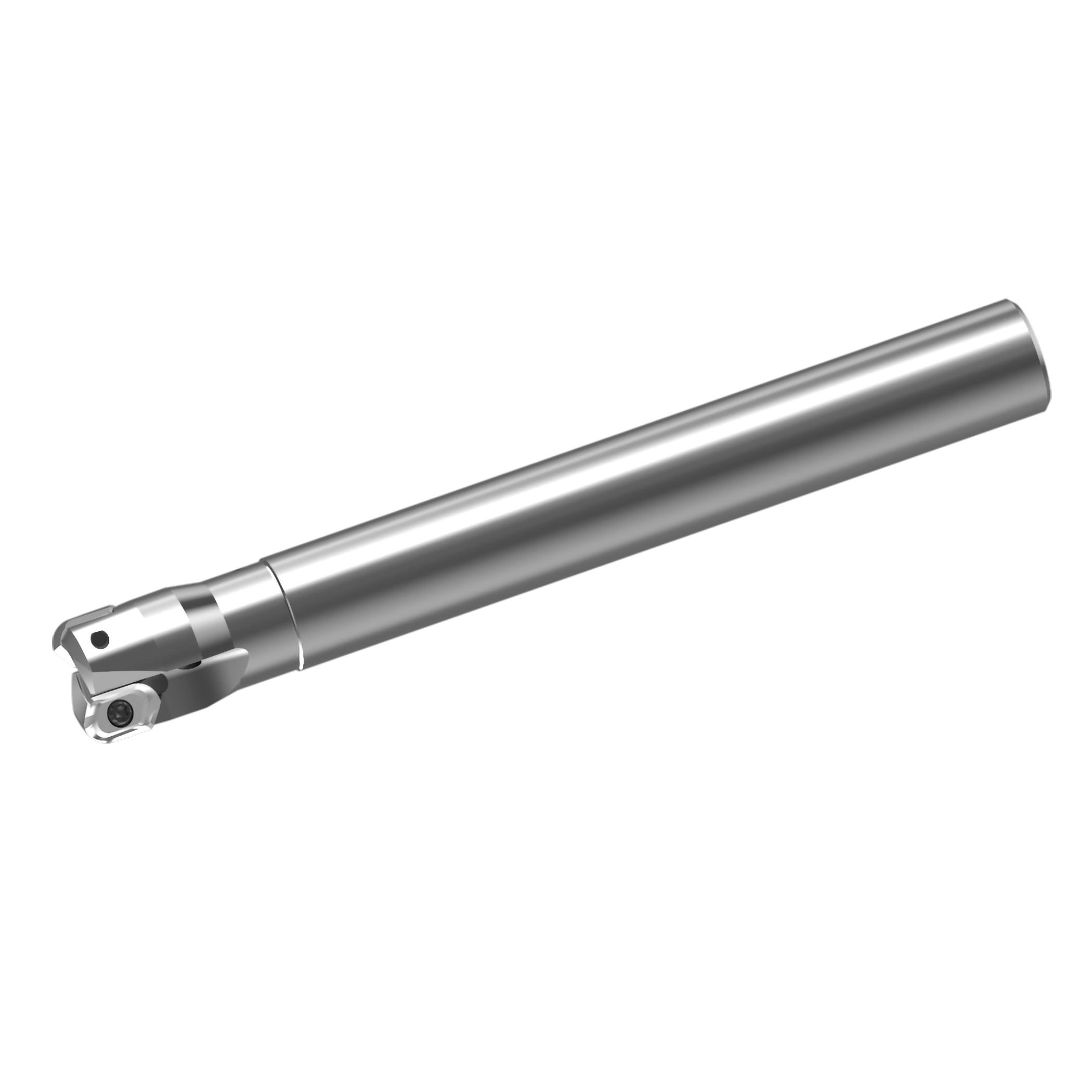

BXD4000R282SA25ELB

BXD4000R282SA25ELB

  • For Aluminum and Difficult-to-cut Materials
  • Curved cutting edge and high rigidity holder produce high wall accuracy.
  • Low resistance insert and high rigidity design for excellent performance.
  • With through coolant holes to ensure smooth chip discharge.
  • For high-speed machining.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：491330

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
UST
M
HAND
Right Hand
DC
28
LF
220
DCONMS
25
LH
50
KAPR
90°
APMX
15
RMPX
17°
RPMX
35000
CSP
◯
CICT
2
ZEFP
2
Shape EDP Order Number Stock Category Bundled quantity
