AXD4000-040A03RA - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

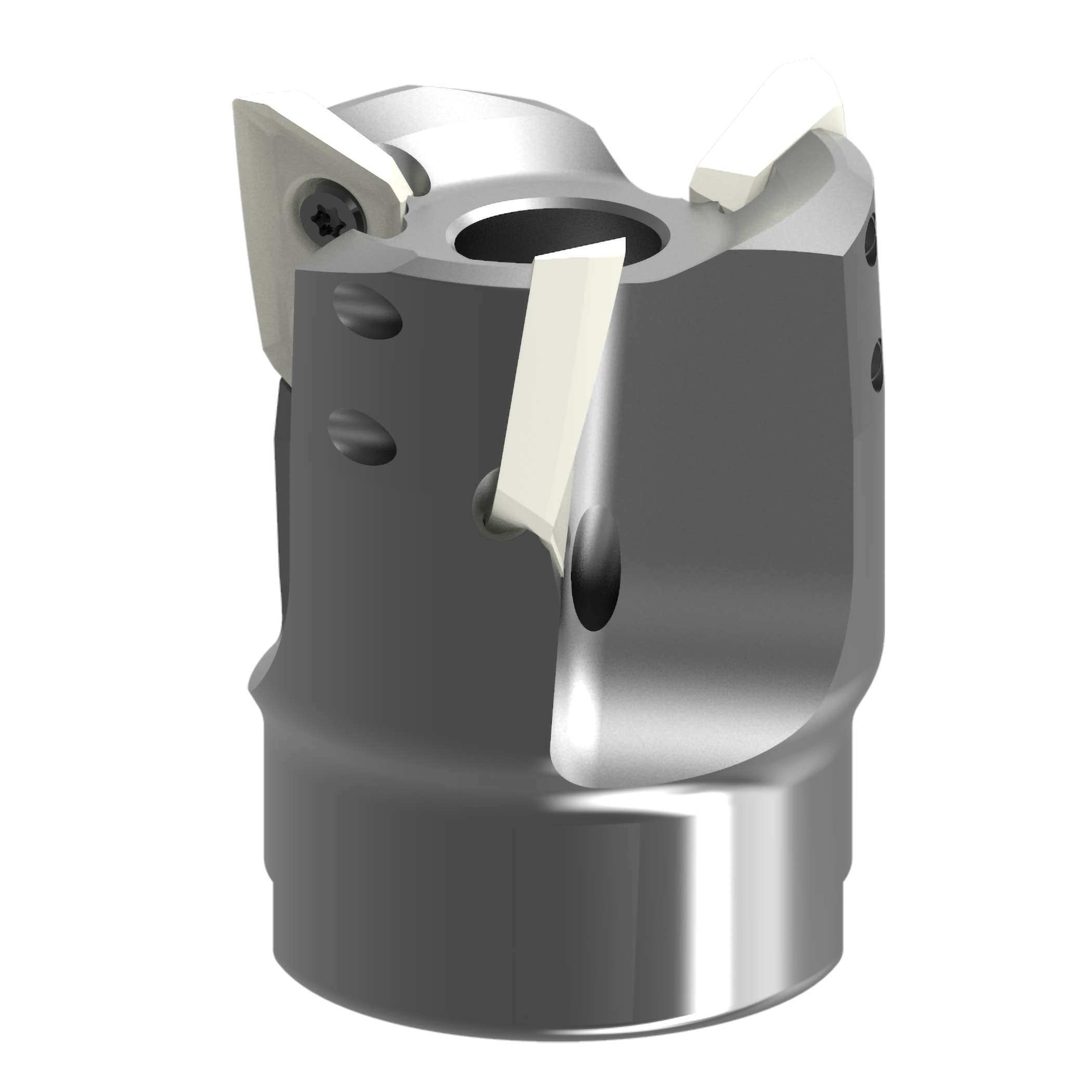

Milling Cutter for Aluminium and Titanium Alloys
Low resistance chipbreaker.
Excellent wall accuracy.
For high-speed machining.
Multi-functional machining.
With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：566872

JAN Code： 4994196575748

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details

Stock: Inventory maintained.
HAND: Right Hand
DC: 40
LF: 50
DCONMS: 16
CBDP: 18
DAH: 8.5
DCCB: 12
KWW: 8.4
L8: 5.6
DHUB: 34
KAPR: 90°
APMX: 15.5
RPMX: 41000
CSP: ◯
CICT: 3
ZEFP: 3
GAMP: 14°
GAMF: 21°
WT: 0.3 kg
