FSWL110L - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

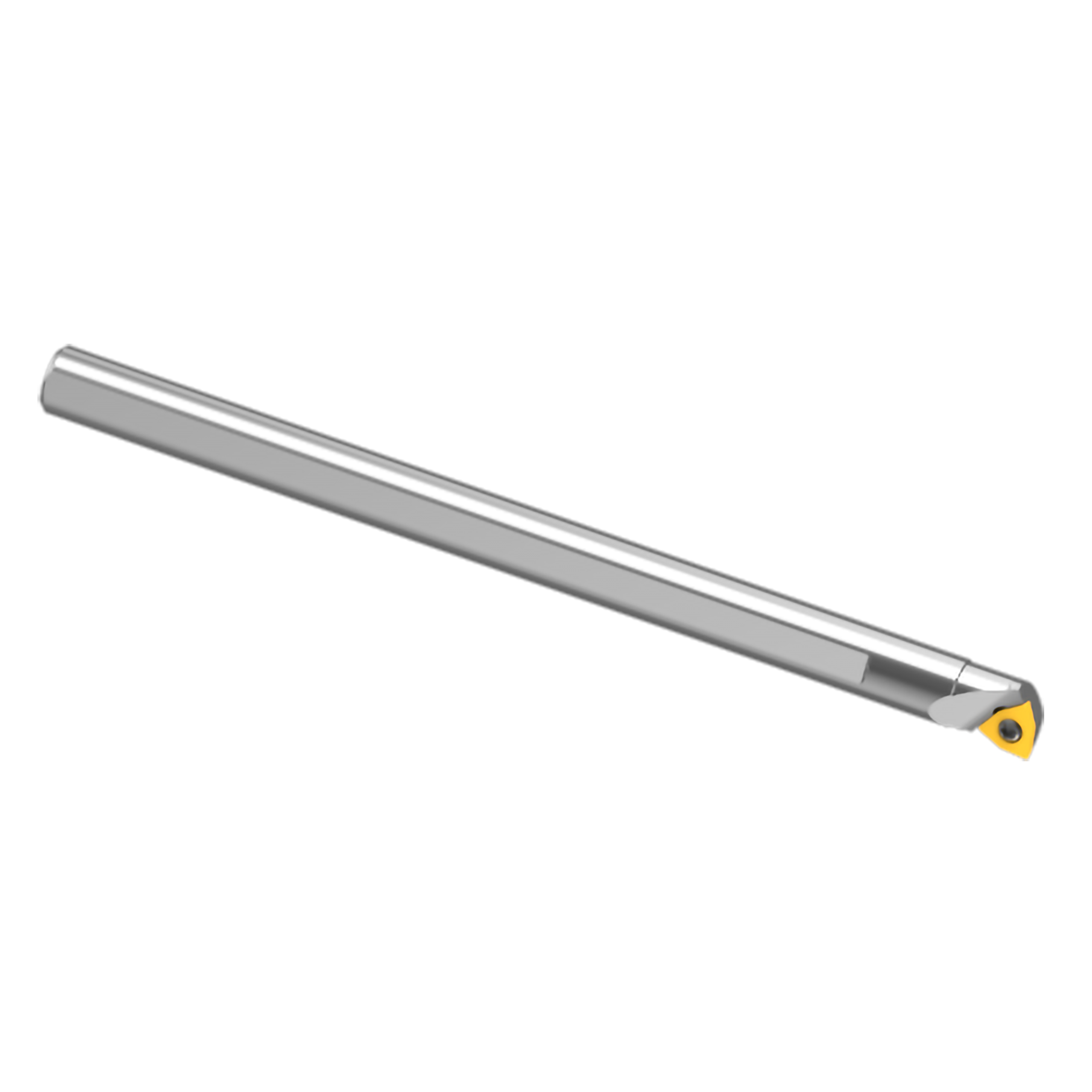

Boring Bars
Steel shank

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：10060445

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Cutting Condition Details

Stock: Inventory maintained.
UST: M
Hand: Left Hand
KAPR: 95°
DMIN: 12
DCONMS: 10
LF: 150
LDRED: 12
WF: 6
H: 9
GAMF: 13°
CSP: -
CICT: 1
Applicable_Inserts: WCMT0402〇〇,WCMW0402〇〇
