Turning Tools

Grooving Inserts

Insert for F Type Holder

P M

MLT1001L

MLT1001L

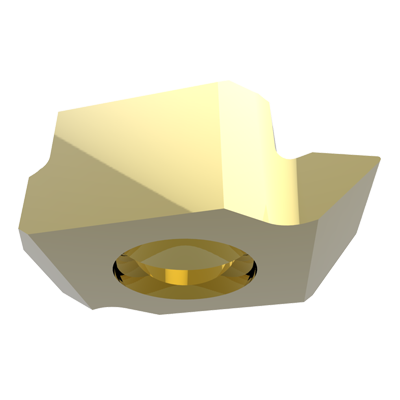

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：103087

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
UP20M
HAND
Left Hand
INSL
7
S
5
W1
2.38
RE
0.1
PNA
60°
GAN
15°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
