Type1

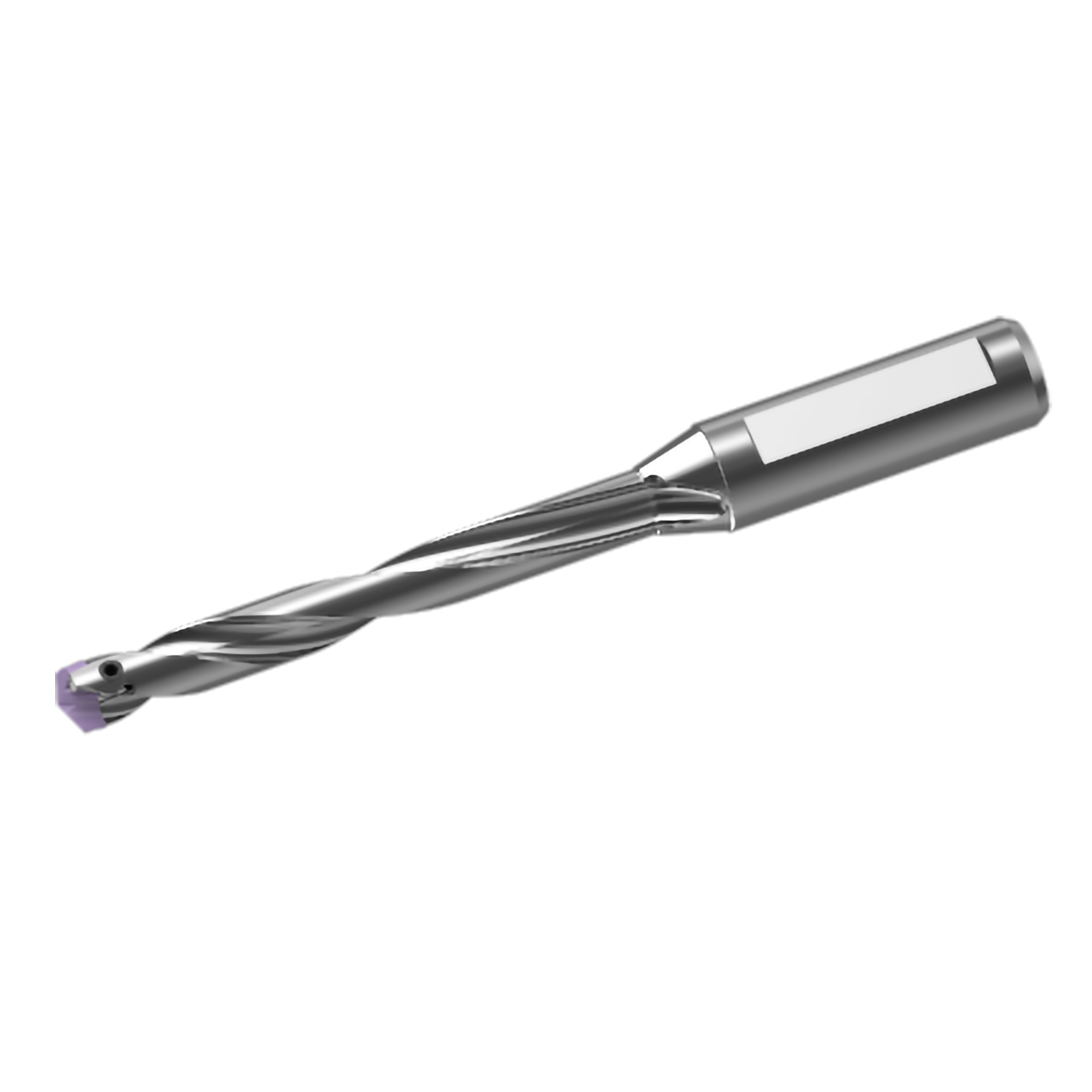

Exchangeable Head Type Carbide Drill
Wavy cutting edge design for good chip control.
Highly rigid clamping system offers stability and reliability for small hole drilling.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

EDP	Order Number	Type	qty.	DC	ULDR	LU	LPR	OAL	LF	PL	DCONMS	LUX	LS	SIG	FHA	CICT	ZEFF	CSP
646688	STAWLN1000S16	Type 1	Out of Stock	10	8	81.8	98.8	146.8	120.5	1.8	16	88.8	48	140 °	-	1	2	◯
541333	STAWMN1000S16	Type 1	Out of Stock	10	5	51.8	68.8	116.8	90.5	1.8	16	58.8	48	140 °	-	1	2	◯
541253	STAWSN1000S16	Type 1	Out of Stock	10	3	31.8	48.8	96.8	70.5	1.8	16	38.8	48	140 °	-	1	2	◯
646485	STAWSS1000S16	Type 1	Out of Stock	10	1.5	16.8	33.8	81.8	55.5	1.8	16	23.8	48	140 °	-	1	2	◯
646696	STAWLN1050S16	Type 1	Out of Stock	10.5	8	85.9	98.9	146.9	120.5	1.9	16	88.9	48	140 °	-	1	2	◯
541341	STAWMN1050S16	Type 1	Out of Stock	10.5	5	54.4	68.9	116.9	90.5	1.9	16	58.9	48	140 °	-	1	2	◯
541261	STAWSN1050S16	Type 1	Out of Stock	10.5	3	33.4	48.9	96.9	70.5	1.9	16	38.9	48	140 °	-	1	2	◯
646493	STAWSS1050S16	Type 1	Out of Stock	10.5	1.5	17.7	33.9	81.9	55.5	1.9	16	23.9	48	140 °	-	1	2	◯
646709	STAWLN1100S16	Type 1	Out of Stock	11	8	90	109	157	130.5	2	16	98	48	140 °	-	1	2	◯
541350	STAWMN1100S16	Type 1	Out of Stock	11	5	57	79	127	100.5	2	16	68	48	140 °	-	1	2	◯
541270	STAWSN1100S16	Type 1	Out of Stock	11	3	35	54	102	75.5	2	16	43	48	140 °	-	1	2	◯
646506	STAWSS1100S16	Type 1	Out of Stock	11	1.5	18.5	38	86	59.5	2	16	27	48	140 °	-	1	2	◯
646717	STAWLN1150S16	Type 1	Out of Stock	11.5	8	94.1	109.1	157.1	130.5	2.1	16	98.1	48	140 °	-	1	2	◯
541368	STAWMN1150S16	Type 1	Out of Stock	11.5	5	59.6	79.1	127.1	100.5	2.1	16	68.1	48	140 °	-	1	2	◯
541288	STAWSN1150S16	Type 1	Out of Stock	11.5	3	36.6	54.1	102.1	75.5	2.1	16	43.1	48	140 °	-	1	2	◯
646514	STAWSS1150S16	Type 1	Out of Stock	11.5	1.5	19.4	38.1	86.1	59.5	2.1	16	27.1	48	140 °	-	1	2	◯
646725	STAWLN1200S16	Type 1	Out of Stock	12	8	98.3	119.2	167.2	140.5	2.2	16	107.2	48	140 °	-	1	2	◯
541376	STAWMN1200S16	Type 1	Out of Stock	12	5	62.2	84.2	132.2	100.5	2.2	16	72.2	48	140 °	-	1	2	◯
541296	STAWSN1200S16	Type 1	Out of Stock	12	3	38.2	59.2	107.2	80.5	2.2	16	47.2	48	140 °	-	1	2	◯
646522	STAWSS1200S16	Type 1	Out of Stock	12	1.5	20.2	41.2	89.2	62.5	2.2	16	29.2	48	140 °	-	1	2	◯
