STAWSN1150S16

STAWSN1150S16

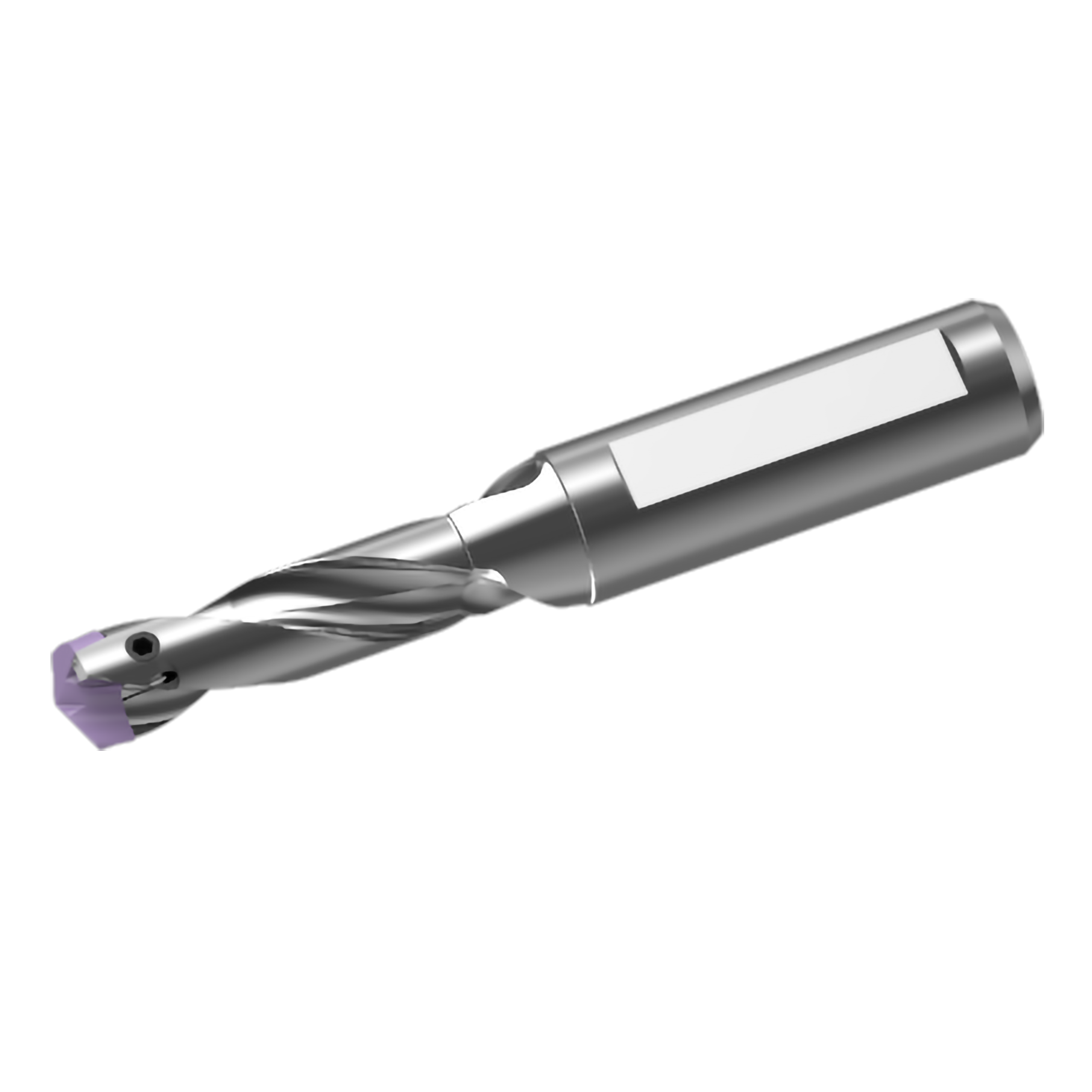

  • Exchangeable Head Type Carbide Drill
  • Wavy cutting edge design for good chip control.
  • Highly rigid clamping system offers stability and reliability for small hole drilling.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：541288

EAN Code： 4994196528416

ANSI：STAWSN1150S16

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained in Japan.
DC
11.5
ULDR
3
LU
36.6
LPR
54.1
OAL
102.1
LF
75.5
PL
2.1
DCONMS
16
LUX
43.1
LS
48
SIG
140°
CICT
1
ZEFF
2
CSP
◯
Shape EDP Order Number Stock Category Bundled quantity
