STAWMN1100S16

STAWMN1100S16

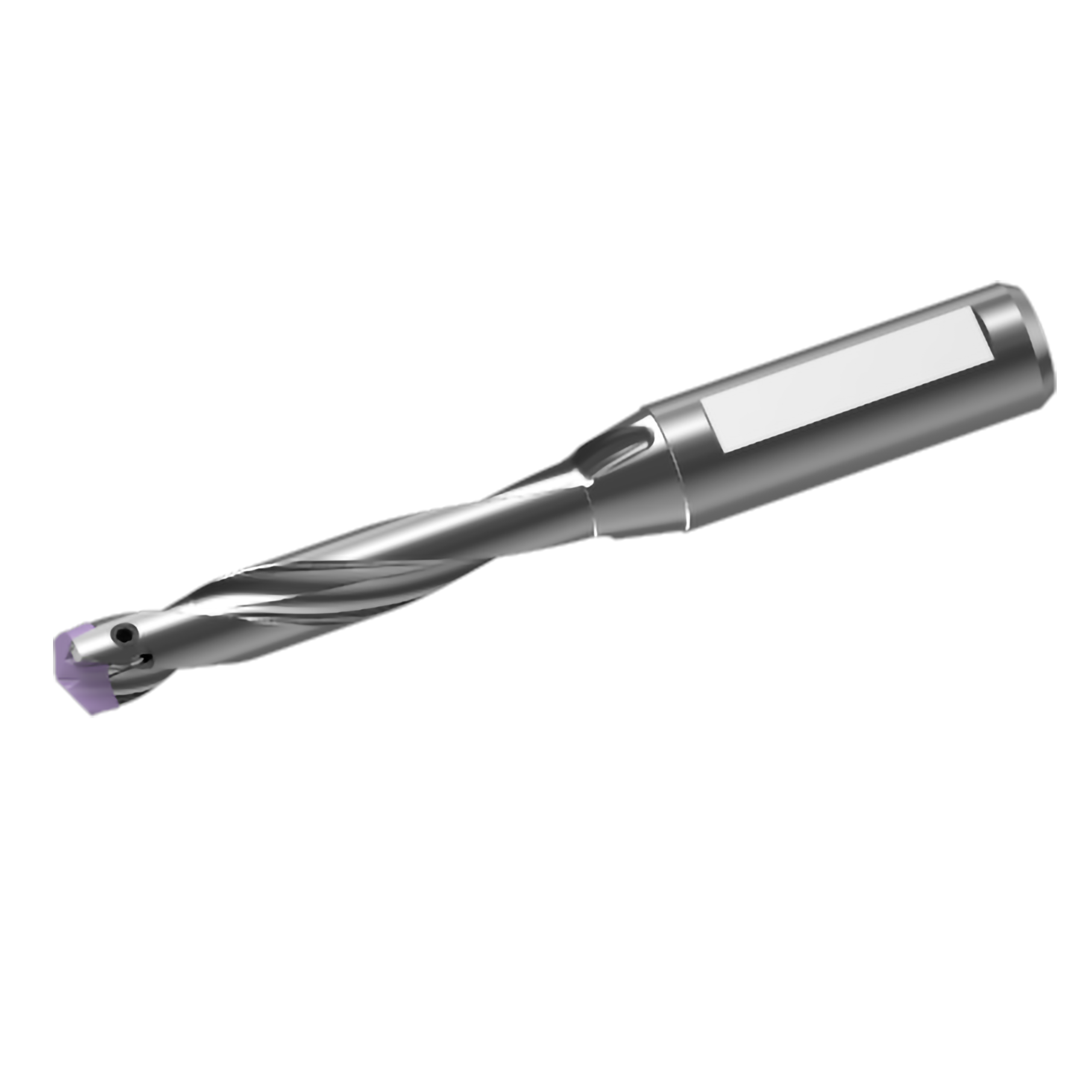

  • Exchangeable Head Type Carbide Drill
  • Wavy cutting edge design for good chip control.
  • Highly rigid clamping system offers stability and reliability for small hole drilling.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：541350

EAN Code： 4994196528485

ANSI：STAWMN1100S16

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

Product Details
Stock
Inventory maintained in Japan.
DC
11
ULDR
5
LU
57
LPR
79
OAL
127
LF
100.5
PL
2
DCONMS
16
LUX
68
LS
48
SIG
140°
CICT
1
ZEFF
2
CSP
◯
