Turning Tools

Turning Holder

Internal Turning

SLV

Round Type SLV

  • Type1
  • Type2

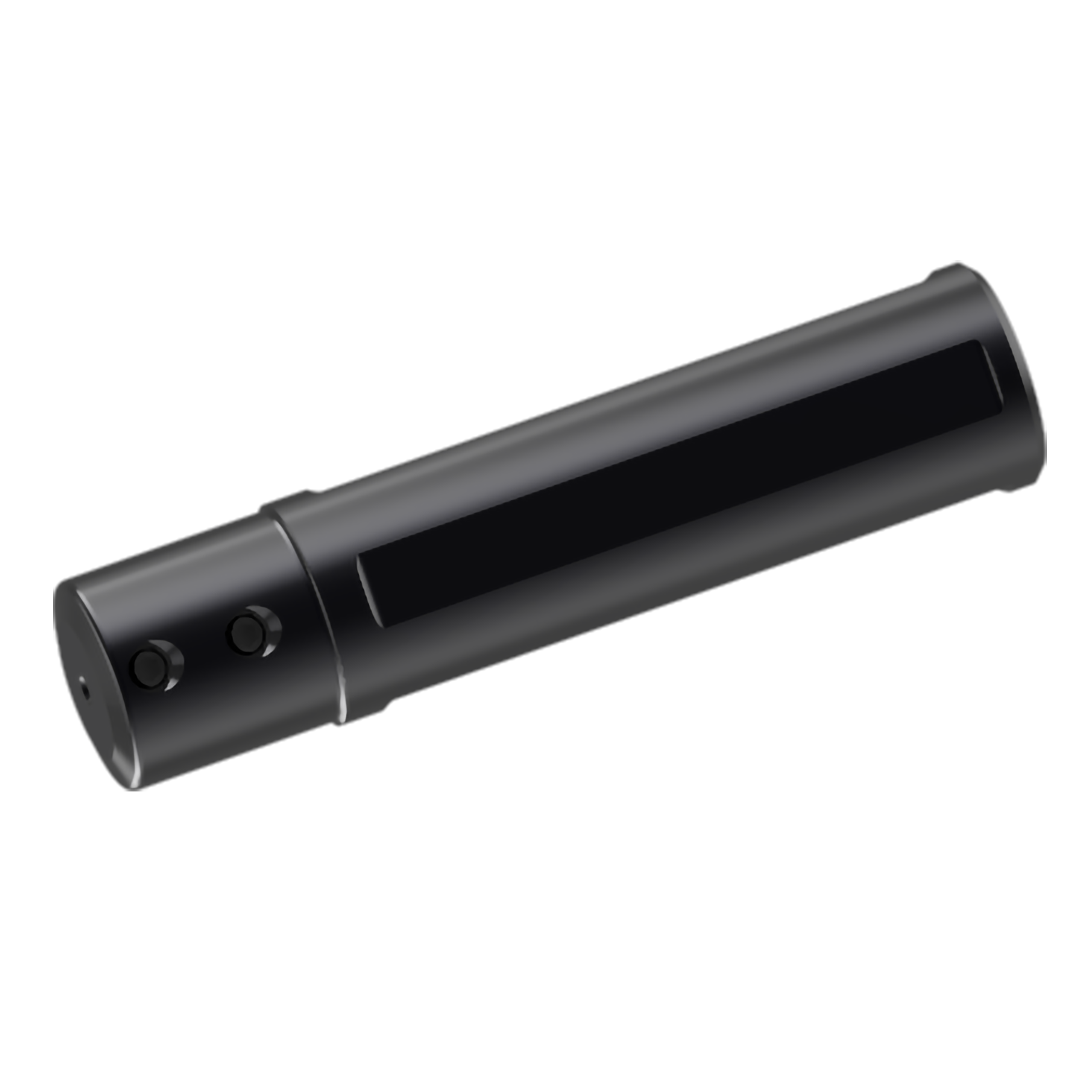

Round Type SLV

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)
EDP Order Number Type Stock qty. Price cart Tool_Material DCONMS DCONWS H B LF BD S10 S11 LPR CNT D2 CSP
23605251 SLV160085020N Type 1 Out of Stock - 16 2 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605268 SLV160085025N Type 1 Out of Stock - 16 2.5 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605275 SLV160085030N Type 1 Out of Stock - 16 3 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605282 SLV160085035N Type 1 Out of Stock - 16 3.5 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605299 SLV160085040N Type 1 Out of Stock - 16 4 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605305 SLV160085045N Type 1 Out of Stock - 16 4.5 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605312 SLV160085050N Type 1 Out of Stock - 16 5 14.4 14.4 85 15.5 4.5 9 20 - 8.3 -
23605329 SLV160085060N Type 1 Out of Stock - 16 6 14.4 14.4 85 15.5 5 10 20 - 8.3 -
23605343 SLV160085070N Type 1 Out of Stock - 16 7 14.4 14.4 85 15.5 5 10 20 - 8.3 -
23605350 SLV160085080N Type 1 Out of Stock - 16 8 14.4 14.4 85 15.5 5 10 20 - 8.3 -
23838949 SLV190080060A Type 2 Out of Stock - 19.05 6 17.8 17.8 80 18.5 5 10 20 RC1/8 - ◯
23605800 SLV190080060N Type 1 Out of Stock - 19.05 6 17.8 17.8 80 18.5 5 10 20 - 8.3 -
23838956 SLV190080070A Type 2 Out of Stock - 19.05 7 17.8 17.8 80 18.5 5 10 20 RC1/8 - ◯
23605817 SLV190080070N Type 1 Out of Stock - 19.05 7 17.8 17.8 80 18.5 5 10 20 - 8.3 -
23838963 SLV190080080A Type 2 Out of Stock - 19.05 8 17.8 17.8 80 18.5 5 10 20 RC1/8 - ◯
23605824 SLV190080080N Type 1 Out of Stock - 19.05 8 17.8 17.8 80 18.5 5 10 20 - 8.3 -
23605749 SLV190085020N Type 1 Out of Stock - 19.05 2 17.8 17.8 85 18.5 4.5 9 20 - 8.3 -
23602205 SLV190085025N Type 1 Out of Stock - 19.05 2.5 17.8 17.8 85 18.5 4.5 9 20 - 8.3 -
23838994 SLV190085030A Type 2 Out of Stock - 19.05 3 17.8 17.8 85 18.5 4.5 9 20 RC1/8 - ◯
23605763 SLV190085030N Type 1 Out of Stock - 19.05 3 17.8 17.8 85 18.5 4.5 9 20 - 8.3 -
