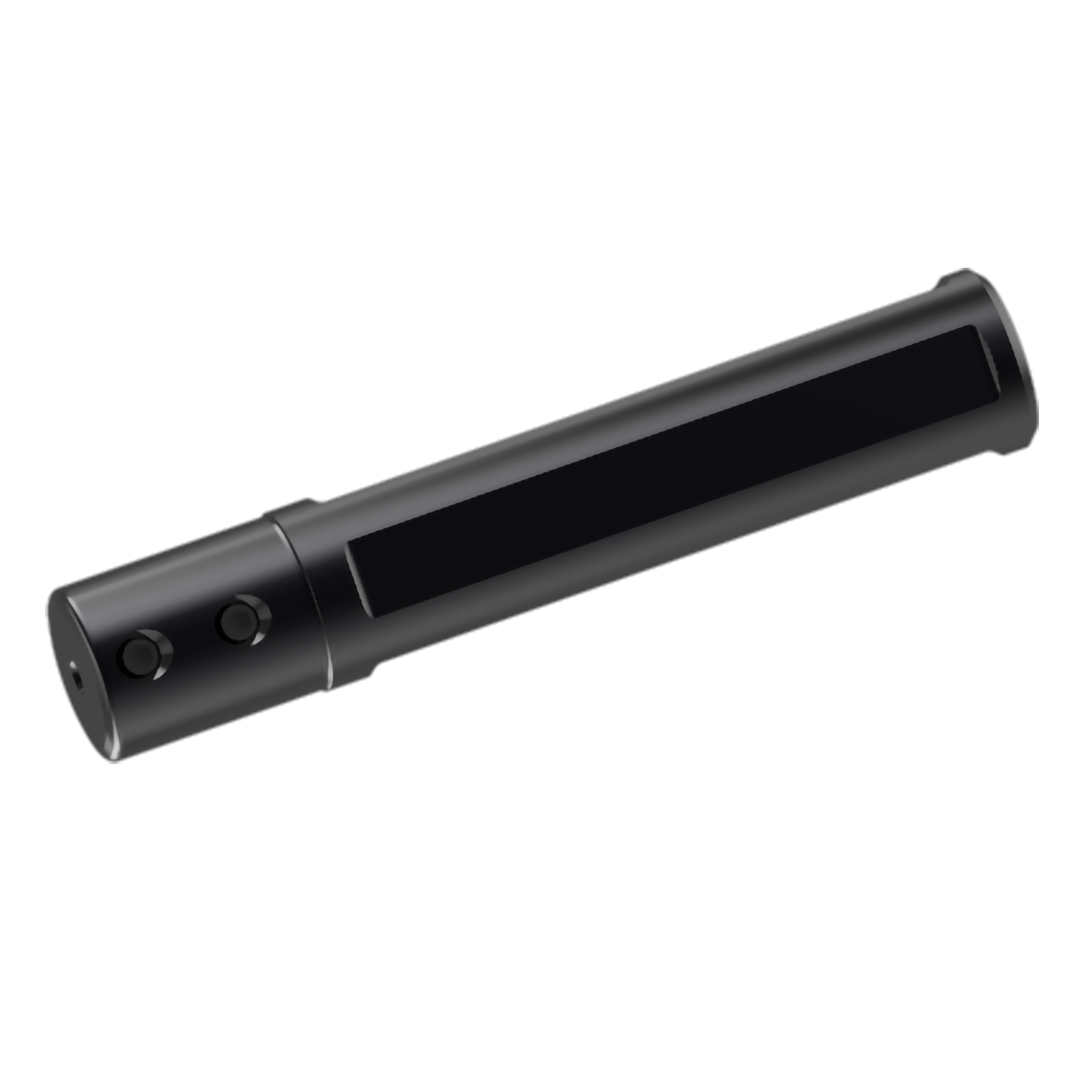

Boring Bars

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：23605268

EAN Code： 4994196860592

ANSI：SLV160085025N

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)

Product Details

Stock: Inventory maintained.
DCONMS: 16
DCONWS: 2.5
H: 14.4
B: 14.4
LF: 85
BD: 15.5
S10: 4.5
S11: 9
LPR: 20
D2: 8.3
CSP: -
