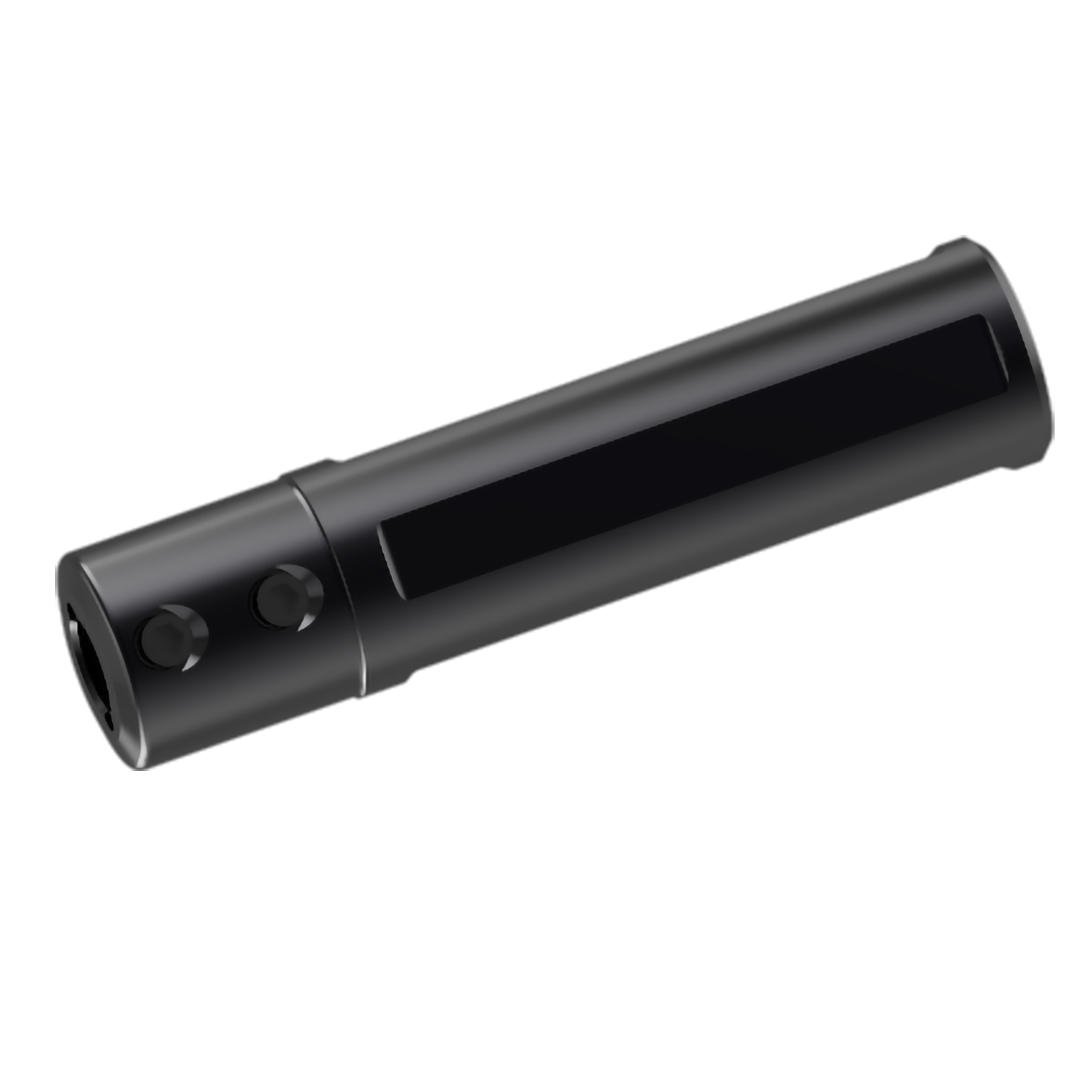

SLV190080080A - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

Boring Bars

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：23838963

EAN Code： 4994196887889

ANSI：SLV190080080A

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)

Product Details

Stock: Inventory maintained.
DCONMS: 19.05
DCONWS: 8
H: 17.8
B: 17.8
LF: 80
BD: 18.5
S10: 5
S11: 10
LPR: 20
CNT: RC1/8
