New chipbreaker geometry end mills

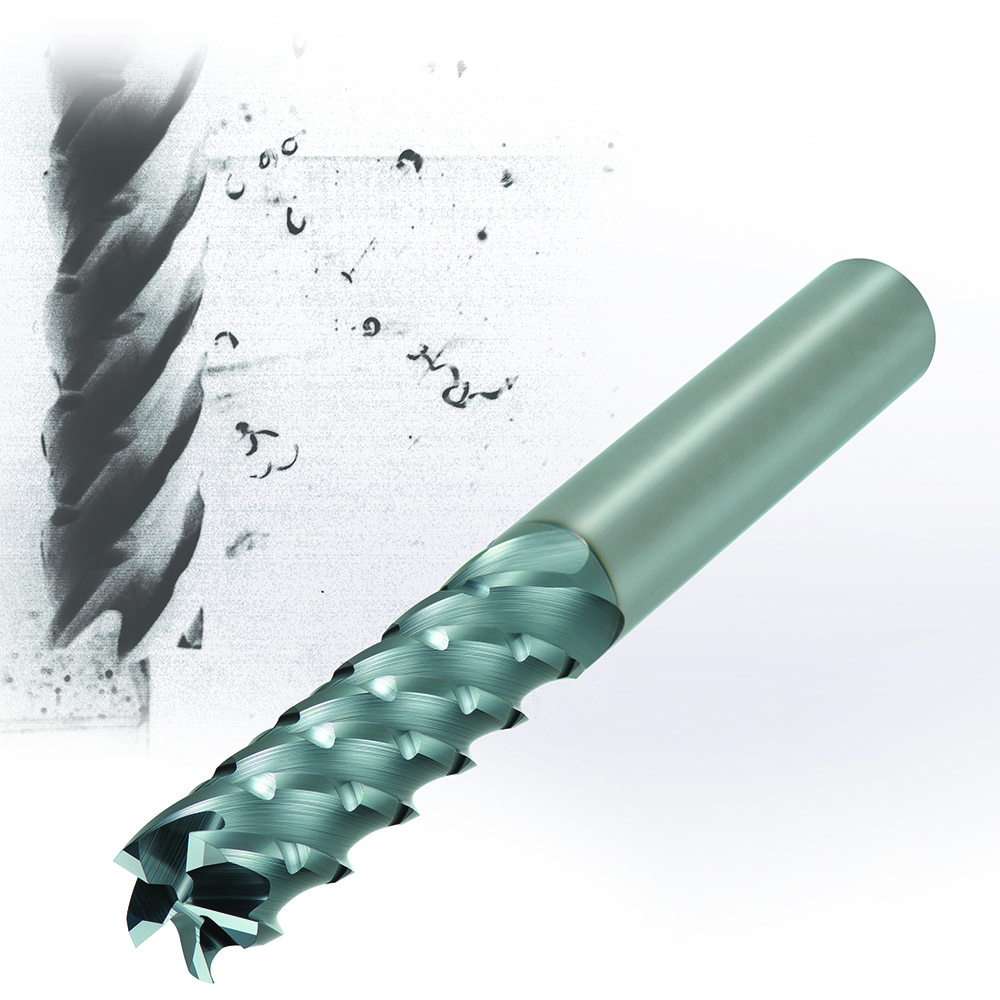

The new VQ-CS range of chipbreaker end mills includes medium and long cut length types named VQJCS and VQLCS. They have been designed for specialised roughing applications on heat resistant super alloys. The main features of these new end mills are the special flutes that have notches to provide an effective chip breaking function. The 5 flutes used on each diameter features a rigid cross-sectional geometry to provide excellent chip evacuation, this makes the VQCS end mills ideal for trochoidal machining.

Benefits Technology Availability

Benefits

Reliability and performance for difficult-to-cut material applications

Reliability and performance for difficult-to-cut material applications

  • Notch chipbreaker flute geometry that reduces cutting forces.
  • Increased reliability provided by a rigid cross sectional shape.
  • Newly developed (Al,Cr)N coating and Zero-μ surface treatment provides excellent wear resistance for long tool life.
  • Wide range of materials can be machined: HRSA, hardened stainless steels, carbon and alloy steels, plus copper and copper alloys.

Technology

5 technologies bring a new level of reliability

  1. Special chipbreaker flute geometry
  2. Irregular pitch flutes
  3. Micro clearance angle of the cutting edge
  4. Unique end cutting edge geometry
  5. New (Al,Cr)N coating and Zero-μ surface treatment
5 technologies bring a new level of reliability

Availability

Wide choice of diameters

Wide choice of diameters

  • VQJCS - (LF)
    Ø6 length 70, Ø8 length 80
    Ø10 length 90, Ø12 length 100
    Ø16 length 110, Ø20 length 125
  • VQLCS - (LF)
    Ø6 length 70, Ø8 length 90
    Ø10 length 100, Ø12 length 110
